18: P ULSE O UTPUT I NSTRUCTIONS

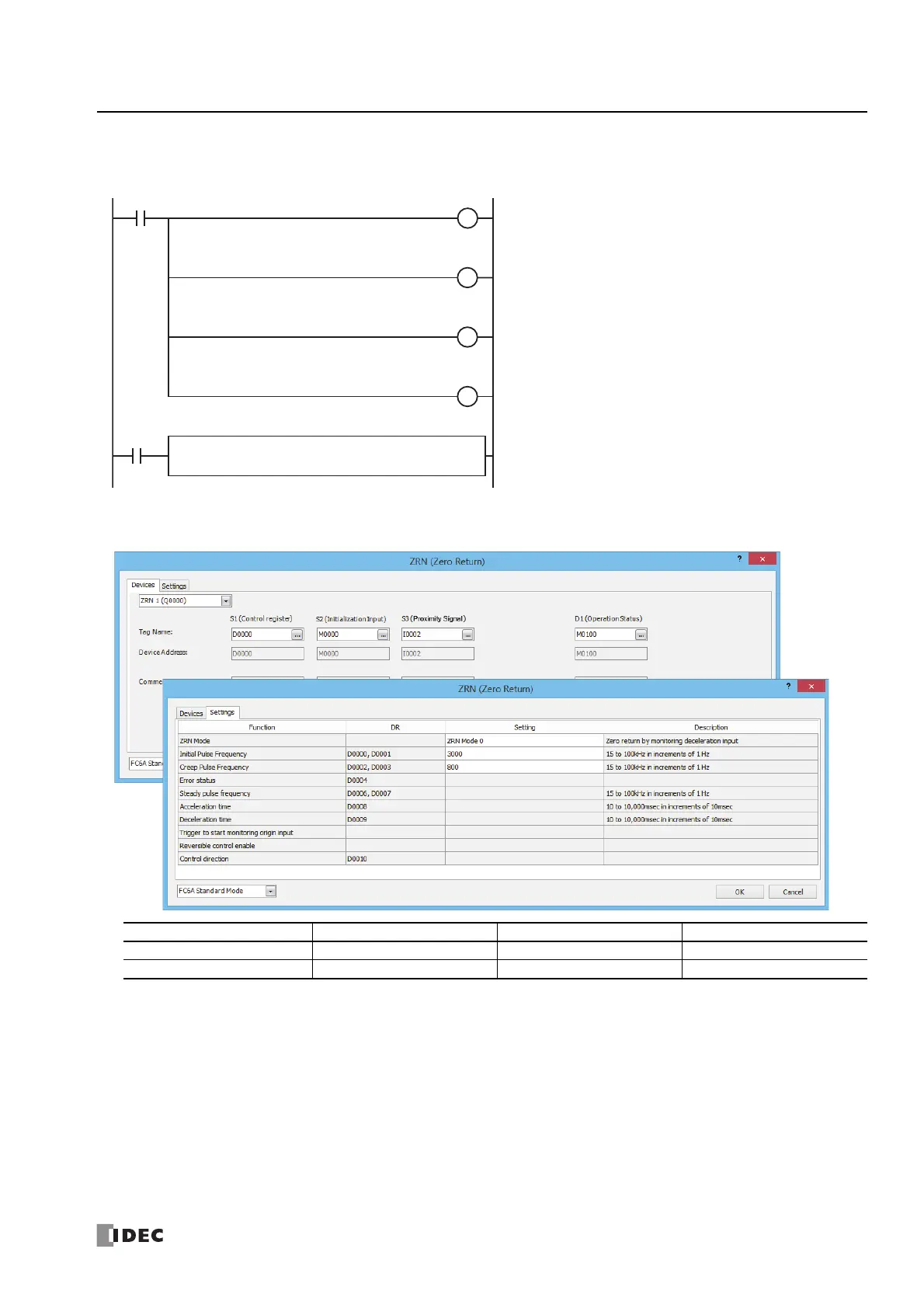

Example:
To perform a zero return operation with proximity signal I2, initial pulse frequency 3 kHz, and creep pulse frequency 800 Hz
Setting
Function Device AddressPreset Value Details
Initial pulse frequency D0000, D0001 3000 3,000 Hz
Creep pulse frequency D0002, D0003 800 800 Hz
M0000
M0100
R
M0101
R
M0102
R
M8120
I0001
D1
M0100
S3
I0002
ZRN
1
S1
D0000
S1
M0000
S4 D2
Pulse output ON (M0100) off
Pulse output complete (M0101) off
When the ZRN1 instruction input turns on, pulse
output starts
Turn on initialization input (M0000)
Pulse output status (M0102) off
