FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726 18-53
18: P ULSE O UTPUT I NSTRUCTIONS

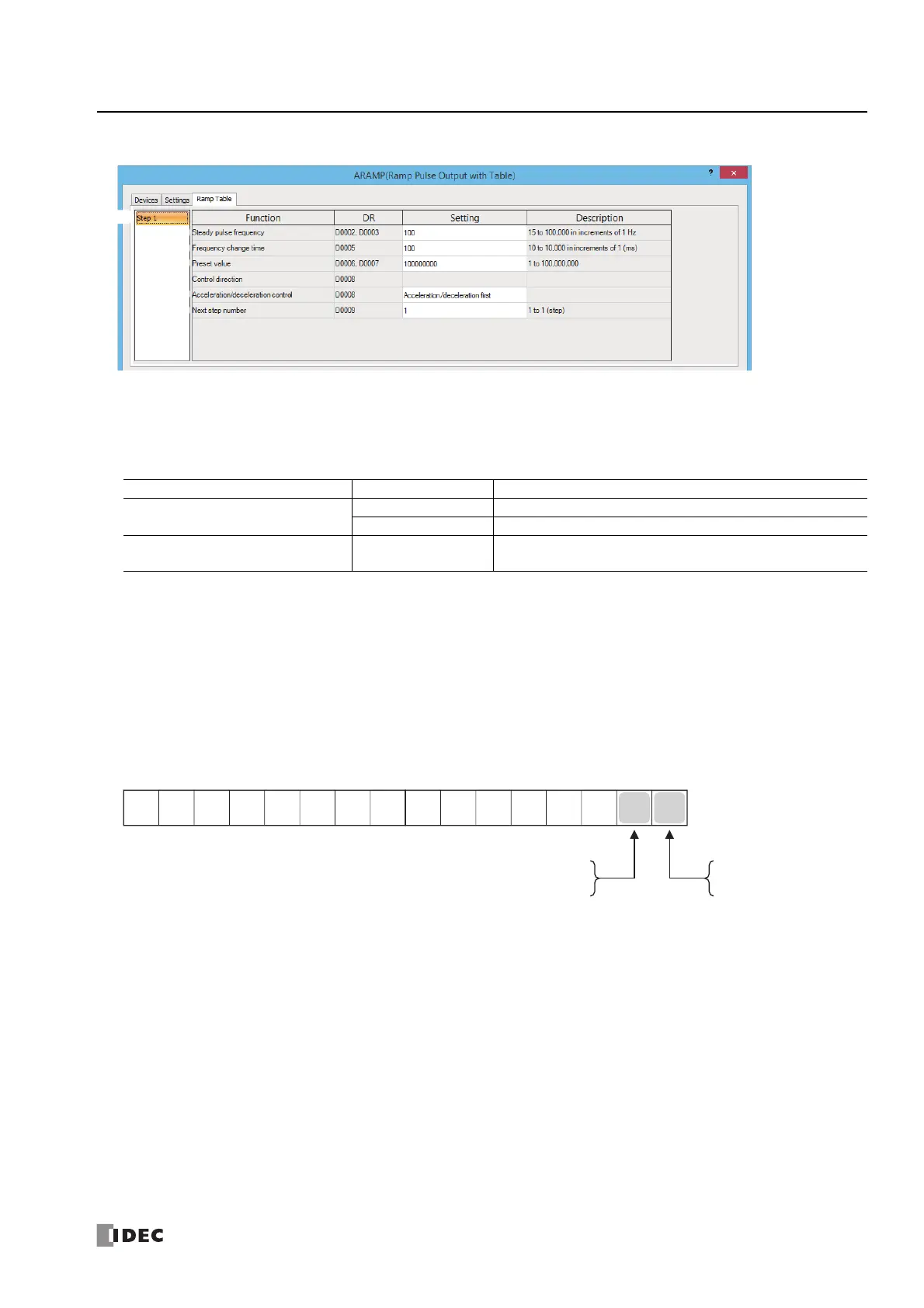

■ Ramp Table tab
12. Step numbers
This option selects the step number to configure. The output frequency error is ±5%.
13. Steady pulse frequency
This setting specifies the frequency at the steady output state before or after changing the frequency.
14. Frequency change time
This setting specifies the time to change the pulses.
Set this value in the range of 10 to 10,000 (increments of 1 ms).
The first digit of the setting is handled as zero. For example, if 144 is entered, the set value is handled as 140 ms.
15. Preset value
This setting configures the number of pulses to output from 1 to 100,000,000.
16. Step options
This setting configures the step direction and the execution timing of the change in the pulses.
Control direction
When reversible control is enabled, store 0 in this data register for forward operation and store 1 in this data register for reverse
operation.
CPU Module Type Instruction Steady Pulse Frequency
All-in-One CPU module
ARAMP1, ARAMP2 Set this value in the range of 15 to 100,000 (increments of 1 Hz).
ARAMP3, ARAMP4 Set this value in the range of 15 to 5,000 (increments of 1 Hz).
CAN J1939 All-in-One CPU module/Plus
CPU module
ARAMP1 to ARAMP4 Set this value in the range of 15 to 100,000 (increments of 1 Hz).
13.
14.
15.
16.
17.
12.
0 : Before
1 : After
0 : Forward
1 : Reverse
Step directionTiming of change
1514131211109876543210
Bit Bit Bit Bit
