18: P ULSE O UTPUT I NSTRUCTIONS

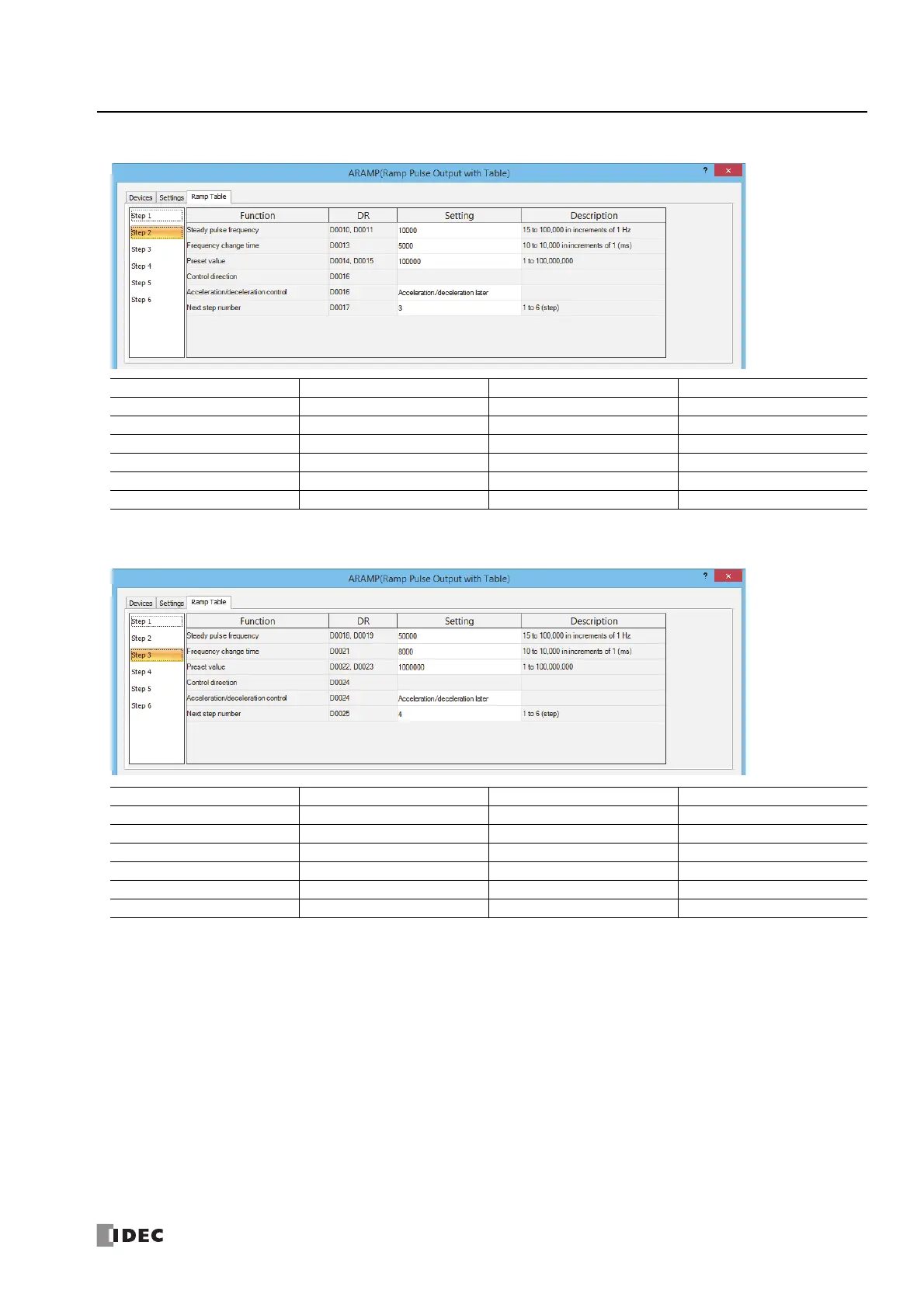

Step 2 settings
Step 3 settings
Function Device Address Setting Value Details
Steady pulse frequency D0010, D0011 10000 10,000 Hz
Frequency change time D0013 5000 5,000 ms
Preset value D0014, D0015 100000 Preset value=100,000
Control direction D0016 — —
Acceleration/deceleration control D0016 Acceleration/deceleration later After=2
Next step number D0017 3 Step 3
Function Device Address Setting Value Details
Steady pulse frequency D0018, D0019 50000 50,000 Hz
Frequency change time D0021 8000 8,000 ms
Preset value D0022, D0023 1000000 Preset value=1,000,000
Control direction D0024 — —
Acceleration/deceleration control D0024 Acceleration/deceleration later After=2
Next step number D0025 4 Step 4
