FC9Y-B1726 2-37
2: D
EVICES
It is 0 when no SD memory card has been inserted or if it is not recognized.
■ D8251: Read SD Memory Card Free Capacity
This register indicates the free capacity of the SD memory card in megabytes.
It is 0 when no SD memory card has been inserted or if it is not recognized.
■ D8254: SD Memory Card Download/Upload Execution Information
Information about the SD memory card download/upload that was executed.
For details, see Chapter 11 "SD Memory Card" in the "FC6A Series MICROSmart User’s Manual".
■ D8255: SD Memory Card Download/Upload Execution Status
The status of the SD memory card download/upload that was executed.
For details, see Chapter 11 "SD Memory Card" in the "FC6A Series MICROSmart User’s Manual".
■ D8260: Recipe Block Number
The recipe block number to read or write using special internal relays.
All channels for the specified block number are applicable.
■ D8261: Recipe Execution Block Number
The recipe block number of the recipe that was executed.
This is updated when the recipe block starts, and the status is retained when completed.
■ D8262: Recipe Execution Channel No.
The channel number of the recipe that was executed.
This is updated when the channel processing starts, and the status is retained when completed.
■ D8263: Recipe Execution Operation
Information about the operation of the recipe that was executed.
For details on recipes, see Chapter 11 "Recipe Function" in the "FC6A Series MICROSmart User’s Manual".
■ D8264: Recipe Execution Status
The status of the recipe that was executed.
For details on recipes, see Chapter 11 "Recipe Function" in the "FC6A Series MICROSmart User’s Manual".
■ D8265: Recipe Execution Error Information
Error information about the recipe that was executed.
For details on recipes, see Chapter 11 "Recipe Function" in the "FC6A Series MICROSmart User’s Manual".
■ D8278, D8279, D8760, D8761: Communication Mode Information (Client Connection) (Connection 1 to 16)
D8278 = Indicates the communication mode of connections 1 through 4.
D8279 = Indicates the communication mode of connections 5 through 8.
D8760 = Indicates the communication mode of connections 9 through 12.
D8761 = Indicates the communication mode of connections 13 through 16.

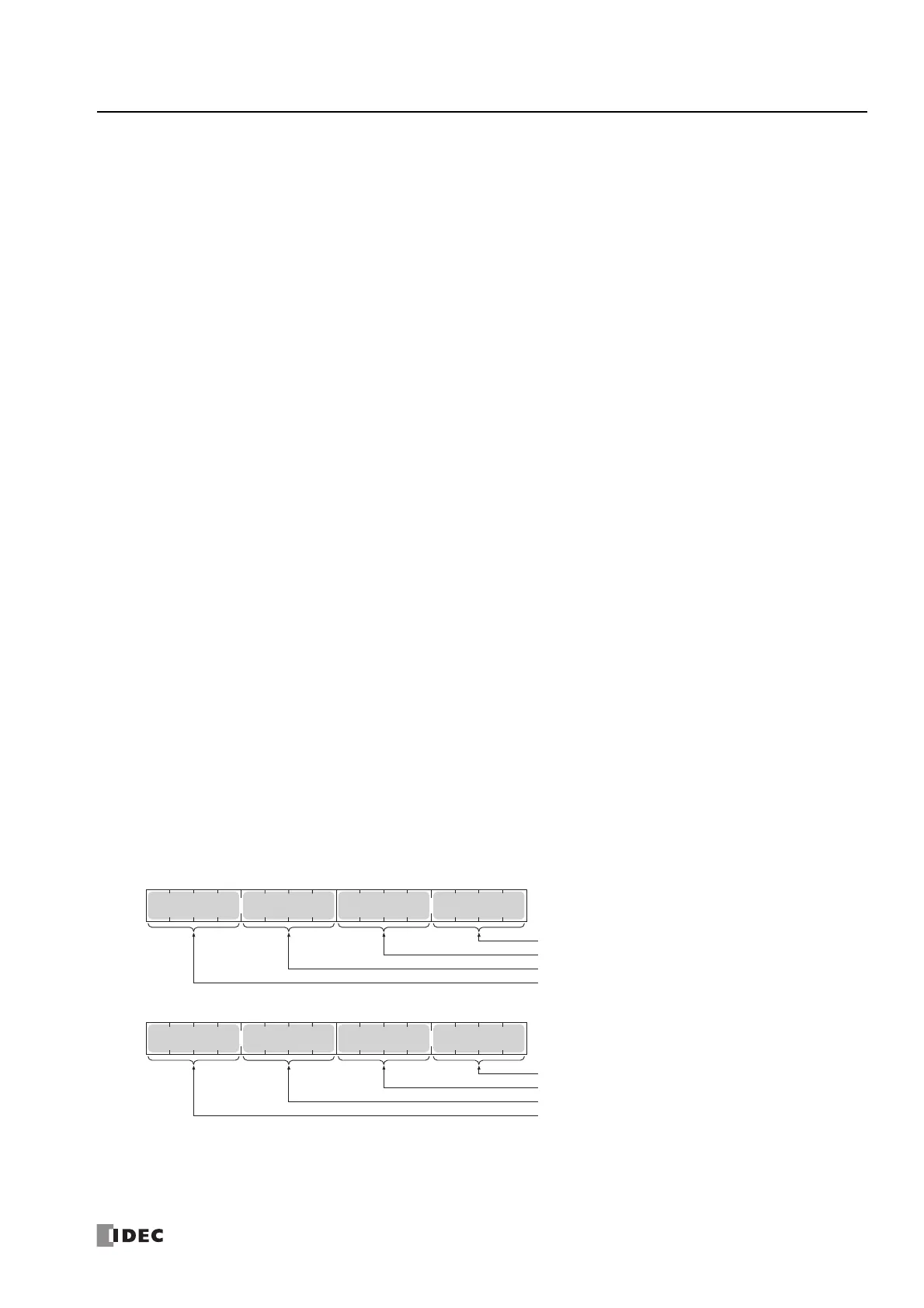

The allocation of connections in the device (bit assignment) is as follows.
Bit
15
Bit
0
Bit
7
Bit
8
Connection 1
Connection 2
Connection 3
Connection 4
D8278
Bit
15
Bit
0
Bit
7
Bit
8
Connection 5
Connection 6
Connection 7
Connection 8
D8279
