21

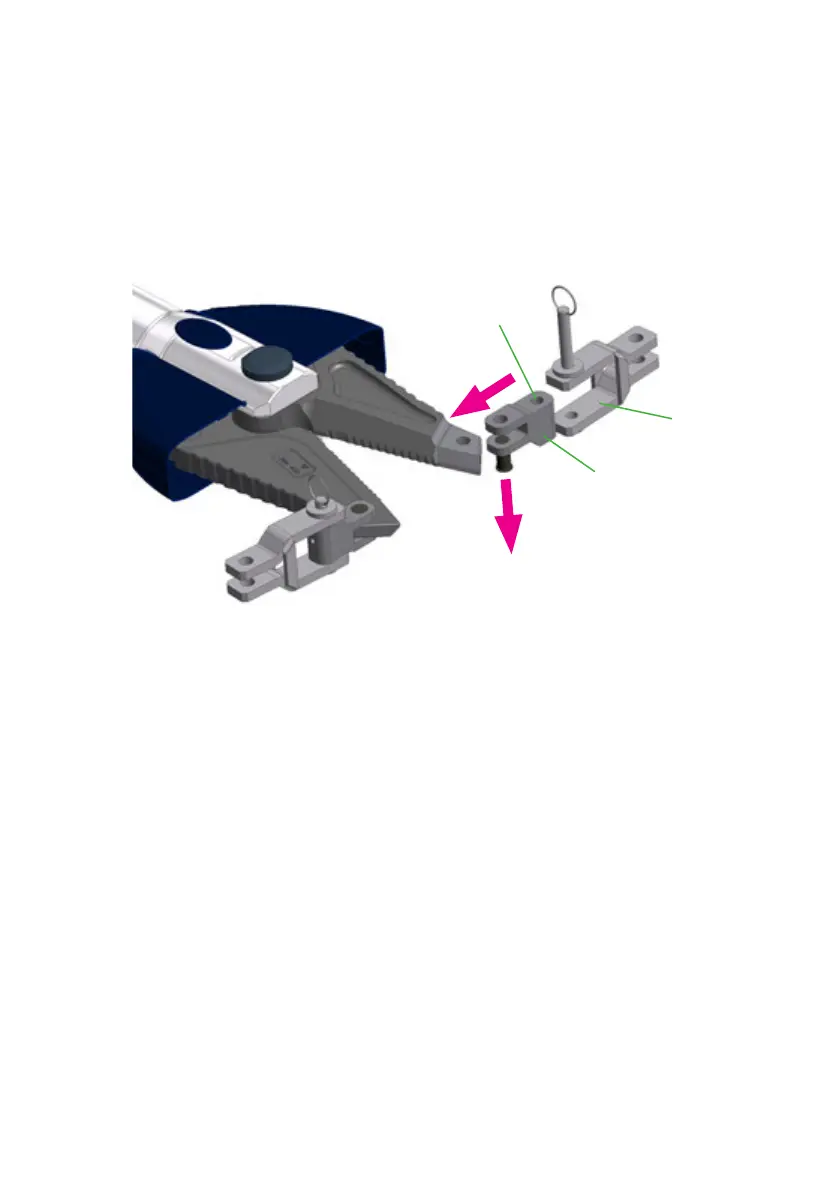

Pulling with SC 757 E2
TousetheSC757E2forpulling,thespreadertipmustrstberemoved(see6.2).
Thepullingattachment“A”isthenmounted.
Firstpullouttheboltofthepullingattachmentuptothelimitstop,slipthepullingattachment
ontothearmandpushintheboltcompletelyuntilitengages(alsoseeSection6.2,“Removing
andattachingtheSpreaderTip”)inthisregard.
Thematchingchainlock “C” can then bexedtohole “B” of the pullingattachment(see
separateoperatinginstructionsforchainlock).
2.
1.
A
C
B
