CP-D80 User Manual
7
Chapter 2 Installation & Usage
2.1 Media Loading
2.1.1 Loading the Ribbon

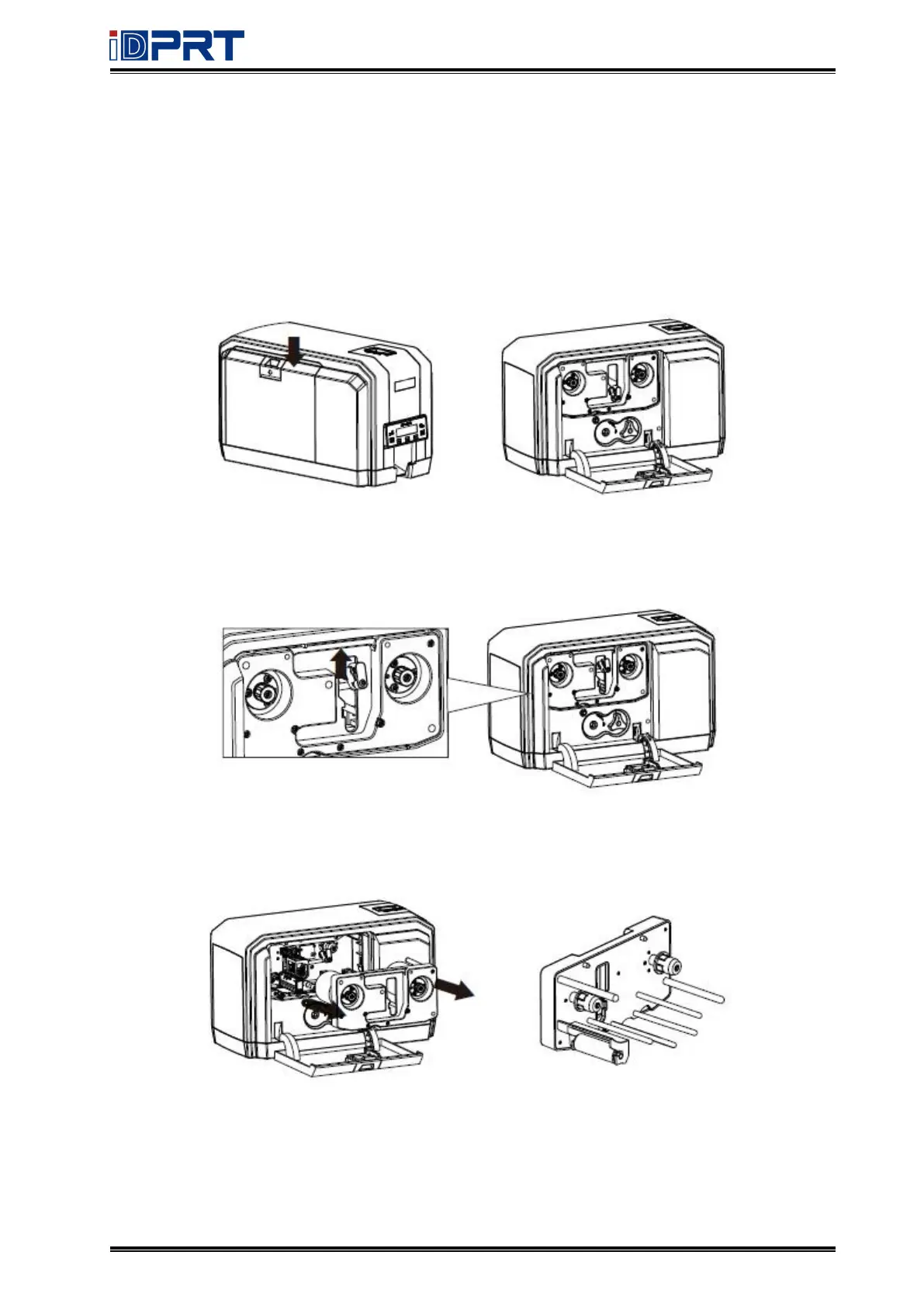

1.Place the printer on a table and press the latch button manually to open the ribbon cover.
2.After opening the ribbon cover, lift the ribbon latch lever to release the ribbon bracket group.
3.Manually remove the ribbon bracket group.
