IDS NXT rio User Manual

2021-04-13 11
IDS NXT: Setup IDS NXT rio

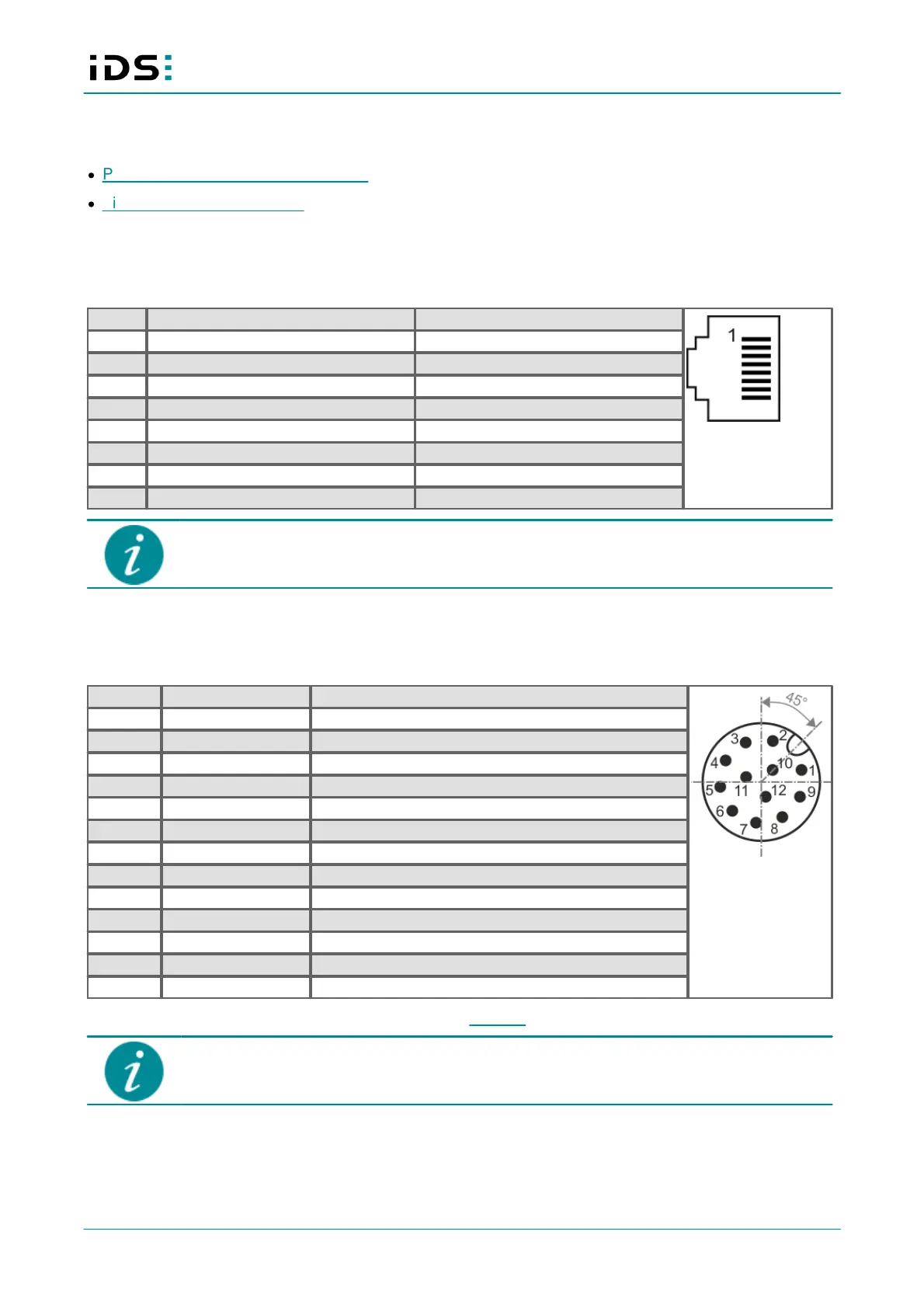

6 Electrial specifications
· Pin assignment GigE connector (RJ45)
· Pin assignment I/O connector
6.1 Pin assignment GigE connector (RJ45)
8-pin RJ45 socket
Pin
Designation 100BASE-TX
Designation 1000BASE-T
Fig. 2: RJ45
socket, camera
rear view
1
Tx+
Bl_DA+
2
Tx-
Bl_DA-
3
Rx+
Bl_DB+
4
Bl_DC+
5
Bl_DC-
6
Rx-
Bl_DB-
7
Bl_DD+
8
Bl_DD-
The RJ45 socket of the IDS NXT rio complies with the IEC 60603-7 standard.
6.2 Pin assignment I/O connector
12-pin M12 connector (Attend 216A-12MSR)
Pin
Signal
Description
Fig. 3: I/O connector,
camera rear view
1
VBUS
Power supply: 12-24 V DC +20 %
2
VBUS GND
Reference level (ground) for power supply and RS-232
3
Opto IN (0)
Trigger input with optocoupler
4
Opto IN (1)
Input 1 with optocoupler
5
Opto IN (COM)
Reference level for all Opto IN
6
Opto OUT (COM)
Reference level for all Opto OUT
7
Opto OUT (1)
Output 1 with optocoupler
8
Opto OUT (2)
Output 2 with optocoupler
9
RS232 (RxD)
Serial interface
10
RS232 (TxD)
Serial interface
11
Opto IN (2)
Input 2 with optocoupler
12
Opto OUT (0)
Flash output with optocoupler
Shield
Shield
Shield
You can check the color assignment of the cable on the Website directly at the specific accessory item.
The maximum length of the I/O cable is 30 m. The cable must be shielded.
