※ iTDC Quick Installation Guide
Mar.11.2010
1. iTDC/iTDC-SR INSTALLATION LAYOUT
1.1 LAYOUT TO CONTROL 2 DOORS
The figure below is iTDC/iTDC-SR installation layout to control 2doors.
You can install readers instead of No.8, Exit Buttons. In this case, connect each reader to reader port No.2 of
iTDC/iTDC-SR, reader port No.4 of iTDC/iTDC-SR.

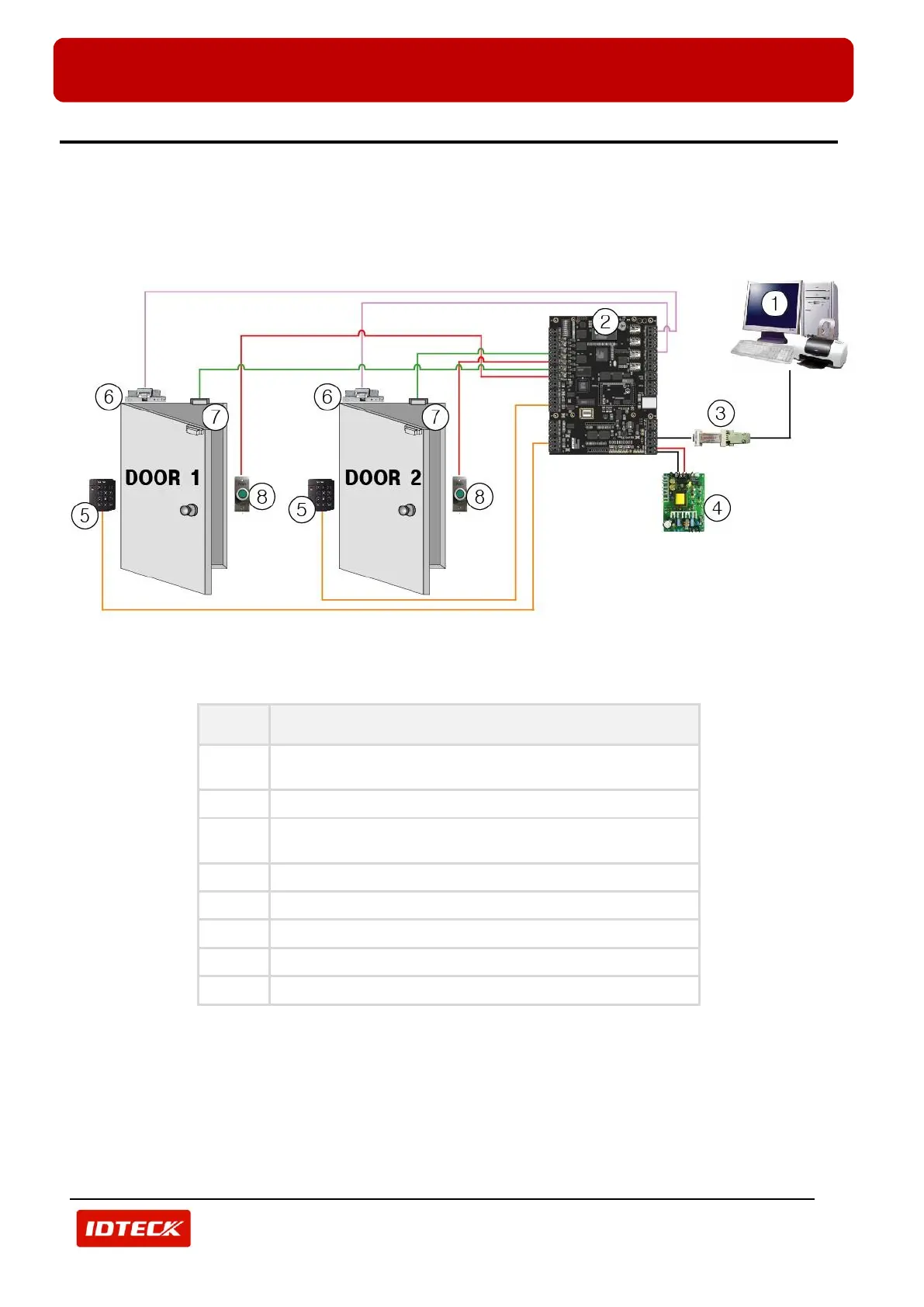

(Figure: iTDC/iTDC-SR Installation Layout to Control 2 Doors)
No
Code
①
PC for installing application software, STARWATCH
iTDC PRO I, II, STARWATCH STANDARD)
②
iTDC or iTDC-SR
③
RS232/RS422 Converter
or TCP/IP Module (IIM7100A)
④
Power
⑤
Reader
⑥
Door Lock
⑦
Door Contact
⑧
Exit Button
