IDTECK iTDC - Layout to Control 3 Doors

3
※ iTDC Quick Installation Guide
Mar.11.2010
1.2 LAYOUT TO CONTROL 3 DOORS
You have to attach EIO88 to control more than2 doors.

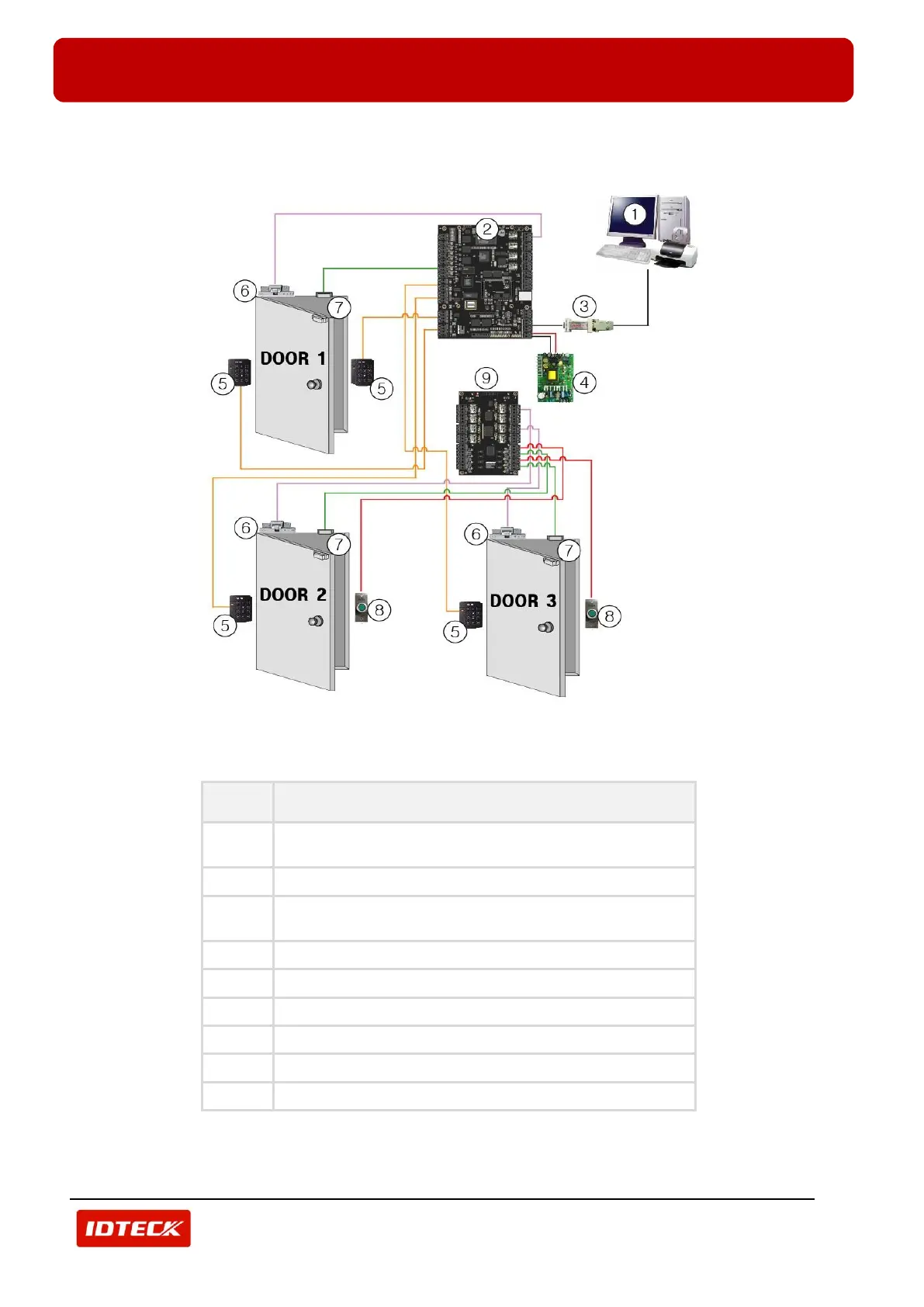

The figure below is iTDC/iTDC-SR installation layout to control 3 doors.
(Figure: iTDC/iTDC-SR Installation Layout to Control 3 Doors)
No
Code
①
PC for installing application software, STARWATCH
iTDC PRO I, II, STARWATCH STANDARD
②
iTDC or iTDC-SR
③
RS232/RS422 Converter
or TCP/IP Module (IIM7100A)
④
Power
⑤
Reader
⑥
Door Lock
⑦
Door Contact
⑧
Exit Button
⑨
EIO88
