4 Operation
The sensor is operated via the push-
buttons Pos. and Teach. To do so,
press the buttons with a blunt
object.
Sharp objects may damage
the buttons!
5 Programming

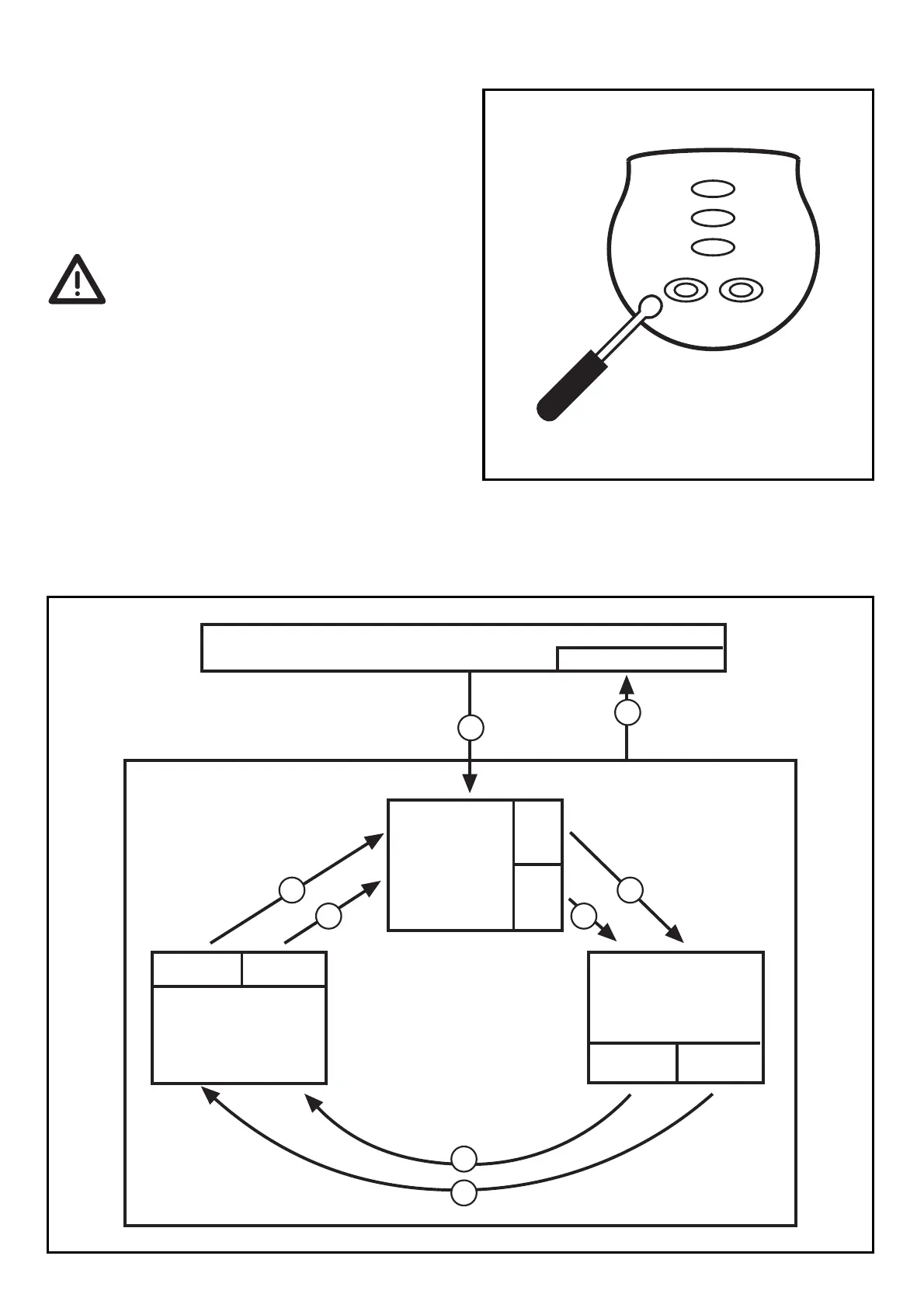

Programming overview
22
open
seat
close
Pos. Teach
P
>2s
P P
P
T
TT
P
>5s
Run Mode
Checking
align closed
position?
yes
no
yes
yes
no
no
align open
position?
align seat
position?
P: actuate Pos. button
T: actuate Teach button
Teach Mode
