8
Minimum distance between [ASP] and [AEP] = 25 % of the final value of the
measuring range (turn-down 1:4); for PI2799: 25 % of the measuring span�

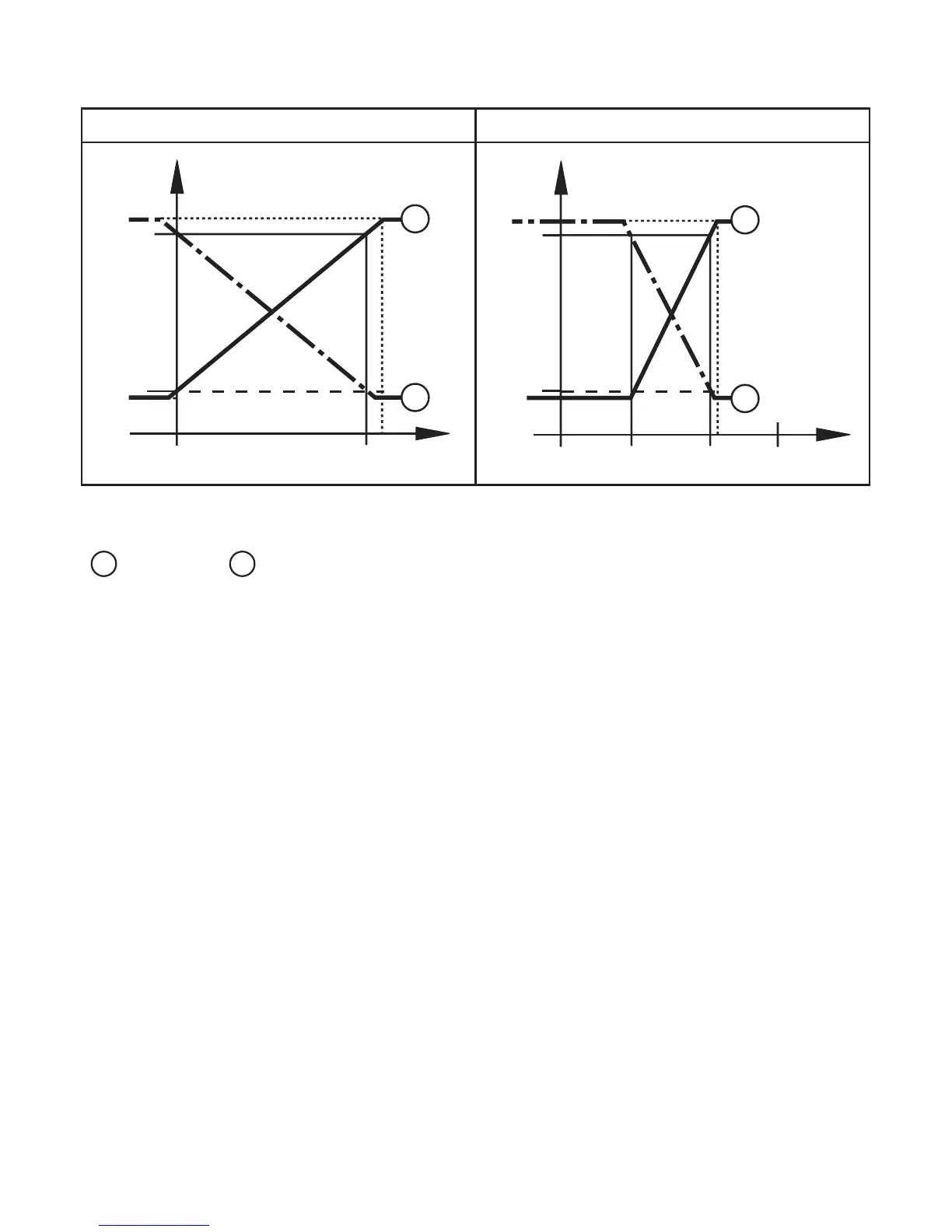

Factory setting Measuring range scaled
P = system pressure , MAW = initial value of the measuring range, MEW = final value of
the measuring range
1
: [OU2] = [I];
2
: [OU2] = [InEG]
In the set measuring range the output signal is between 4 and 20 mA ([OU2] = [I])
or between 20 and 4 mA ([OU2] = [InEG])�
It is also indicated:
• System pressure above the measuring range:
- Output signal > 20 mA at [OU2] = [I]�
- Output signal 4 to 3�8 mA at [OU2] = [InEG]�
• System pressure below the measuring range:
- Output signal 4 to 3�8 mA at [OU2] = [I]�
- Output signal > 20 mA at [OU2] = [InEG]�
