2. Build and effect of the filter engine
2.1 Build
10
9
4
1 3 5 7 8
2 6
Pos. Label
1 Pre-filter (of knitted aluminium)
2 Ionisation device (complete)
3 Isolation for for ionisation device
4 Ionisation wire (of tungsten)
5 Drain (no replacement part)
6 Collector (complete)
7 Insulation for collector
8 Post-filter (of knitted aluminium)
9 Motor 0,75 KW
10 Used air emitting mat for IFE 2000
2.1.1 Filtering device

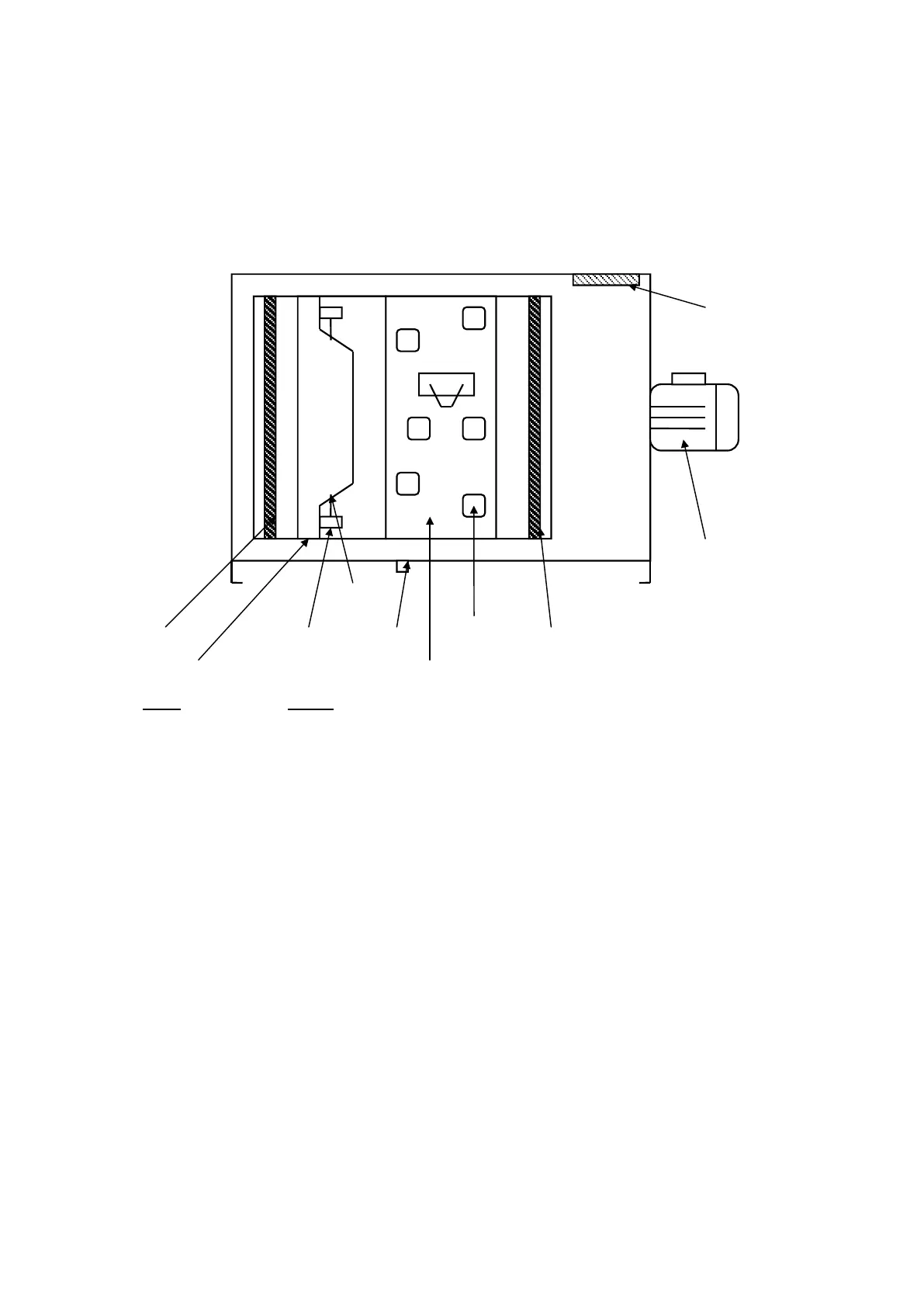

The IFE-electronical precipitation engine (Type IFE 2000) was built in compact
functional style. Its basic build is shown in the drawing.
