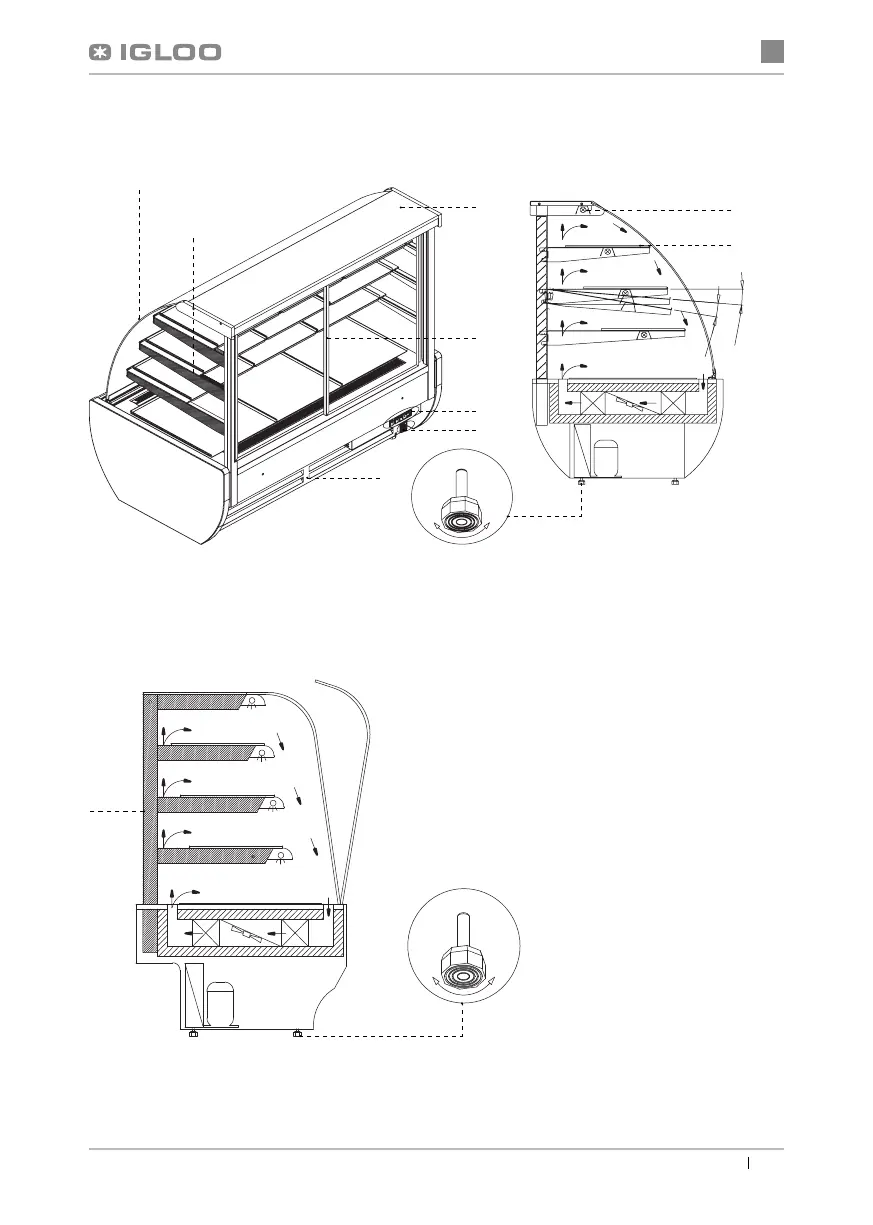

Fig.1 Construction of „Jamajka” device
1 – Upper shelf (little roof) – wooden or made of stainless steel,
depending on fi nishing option (only in Jamajka)
2 – Sliding doors (for display cabinets 1.3 and 0.9) or lifted doors
(0.6)
3 – Control panel (thermostat, switches)
4 – Data plate
5 – Wind brace (DO NOT BLOCK ventilation holes!!!)
6 – Inner frame (made of metal plates)
7 – Bended front glass, lifted
8 – Inner lighting
9 – Display glass shelf
10 – Inner frame (made of aluminium profi le)
11 – Feet – used to level the device
Fig.2 Construction of „Marta” device
5°
5°
1
10
8
11
11
9
6
7
2
3
4
5
