IHI 15VX - Overall Dimensions

7 – 3
SPECIFICATIONS
7

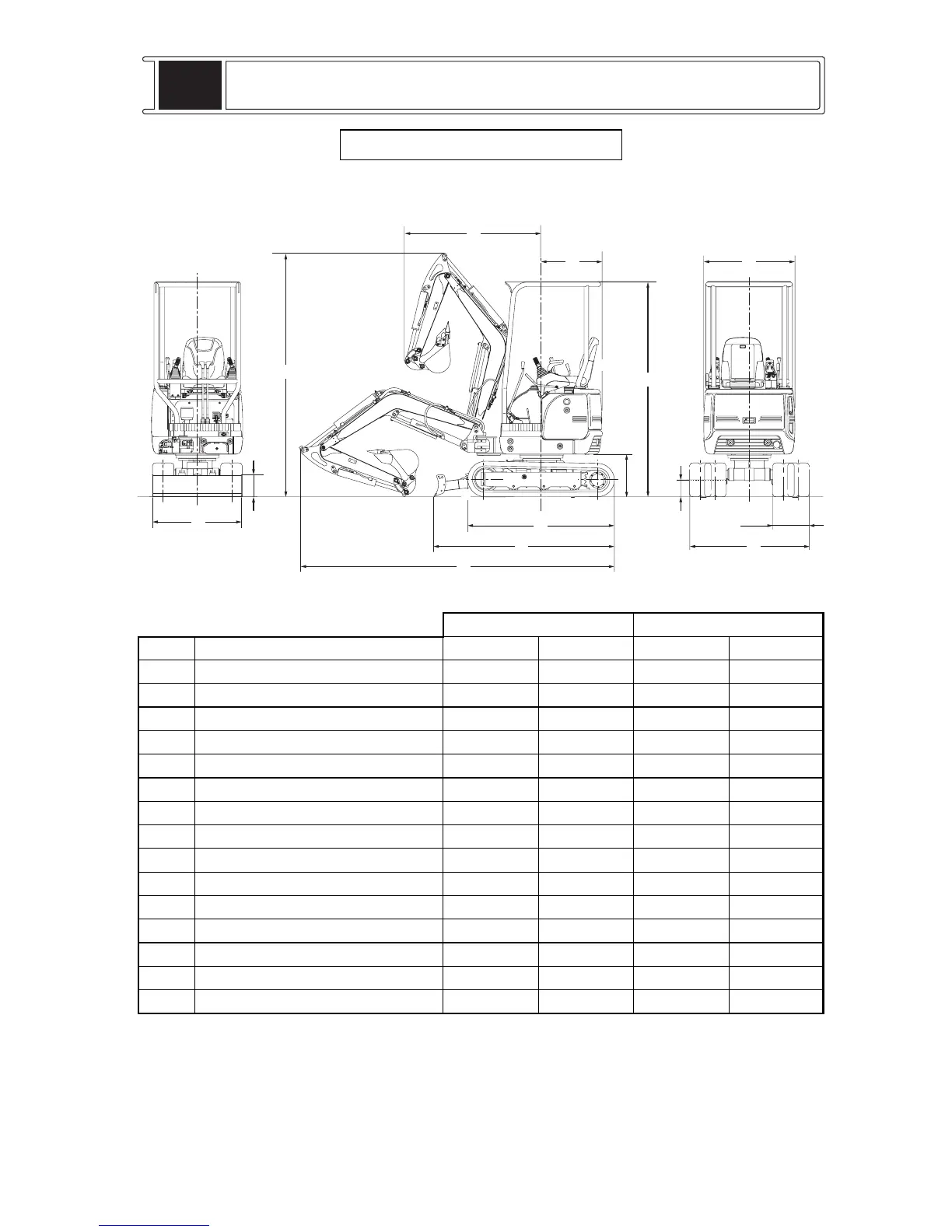

7-2 OVERALL DIMENSIONS
Unit: mm
STD ADD Weight
Codes Description Rubber shoe Steel shoe Rubber shoe Steel shoe
A Crawler shoe width 230 230 230 230
B Overall length of crawler 1570 1540 1570 1540
C Overall width of crawler 960~1280 960~1280 960~1280 960~1280
D Canopy 980 980 980 980
E Canopy 2280 2280 2280 2280
F Rear end swing radius 650 650 720 720
G Rear end ground clearance 460 460 460 460
H Mini. ground clearance 175 175 175 175
I Overall length of undercarriage 1930 1930 1930 1930
J Blade height 235 235 235 235
K Blade width 960 960 960 960
L Overall length Blade in front 3380 3380 3380 3380
Blade in rear 3750 3750 3750 3750
M Front end mini. radius at center 1490 1490 1490 1490
N Arm head clearance 2630 2630 2630 2630
J
A
H
G
M
F
E
C
B
I
L
N
J
K
D
