IHI 15VX - Working Renges

7 – 5
SPECIFICATIONS
7




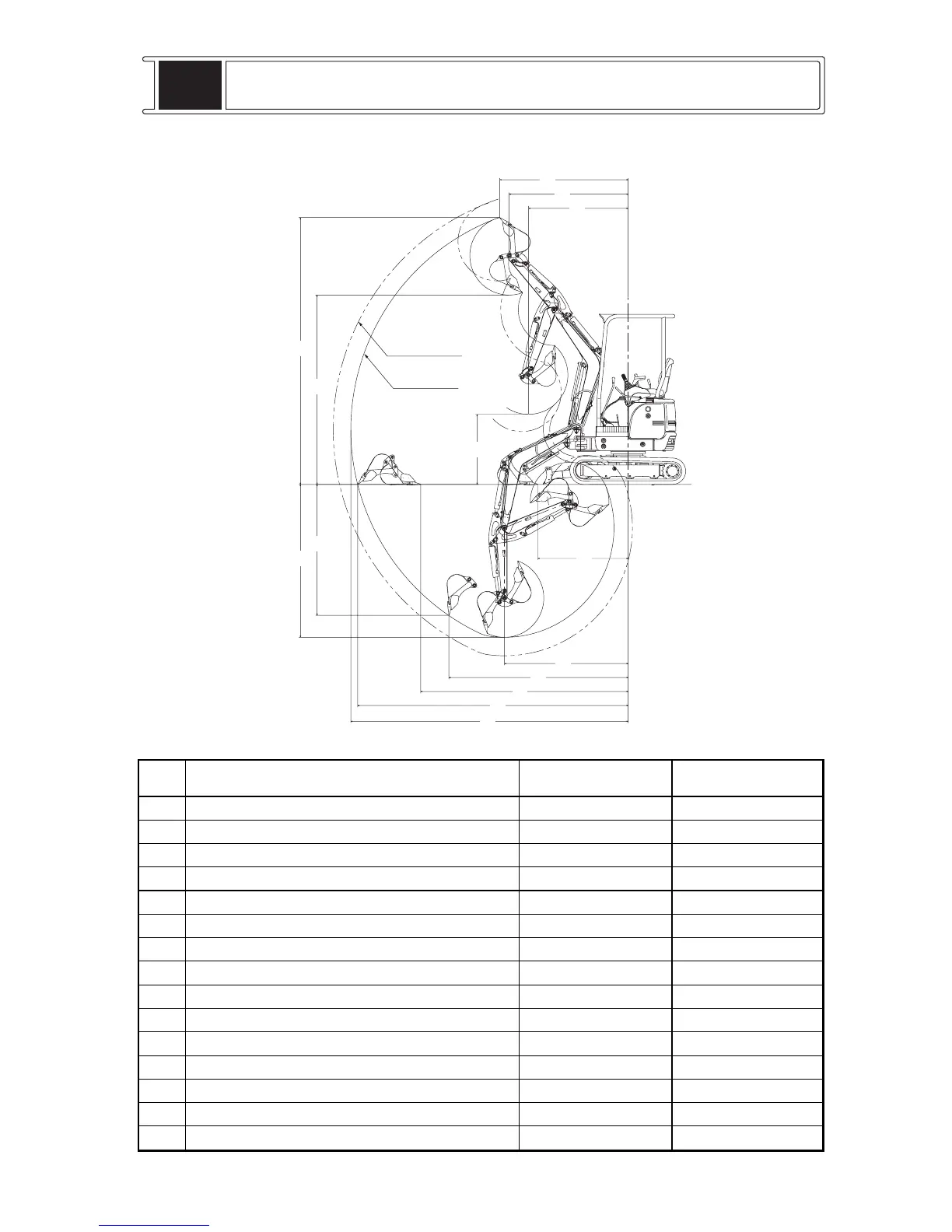

WORKING RANGE (BACK HOE)
E
G
K
C
A
B
N
L
D
M
F
H
J
I
Long arm
Std. arm
Unit: mm
Key Description Std. arm Long arm
Std. of bucket capacity (m3), ISO Heaped 0.044 0.033
A Max. digging radius 3760 3990
B Max. bucket outreach at ground level 3660 3910
C Max. digging depth(Not used blade) 2100 2350
D Radius of max. digging depth 1680 1680
E Max. digging height 3610 3810
F Radius of max. digging height 1740 1900
G Max. dumping height 2560 2760
H Radius of max. digging height 1610 1770
I Min. dumping height 950 720
J Radius of min. dumping height 1350 1440
K Max. vertical digging depth 1775 2010
L Radius of max. vertical digging depth 2430 2490
M Radius of min. digging ground level 1220 1120
N Max. clean-up radius at floor level 2810 3040
