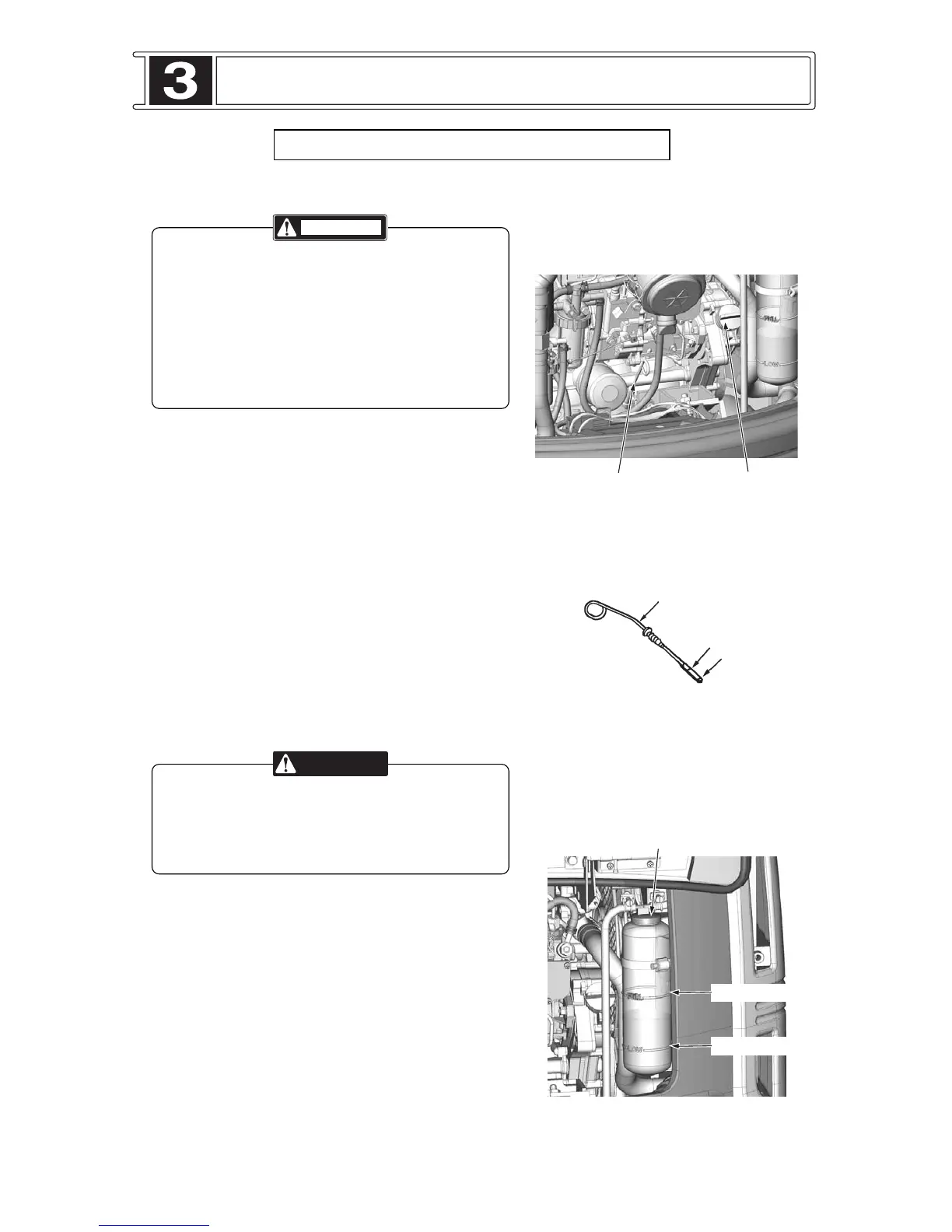

3-4 DAILY MAINTENANCE AND CHECKS
Check the Engine Oil Level
* Check the oil level with the engine stopped.
DO NOT check the oil level with engine
running.
* DO NOT overfill the crankcase to avoid
engine damaged. Engine damage can result.
* NEVER operate the engine when oil level is
above MAX or MIN marks.
1. Place the machine on level ground. Stop the
engine.
2. Remove the Oil level gauge
c
and wipe it
clean. Insert Oil level gauge
c
, then remove
it again to read actual oil level. Install Oil level
gauge
c
.
3. Maintain the oil level to the MAX mark on the
Oil level gauge
c
. Add oil if necessary.
4. Remove the oil fill plug
d
and add oil.
Clean and install the oil fill plug
c
.
5. Close the access door.
Check the Coolant Level
* Steam generated by hot fluid under pressure
in radiator can cause personal injury.
* Remove filler cap only when cool enough to
touch with bare hand.
1. Open the access door on the rear of the
machine.
2. Always check the coolant level in the reserve
tank. Maintain the coolant level between the
MAX and MIN marks on the reserve tank.
3. Remove the coolant fill cap
c
and add the
coolant if necessary.
4. If the reserve tank is empty, check the radiator
level with the engine stopped. Add coolant to
the radiator and the reserve tank.
5. Close the access door.
WARNING
CAUTION
Oil level gauge
Fill plug
Oil level gauge
MAX
MIN
Upper limit
Lower limit
Reserve tank level
Coolant fill cap
