MAINTENANCE
WHEN REQUIRED
REPLACE THE TEETH AND SIDE CUTTERS
* Personal injury or death can result from
bucket falling
* Block the bucket before changing bucket
tooth or side cutter.

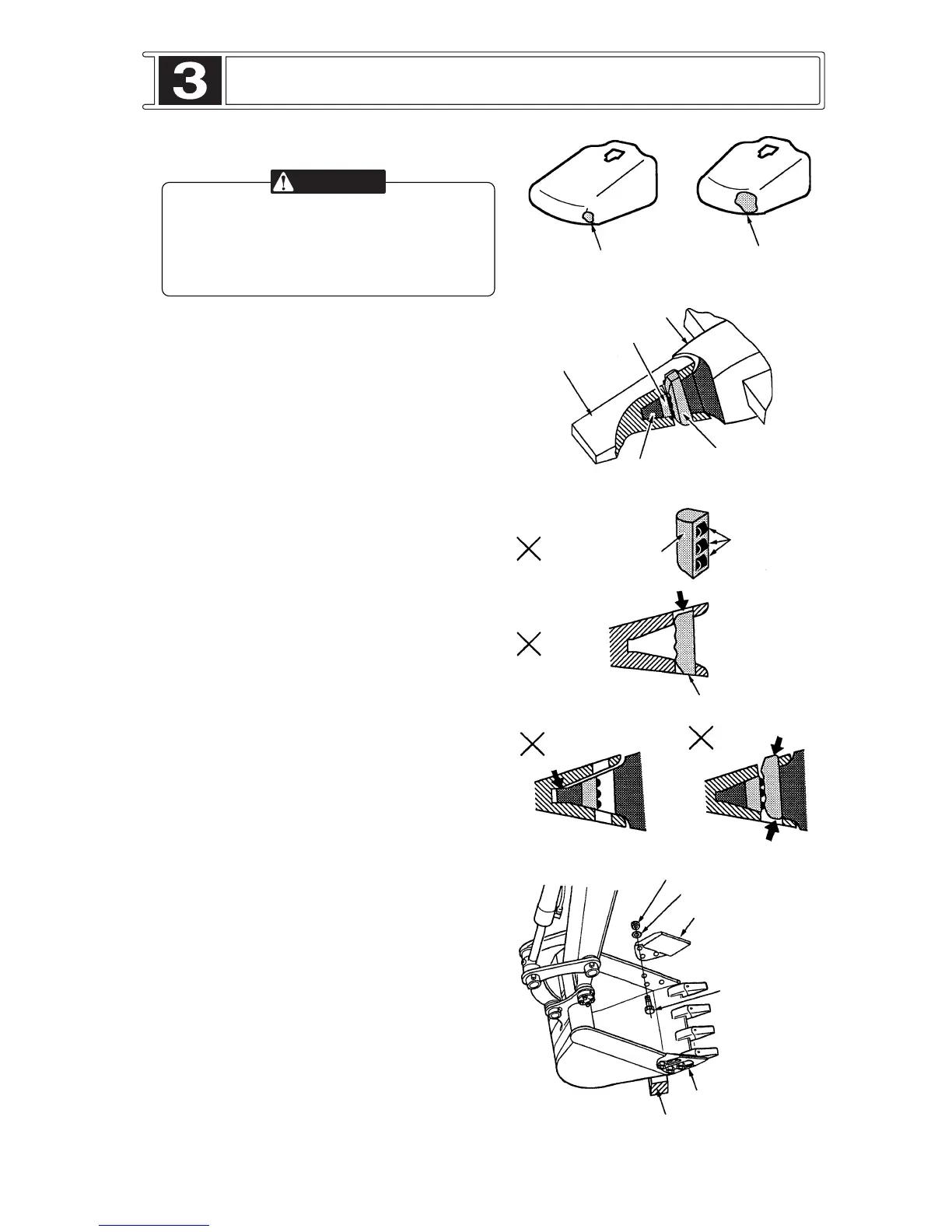

Replacement Period of Tooth
Replace the bucket tooth when a wear hole
appears.
Replacement of Tooth
1. Drive the lock pin from the worn tooth.
Remove the tooth.
2. CIean the adaptor and pin hole.
3. Install the new rubber pin into the tooth.
4. Install the new tooth over the adaptor.
5. Drive the lock pin through the tooth, until the
pin is flush with the tooth surface.
NOTICE:
After driving the lock pin, make sure the
lock pin fits snugly into the hole of the tooth.
Replacement of Side Cutters
1. Remove the mounting bolts and remove
the side cutters.
2. Clean the mounting surfaces. Install the
new side cutters.
WARNING
Change
Over use
Nose section
Tooth pin
Rubber pin lock
Adoptor
Tooth
Rubber
Wrong
Wrong
Wrong
Wrong
Tooth pin
Nut
Washer
Side cutter (R.H.)
Bolt
Side cutter (L.H.)
Block
