OPERATION

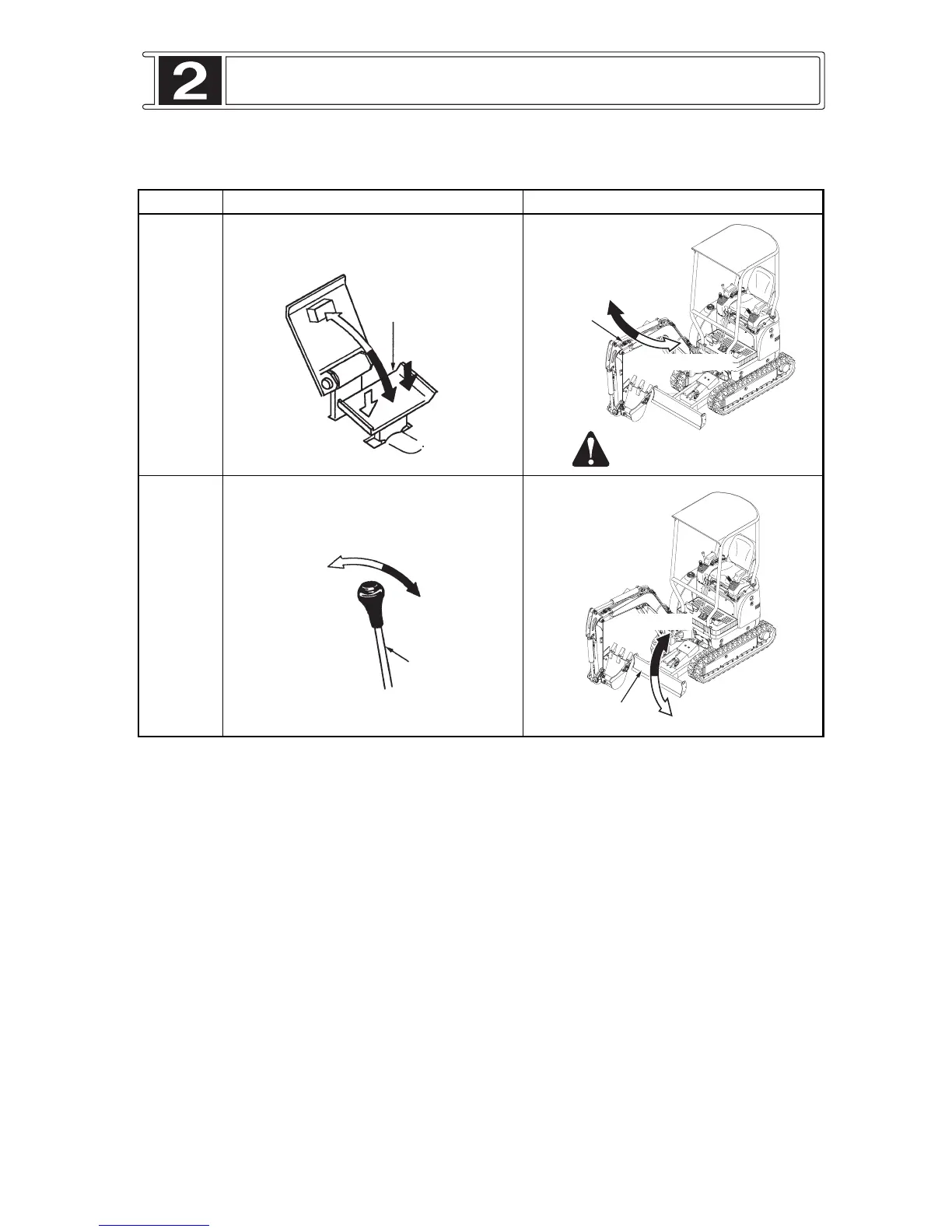

OPERATIONS DIRECTION OF LEVER DIRECTTON OF MACHINE
BOOM
SWING
BLADE

Swing R.H.

Swing L.H.
Boom swing
pedal
Unlocked
position
Locked
position

Raise

Lower
Blade leve
r

Swing R.H.
Boom
Always locked pedal
when is not in use.

Swing L.H.

Lower

Raise
Blade
