IHP.us.com
900861-00NC
2
Safety ........................................................................................2-3
Local Codes ................................................................................. 3
Installation Precautions ...........................................................4-6
Gas Line and Cross Ventilation Requirements ......................... 5
Hard piping and High Elevation ................................................ 6
Fireplace Specifications .............................................................. 7
Single-Sided Fireplace Application ........................................8-10
Dimensions; Combustible Clearances; Mantel Clearances ........ 9
Framing with Metal Studs ....................................................... 10
See-Through Fireplace Application ......................................11-14
Converting Fireplace to a See-Through Model ........................ 12
Dimensions; Combustible Clearances; Mantel Clearances ...... 13
Framing with Metal Studs ....................................................... 14
LED Lighting Installation ......................................................15-22
Wiring Diagrams ...................................................................20-22
Final Preparation ..................................................................23-27
Installing Pilot Covers in Burner Pan ....................................... 23
Installation of Media in Burner Pan/Trough ............................. 24
Windshield Location and Pilot Operation ................................ 25
Installation of Hoods and Windshield ...................................... 26
Flame Height ........................................................................... 27
Operation .................................................................................... 28
Lighting Instructions ............................................................... 28
Product Reference Information ............................................... 28
Fireplace Maintenance .............................................................. 29
Troubleshooting ....................................................................30-31
Optional Accessories ................................................................ 31
Gas Conversion Instructions ................................................. 32-35
Replacement Parts ................................................................36-38
Warranty .................................................................................... 39
This fireplace ships from the factory as a single-sided
fireplace with the option of removing the back panels
to convert it into a see-through fireplace. Your spe-
cific application, single-sided or see-through will
determine how you install and frame this fireplace.
Carefully read through this manual to understand.

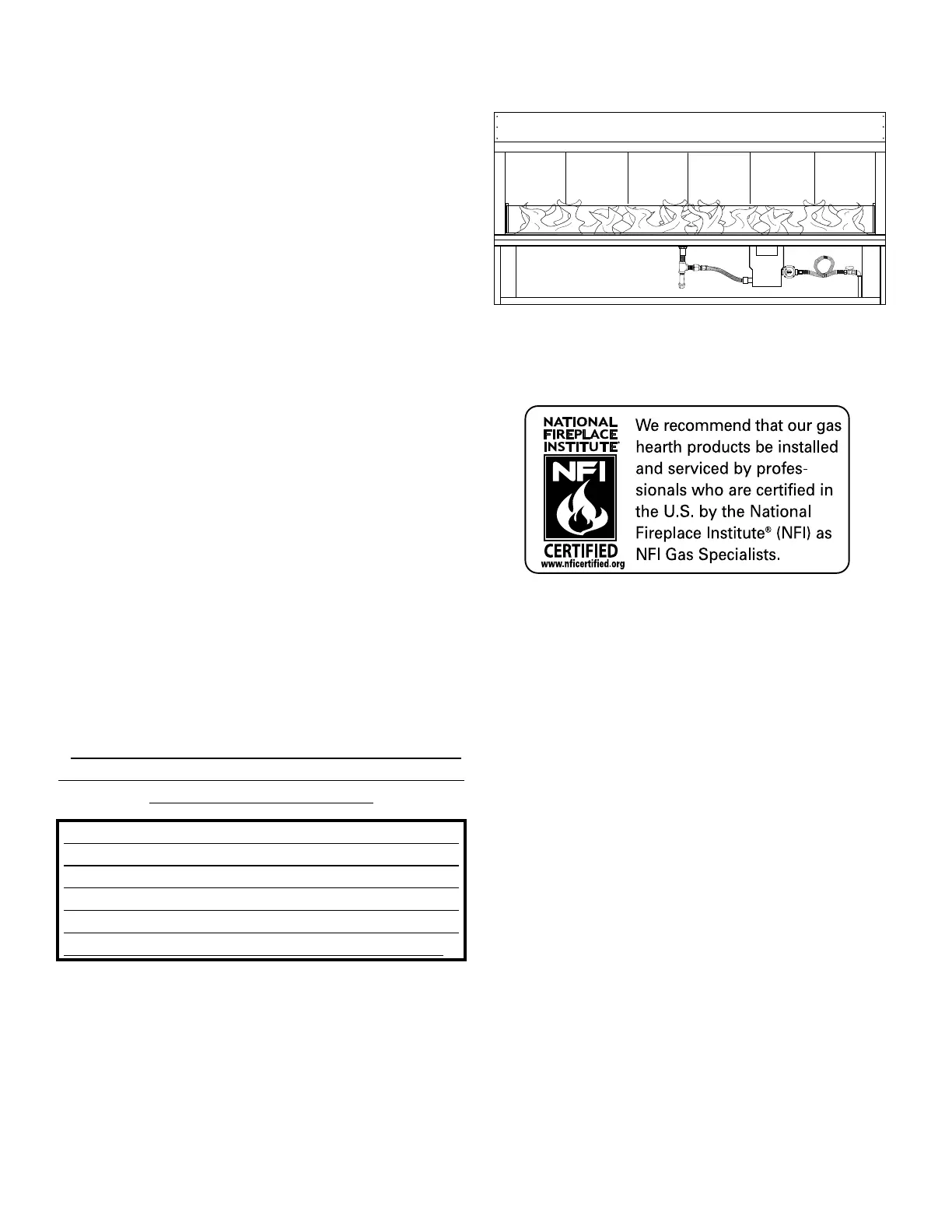

DESCRIPTION: These Outdoor fireplace models come ready to op-
erate with HI/LO capabilities once installation is complete. They use
an electronic ignition that runs off a 7.5VDC adaptor. In addition,
each fireplace is equipped with LED lighting as a standard feature.
Each model can operate the LED lights with or without the fireplace
operating. The LED lights run off of a 12-volt DCV adaptor.
These are radiant fireplaces only and do not have a fan option.
Do not burn real wood or other combustible materials in these
fireplaces. Use only approved media. All models are shipped as
Outdoor Decorative Gas Fireplaces
Models Barcelona Lights Series and VRE4600 Series
TABLE OF CONTENTS
SAFETY
Natural Gas but can be converted to Propane Gas by ordering the
optional conversion kit (see Page 31). There is no top or rear vent-
ing required for this fireplace, however, it is mandatory to provide
adequate clearances according to this manual and cross ventila-
tion in the enclosure. The burner assembly is removable for service.
NEVER obstruct the front opening(s) of the fireplace.
ALWAYS USE CAUTION WHEN USING THE FIREPLACE
Extra caution should be taken when lighting a fireplace when heavy
rains, high humidity and moisture are present. Light the fireplace
and leave the area while the heat dissipates any moisture out of the
media. We strongly recommend that during this drying out time
that you monitor the fireplace from a distance. This drying out pe-
riod should be no less than 30 minutes. Continue monitoring the
flame from a safe distance to ensure that all popping has ceased
before fully enjoying the fire.
1. This appliance is configured from the factory only as Natural
gas. This appliance can be converted to LP gas.
2. Do not place Propane (LP) supply tanks inside any structure.
Locate propane tanks outdoors.
IT IS IMPORTANT TO READ THROUGH THE ENTIRE
INSTALLATION MANUAL BEFORE BEGINNING INSTAL-
LATION OF THIS FIREPLACE!!
