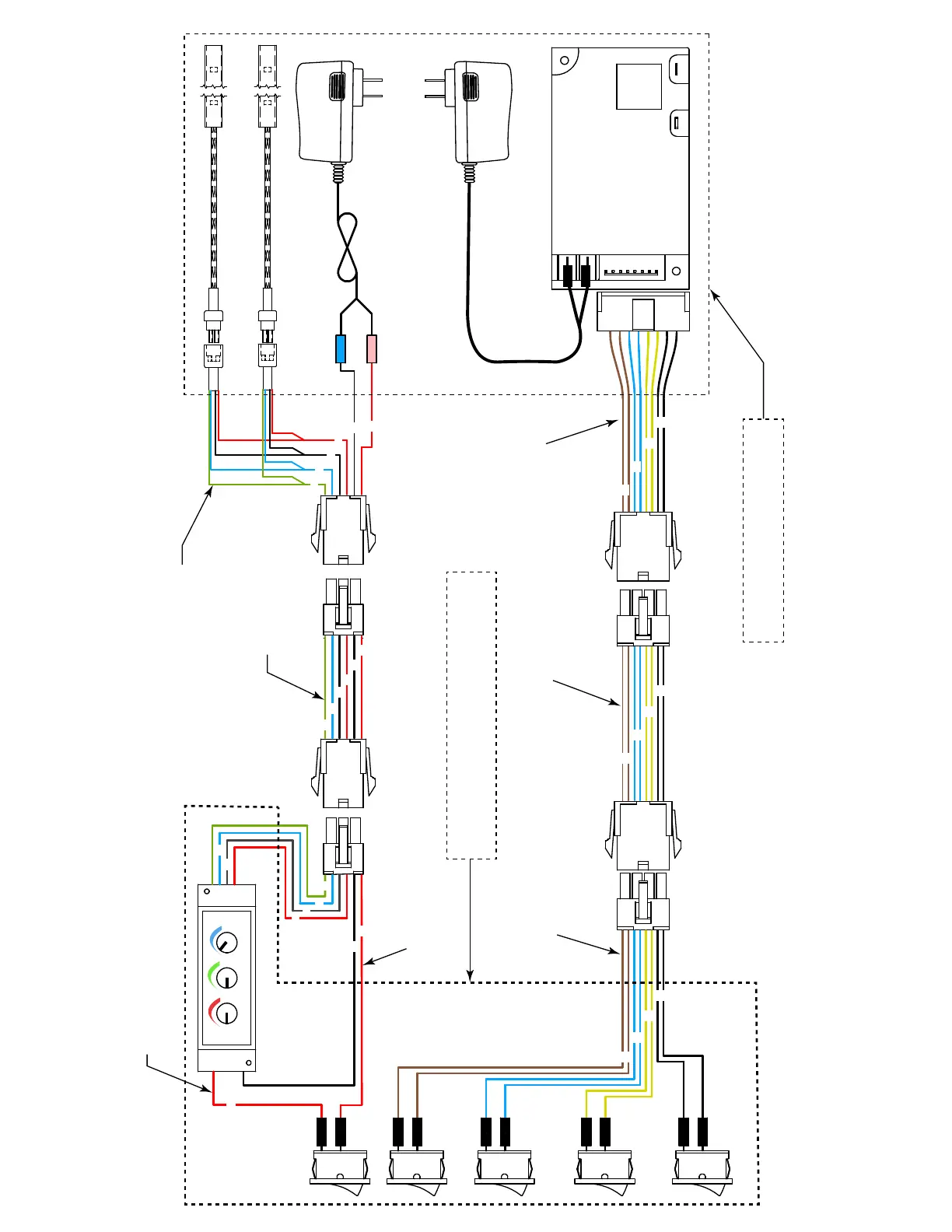

Figure 28 - This wiring diagram shows the LED circuit in relationship to the IPI gas valve control system. Each is independent of the other.
LED LIGHTING INSTALLATION
Continued
Cat. No. F3501
Cat. No. F3499
Cat. No. F3501
INPUT OUTPUT
RGB DIMMER
LEARN
ON/OFF
HI/LOW
IPI/ CONT PILOT
RED TERMINAL
BLUE TERMINAL
LED ON/OFF
LED LIGHT STRIPS
Cat. No. F3481
VCS-ECOMOD
(Under glass panels)
(Inside valve box)
REPRESENTS COMPONENTS INSIDE
LED CONTROLLER BOX
(12VDC adaptor inside a
weatherproof box)
REPRESENTS COMPONENTS
INSIDE FIREPLACE
Cat. No. F3482
(7.5VCD adaptor powers
gas valve system)
Brown
Blue
Yellow
Black
Red
BR
BL
B
Y
BR
BL
B
Y
BL
B
R
G
R
B
R
B
BL
G
BL
G
B
B
R
R
BL
G
B
B
R
R
BR
BL
B
Y
R
ID# 77113
(order RGB control box
[F3483] if needed)
ID# 77114
(order RGB control box
[F3483] if needed)
ID# 77115
(order RGB control box
[F3483] if needed)
ID# 77112
(order RGB control box
[F3483] if needed)
Wiring Color Code B = Black BL = Blue BR = Brown
G = Green R = Red Y = Yellow
900861-00NC
