FINAL PREPARATION
Continued

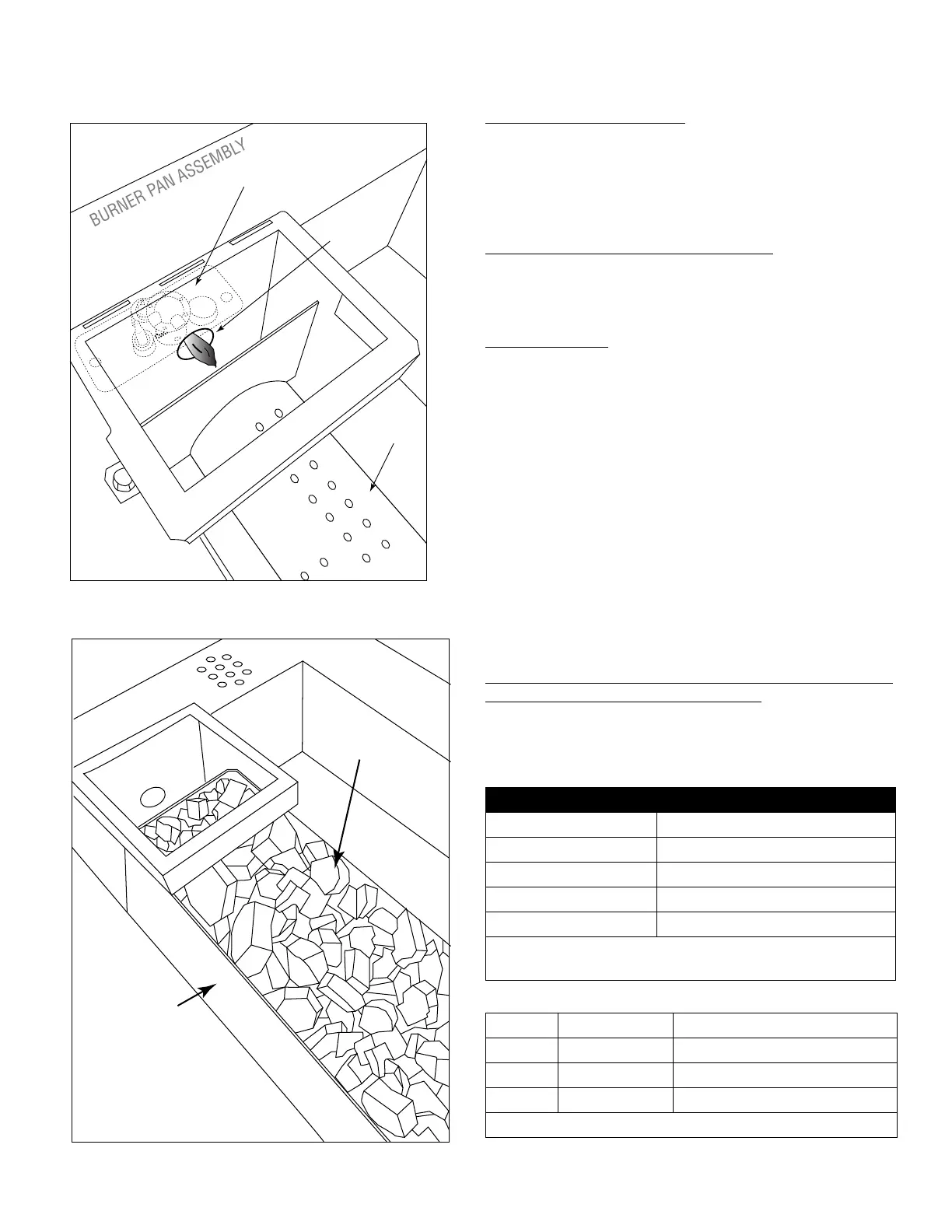

Figure 33 - Installing media into the fireplace.
Large Broken Glass
Model # Burner pan & Trough
36”
Qty 3 (5# bags)
48”
Qty 4 (5# bags)
60”
Qty 5 (5# bags)
72”
Qty 5 (5# bags)
Table 7 - Media specifications. Requires 1/2” - 3/4” fireglass
(burner pan media amount does not include the trough)
Pilot
(Hidden Underneath)
Burner
Tube
Ignition
Hole
PILOT OPERATION & TEST FIRE
The pilot assembly is located at the end of the burner hidden under-
neath a pilot cover. Ensure the pilot flame is passing through the
ignition hole in the burner pan for proper ignition. Use the Figure
32 as a guide.
Test fire the fireplace before installing media. At the same time
this is a good time to double check for any gas leaks or electrical
connections before finalizing the installation by installing the glass
media.
INSTALLING MEDIA
Open the media box and install the glass media as shown is Figures
33 and 34. Place media fireglass into the trough area first as shown
in Figure 33. Use the remaining media to fill the burner pan equally
on both sides. After filling the trough reinstall the mesh hood over-
top of the pilot area.
Keep media in burner pan the same level as the trough to allow the
burner area to appear as one complete burner pan.
IMPORTANT: Media can only be placed in the trough and burner
pan area. No media is to be place into the shaded area shown in
Figure 35.
CAUTION: Ensure there is no media in the ignition hole area. The
burner tube gas ignites in this area to light the fireplace. Media in
this area could cause delayed ignition.
The fireplace requires 1/2”-3/4” large broken fireglass to be in-
stalled into the burner trough and burner pan. Use the table below
to assist in determining the amount of media needed for your spe-
cific model.
Figure 32 - Proper pilot flame through ignition hole
1/2” to 3/4”
Glass Media
Burner Trough
Cat. No. Model Description
F3507 GLO-BLACK Black Onyx Glass Media, 5lb
F3508 GLO-CRYSTAL Diamond Crystal Glass Media, 5lb
F3509 GLO-LT BLUE Sapphire Blue Glass Media, 5lb
Table 8 - Glass Media
