Iiyama ProLite TH5565MIS User Manual

ENGLISH
10 BEFORE YOU OPERATE THE MONITOR

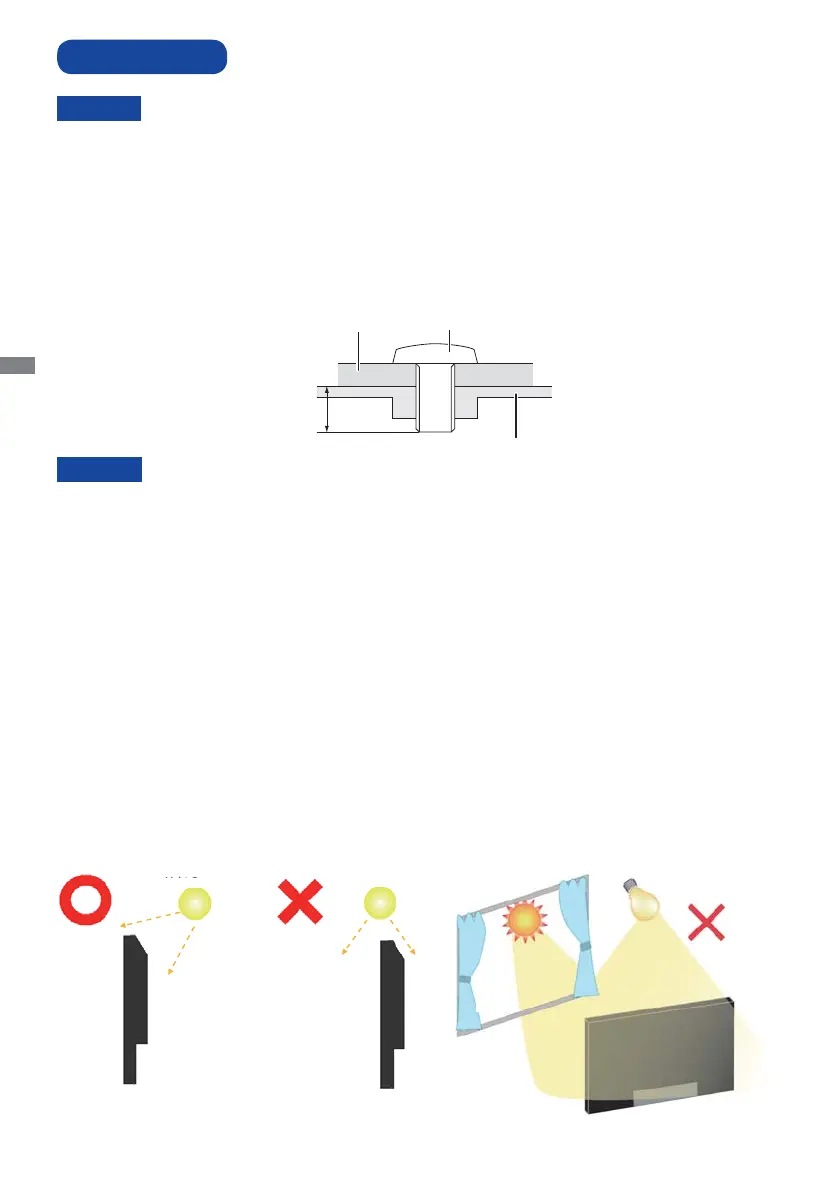

INSTALLATION
CAUTION

Follow the manual instructions for the type of mount you have selected. Refer all servicing to
qualifi ed service personnel.

Moving the monitor requires at least two people.

Before installing, please make sure the wall is strong enough to hold the necessary weight of the
display and the mount.
[WALL MOUNTING]
When using the wall mounting, consideration of thickness of the mounting stage needs to be taken.
Tighten the M8 Screw with washer which “L” length is 10mm to fasten the monitor. Using a screw
longer than this may cause electric shock or damage because it may contact with the electrical parts
inside the monitor.
CAUTION
L
Mounting Stage
Screw
Chassis
[INSTALLATION NOTE]
*Available for ProLite TH5565MIS only.
The touch kit of this monitor is an optical device that utilizes infrared light source and sensitive
sensors for touch detection.
Notice the incident light that contains large quantities of infrared light may affect touch screen
operation and performance.
Please install it with care as follows to ensure reliable touch performance.
Intense light / Specular light / Focus spotlight / Wide spread light / Direct sunlight / Indirect sunlight
from the window and/or the glass door. / Not install the touch monitor right under the light source.
Direct
Sunlight
Windows
Light
source
Light source
Light source
Front Front
Side
Side

Iiyama ProLite TH5565MIS Specifications

General

Panel life	- h
Pixel pitch	0.63 x 0.63 mm
Response time	12 ms
Display diagonal	55 \
Display brightness	400 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p
Touchscreen technology	Infrared
Contrast ratio (typical)	1100:1
Display number of colors	16.78 million colors
Display diagonal (metric)	138.8 cm
Active display area (W x H)	1209.6 x 680.4 mm
Number of simultaneous touchpoints	20
TV tuner integrated	No
Multi-display supported	-
Operating hours (hours/days)	24/7
On Screen Display (OSD) languages	CZE, DEU, DUT, ENG, FRE, JPN, POL, RUS
HDMI ports quantity	4
DisplayPorts quantity	0
VGA (D-Sub) input ports	1
RMS rated power	20 W
Number of built-in speakers	2
Certification	CE, CB, TÜV, CU
Orientation	Horizontal/Vertical
Product color	White
Product design	Digital signage flat panel
Panel mounting interface	400 x 400 mm
Cables included	AC, HDMI, USB, VGA
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	106 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 85 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	72 mm
Width	1265.6 mm
Height	736.5 mm
Weight	37500 g
