Iiyama ProLite TH5565MIS User Manual

ENGLISH
BEFORE YOU OPERATE THE MONITOR 17
CONNECTING YOUR MONITOR
Ensure that both the computer and the monitor are switched off.
Connect the computer to the monitor with the signal cable.
Connect the computer to the monitor with the USB Cable.*
Connect the Power Cable to the monitor fi rst and then to the power supply.
Turn on your monitor (Main Power Switch and Power Switch) and computer.

The signal cables used for connecting the computer and monitor may vary with the
type of computer used. An incorrect connection may cause serious damage to both
the monitor and the computer. The cable supplied with the monitor is for a standard
connector. If a special cable is required please contact your local iiyama dealer or
regional iiyama offi ce.

For connection to Macintosh computers, contact your local iiyama dealer or regional
iiyama offi ce for a suitable adaptor.

Make sure you tighten the fi nger screws at each end of the Signal Cable.

Don’t connect the RS-232C cable and the USB cable to the computer at the same time.
And cannot use those at the same time.*

When USB cable connected than wait for 8 seconds and the touch function is ready to
go. It can be activated by pen, fi nger or any other pointer.*

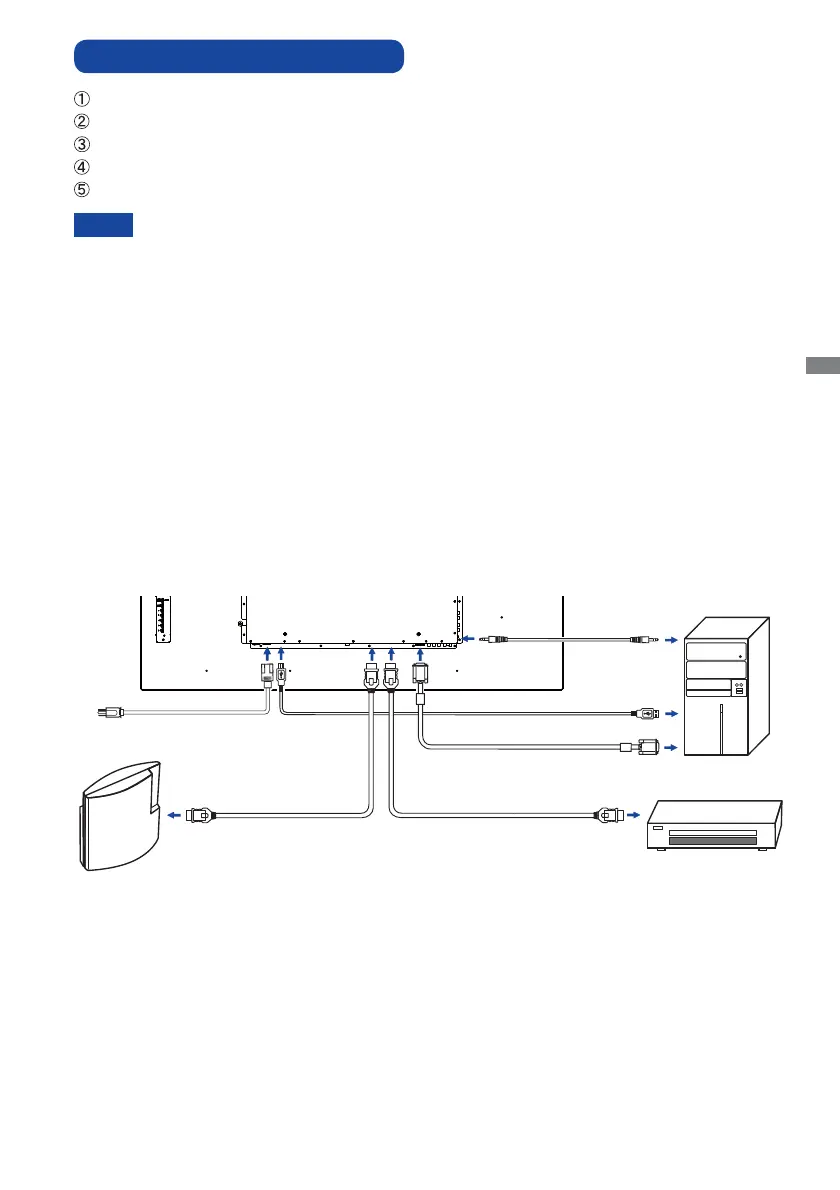

[Example of Connection]
<Back>
NOTE
* Available for ProLite TH5565MIS only.
Computer
AV Equipment
VGA(D-sub) Signal Cable
(Accessory)
HDMI Cable (Accessory)
Power Cable (Accessory)
USB Cable (Accessory)*
Audio Cable
(Not Included)
HDMI Cable (Not Included)
GAME
Equipment etc.

Iiyama ProLite TH5565MIS Specifications

General

Panel life	- h
Pixel pitch	0.63 x 0.63 mm
Response time	12 ms
Display diagonal	55 \
Display brightness	400 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p
Touchscreen technology	Infrared
Contrast ratio (typical)	1100:1
Display number of colors	16.78 million colors
Display diagonal (metric)	138.8 cm
Active display area (W x H)	1209.6 x 680.4 mm
Number of simultaneous touchpoints	20
TV tuner integrated	No
Multi-display supported	-
Operating hours (hours/days)	24/7
On Screen Display (OSD) languages	CZE, DEU, DUT, ENG, FRE, JPN, POL, RUS
HDMI ports quantity	4
DisplayPorts quantity	0
VGA (D-Sub) input ports	1
RMS rated power	20 W
Number of built-in speakers	2
Certification	CE, CB, TÜV, CU
Orientation	Horizontal/Vertical
Product color	White
Product design	Digital signage flat panel
Panel mounting interface	400 x 400 mm
Cables included	AC, HDMI, USB, VGA
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	106 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 85 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	72 mm
Width	1265.6 mm
Height	736.5 mm
Weight	37500 g
