Iiyama ProLite TH5565MIS User Manual

ENGLISH
OPERATING THE MONITOR 23
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT
TIMING shown on page 46. You are also able to adjust the picture by following the button operation
shown below. For more detailed adjustments, see page 36 for SCREEN ADJUSTMENTS.

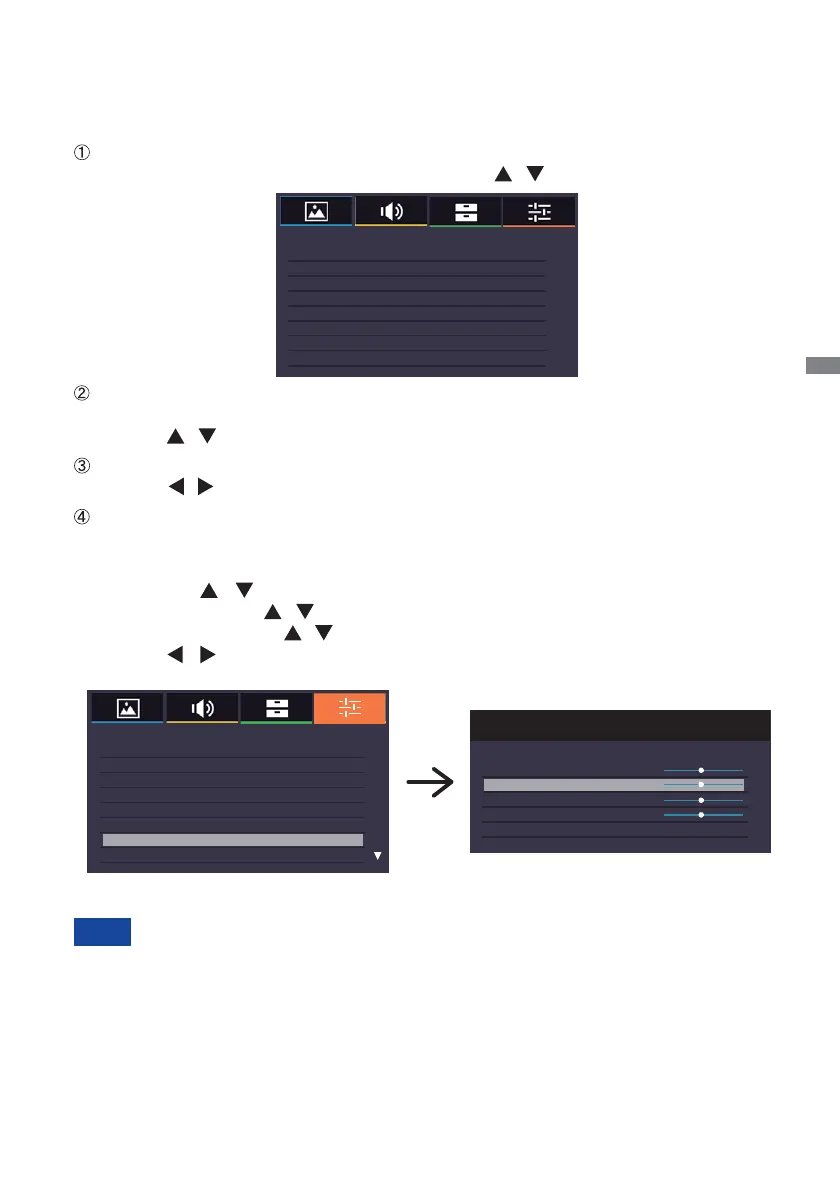

Press the MENU button to start the On Screen Display feature. There are additional
Menu items which can be switched by using the
/ buttons.
Select the Menu item of the adjustment you want to make. Press the OK button on
the remote control or ENTER button on the monitor and enter the menu page. Then,
use the
/ buttons to highlight the desired adjustment item.
Press the OK button on the remote control or ENTER button on the monitor again.
Use the
/ buttons to make the appropriate adjustment or setting.
Press the EXIT button to leave the menu, and the settings you just made would be
automatically saved.

The EXIT button on the remote control can be used to return previous menu item.

Any changes are automatically saved in the memory when the On Screen Display
disappears.
Turning off the power should be avoided while using the Menu.

Adjustments for Image Position, Clock Frequency and Phase are saved for each signal timing.
Except for these adjustments, all other adjustments have only one setting which applies to all
signal timings.
NOTE
For example, to correct for vertical position, select Menu item of Screen. Select "Settings"
by using the
/ buttons. Press the OK button on the remote control. Next, select "VGA
Settings" by using the
/ buttons. Press the OK button on the remote control. Then, select
"V. Position" by using the
/ buttons.
Use the / buttons to change the vertical position settings. The vertical position of the
overall display should be changing accordingly while you are doing this.
Press the EXIT button on the remote control lastly, it ends, all changes are saved in the memory.
Picture Settings
Advanced Colour Settings
On
Base Colour Adjustment
Adaptive Contrast
Off
Ambient Light Sensor
Off
Network Settings
Control Setting
RS-232C
1DI rotinoM teS
Energy Saving Settings
Aspect
Full
Freeze
Off
Setting
hsilgnEegaugnaL
VGA Settings
VGA Settings
Phase
Auto Adjustment
H. Position
Clock Frequency
V. Position

Iiyama ProLite TH5565MIS Specifications

General

Panel life	- h
Pixel pitch	0.63 x 0.63 mm
Response time	12 ms
Display diagonal	55 \
Display brightness	400 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p
Touchscreen technology	Infrared
Contrast ratio (typical)	1100:1
Display number of colors	16.78 million colors
Display diagonal (metric)	138.8 cm
Active display area (W x H)	1209.6 x 680.4 mm
Number of simultaneous touchpoints	20
TV tuner integrated	No
Multi-display supported	-
Operating hours (hours/days)	24/7
On Screen Display (OSD) languages	CZE, DEU, DUT, ENG, FRE, JPN, POL, RUS
HDMI ports quantity	4
DisplayPorts quantity	0
VGA (D-Sub) input ports	1
RMS rated power	20 W
Number of built-in speakers	2
Certification	CE, CB, TÜV, CU
Orientation	Horizontal/Vertical
Product color	White
Product design	Digital signage flat panel
Panel mounting interface	400 x 400 mm
Cables included	AC, HDMI, USB, VGA
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	106 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 85 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	72 mm
Width	1265.6 mm
Height	736.5 mm
Weight	37500 g
