IKA ICC basic - Menu Settings; Menu Structure; Basic Guide to Setting the Menu Options; Operating Mode (MODE)

11
• Minimum speed (LO R):
The minimum adjustable value: 1000 rpm
• Fluid type (FLUI):
The chosen fluid (No.) of the temperature setting is lim-
ited. See Section “Fluids”.
• Temperature control type (AUTO):
Menu settings
MODE
Maximum temperature (HI T)
Minimum temperature (LO T)
Maximum speed (HI R)
Minimum speed (LO R)
Fluid type (FLUI)
The type of temperature PID control arithmetic (AUTO)
Alarm and key tone (BEEP)
Calibration (CALI)
Menu

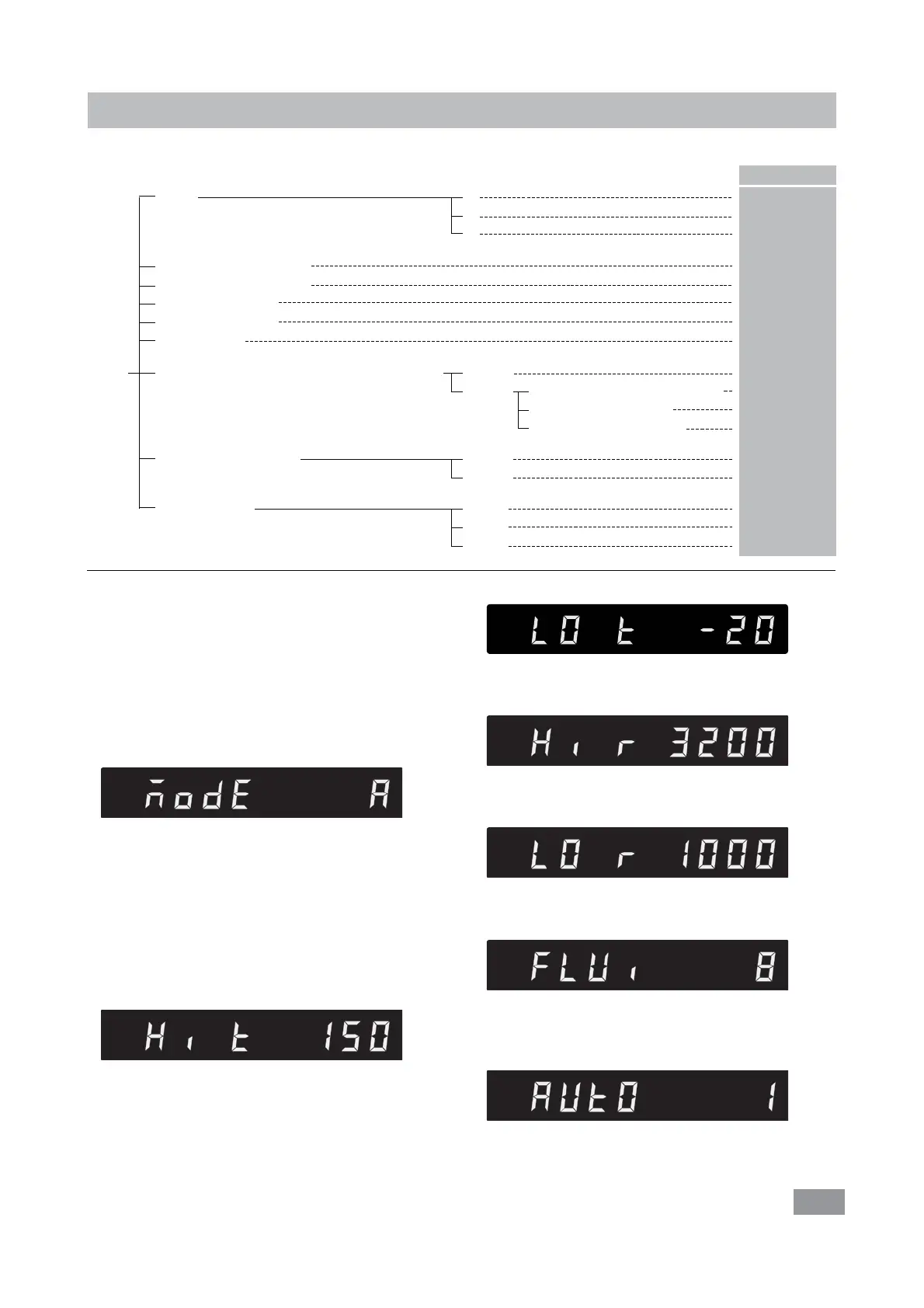

• Menu structure:
Default settings
A
B
C
Proportional coecient of PID (Kp 1)
Integrate time of PID (Ti 1)
Differential time of PID (Td 1)
AUTO 1
AUTO 0
BEEP 0
BEEP 1
CALI 0
CALI 2
CALI 3
activated
-
-
150 °C
-20 °C
3200 rpm
1000 rpm
8
activated
15.0
5.00
5.0
-
activated
activated
-
-
• Basic guide to setting the menu options:
) Enter the menu by pressing ”Menu” button (J).
) Press the “Temp (+)“ button (E) or “Temp (-)“ button
(F) to change the menu options.
)
Press the“Pump (+)“ button (H) or “Pump (-)“ but-
ton (I) to change the value settings in the menu.
) Confirm the menu settings by pressing the “OK/Pump“
button (G)
.
• Operating mode (MODE):
Mode A: After power on/power failure no automatic
restart of functions.
Mode B: After power on/power failure automatic re-
start of functions, depending on previous settings.
Mode C: Set values (set in A or B) cannot be changed.
After power on/power failure automatic restart of func-
tions, depending on previous settings.
• Maximum temperature (HI T):
The maximum adjustable value: 150° C. This value can
be limited additionally by the selected fluids (see section
“Fluids”).
Note: The maximum value is limited by the set safe
temperature.
• Minimum temperature (LO T):
The minimum adjustable value: -20° C
• Maximum speed (HI R):
The maximum adjustable value: 3200
rpm.
