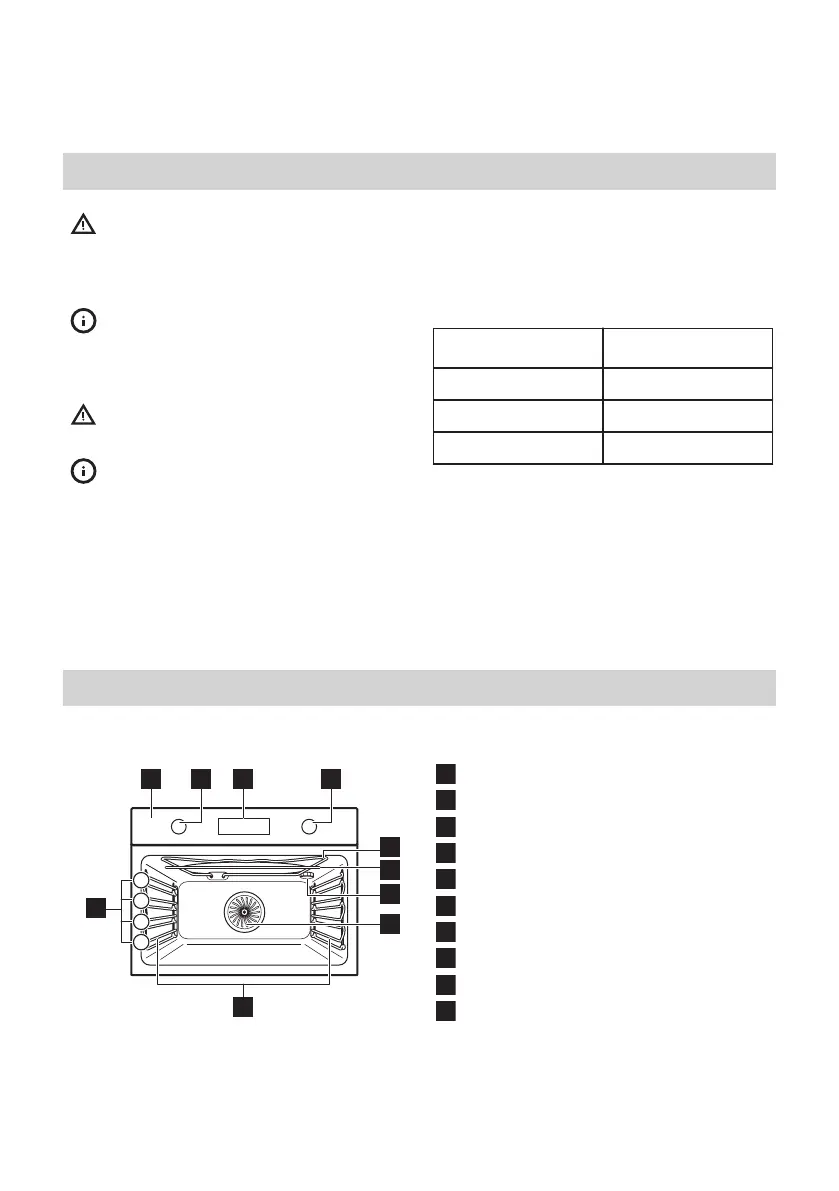

Installation
Warning! Refer to Safety
chapters.
Assembly
Refer to the Assembly
Instructions for the installation.
Electrical installation
Warning! Only a qualied person
must do the electrical installation.
The manufacturer is not
responsible if you do not follow
the safety precautions from the
Safety chapters.
This oven is only supplied with a main cable.
Cable
Cable types applicable for installation or
replacement:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05
V2V2-F (T90), H05 BB-F
For the section of the cable refer to the total
power on the rating plate. You can also refer
to the table:
Total power (W) Section of the cable
(mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable) must
be 2 cm longer than phase and neutral
cables (blue and brown cables).
Product description
General overview
Control panel
Knob for the heating functions
Display
Control knob
Heating element
Microwave generator
Lamp
Fan
Shelf support, removable
Shelf positions
Accessories
• Wire shelf x 1
For cookware, cake tins, roasts.
• Baking tray x 1
For cakes and biscuits.
• Microwave bottom glass plate x 1
To support microwave mode.
