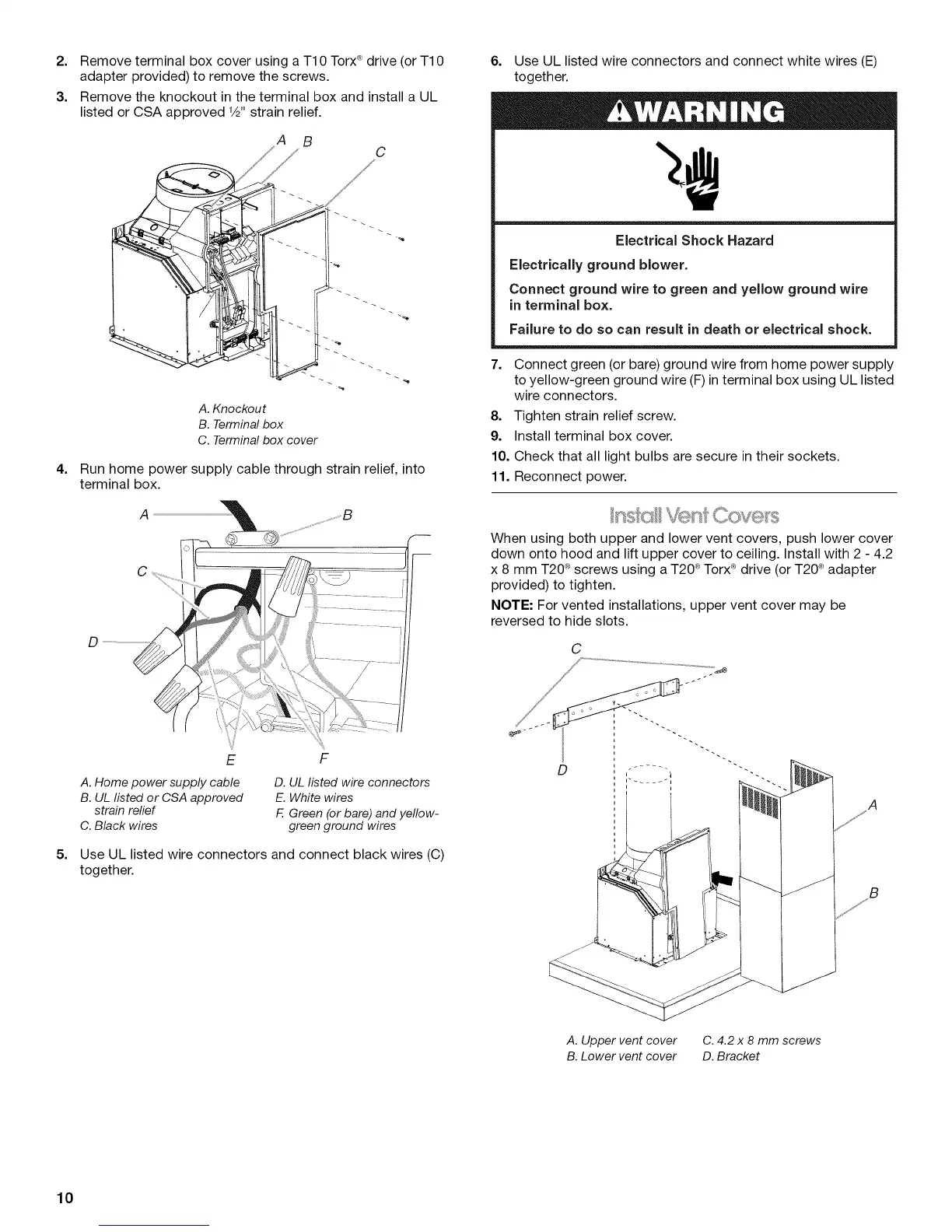

IKEA Range Hood User Manual

2. RemoveterminalboxcoverusingaT10Torx®drive(orT10
adapterprovided)toremovethescrews.
3. RemovetheknockoutintheterminalboxandinstallaUL
listedorCSAapproved1/2"strainrelief.
4=
5=
A B
C
A. Knockout
B. Terminalbox
C. Terminalbox cover
Run home power supply cable through strain relief, into
terminal box.
A
D
E
A. Home power supply cable
B. UL listed or CSA approved
strain relief
C. Black wires
F
D. UL listed wire connectors
E. White wires
F. Green (or bare) and yellow-
green ground wires
Use UL listed wire connectors and connect black wires (C)
together.
6. Use UL listed wire connectors and connect white wires (E)
together.
Electrical Shock Hazard
Electrically ground blower.
Connect ground wire to green and yellow ground wire
in terminal box.
Failure to do so can result in death or electrical shock.
7. Connect green (or bare) ground wire from home power supply
to yellow-green ground wire (F) in terminal box using UL listed
wire connectors.
8. Tighten strain relief screw.
9. Install terminal box cover.
10. Check that all light bulbs are secure in their sockets.
11. Reconnect power.
When using both upper and lower vent covers, push lower cover
down onto hood and lift upper cover to ceiling. Install with 2 - 4.2
x 8 mm T20®screws using a T20 ®Torx®drive (or T20®adapter
provided) to tighten.
NOTE: For vented installations, upper vent cover may be
reversed to hide slots.
C
D
i
i
i
A
B
A. Upper vent cover
B. Lower vent cover
C. 4.2 x 8 mm screws
D. Bracket
10

IKEA Range Hood Specifications

General

Lighting	LED
Fan Speed Settings	3
Type	Wall-mounted
Width	60 cm
Material	Stainless steel
Filtration	Carbon filter
Operating Mode	Recirculating
