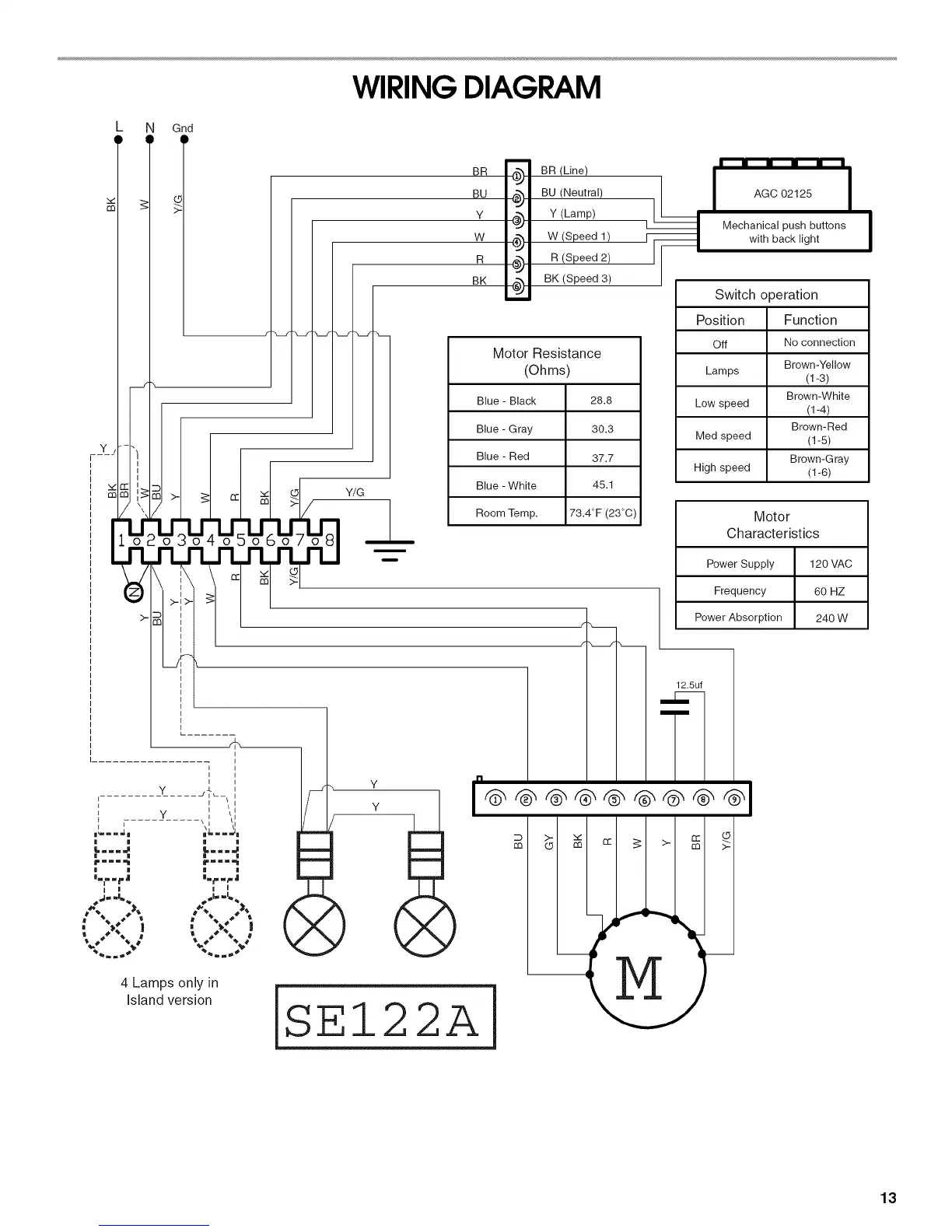

WIRING DIAGRAM
L N Gnd
BU @
Y ®
w ®
BK
I
)-
Y
y
I I
|
|
I
m _ ol ° _
ko,',j
4 Lamps only in
Island version
Y/G
i
I
BR (Line)
BU (Neutral)
Y (Lamp)
W (Speed 1)
R (Speed 2)
BK (Speed 3)
Motor Resistance
(Ohms)
Blue- Black 28.8
Blue - Gray 30.3
Blue - Red 37.7
Blue - White 45.1
Room Temp. 73.4°F (23°C)
SEI2
12.5uf
y I'1
I • • • • I
I I
Mechanical push buttons I
with back light
1
Switch operation
Position Function
Off No connection
Brown-Yellow
Lamps
(1-3)
Brown-White
Low speed (1-4)
Brown-Red
Med speed (1-5)
Brown-Gray
High speed (1-6)
Motor
Characteristics
Power Supply 120 VAC
Frequency 60 HZ
Power Absorption 240 W
13
