4. SETTINGS 4 - 9
BS-79 0212 VOL1 (U) (E) BS-79

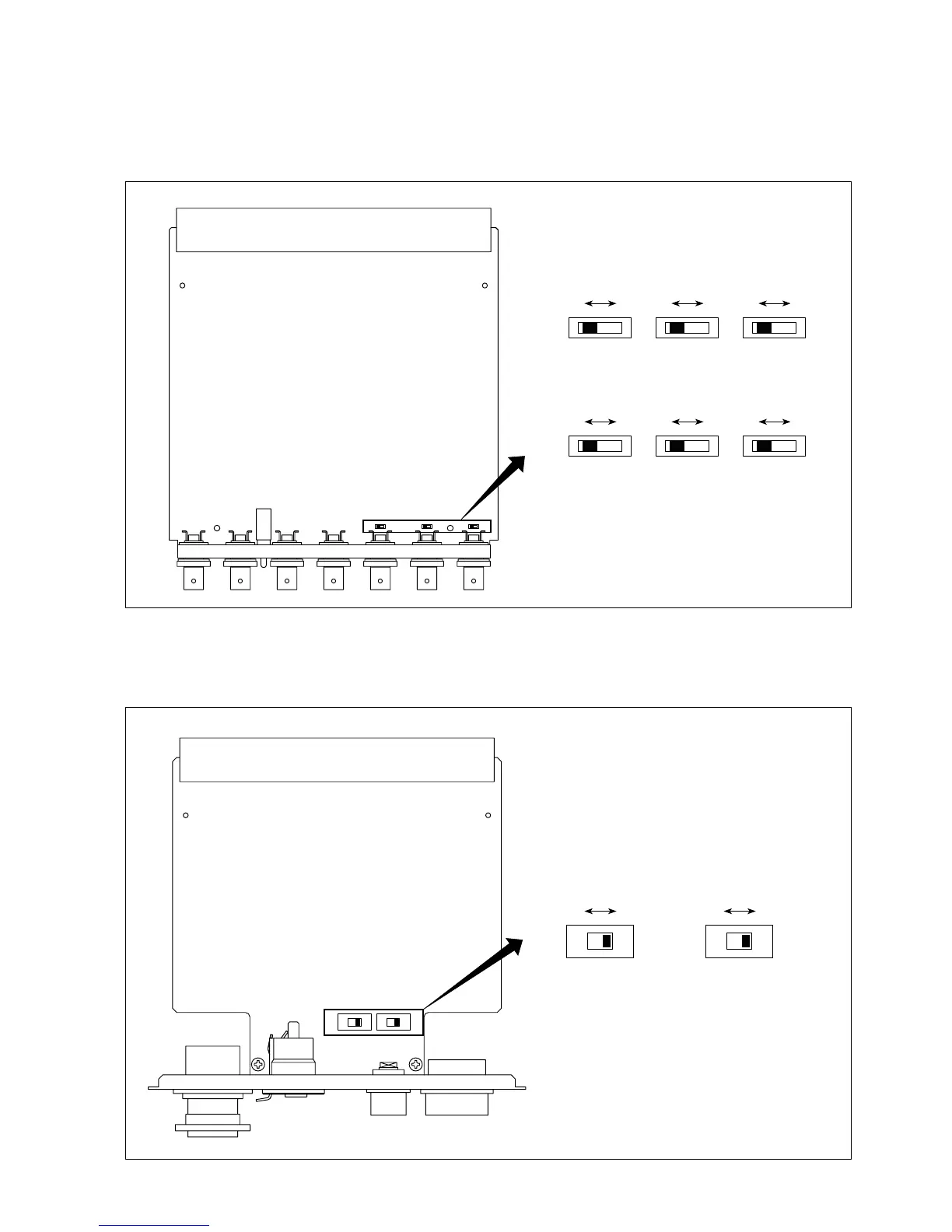

4.3 Setting the Component Signals
Set the types of component signals output from the component output connectors on the back of the BS.
For NTSC, you can select the YCbCr or RGB signals using switches S2 to S4 in the MON (SD) module. For HDTV, you can
select the YPbPr or RGB signals using switches S2 to S4 in the MON (HD) module.
G
S4
■ MON (SD) module
Y R
S2
Cr B
S3
Cb
G
S4
■ MON (HD) module
Y R
S2
Pr B
S3
Pb
4.4 Setting the Tally Mode
Set the mode of the tally control signals input to the TALLY IN connector on the back of the BS.
You can select "MAKE" or "POWER" using switches S301 and S302 in the INCOM module.
POWER
S302
S301
■ INCOM module
MAKE POWERMAKE
