Ikegami BS-79 - Device Connection Diagram

3 - 4 3. INSTALLATION AND CONNECTION
BS-79 BS-79 0212 VOL1 (U) (E)

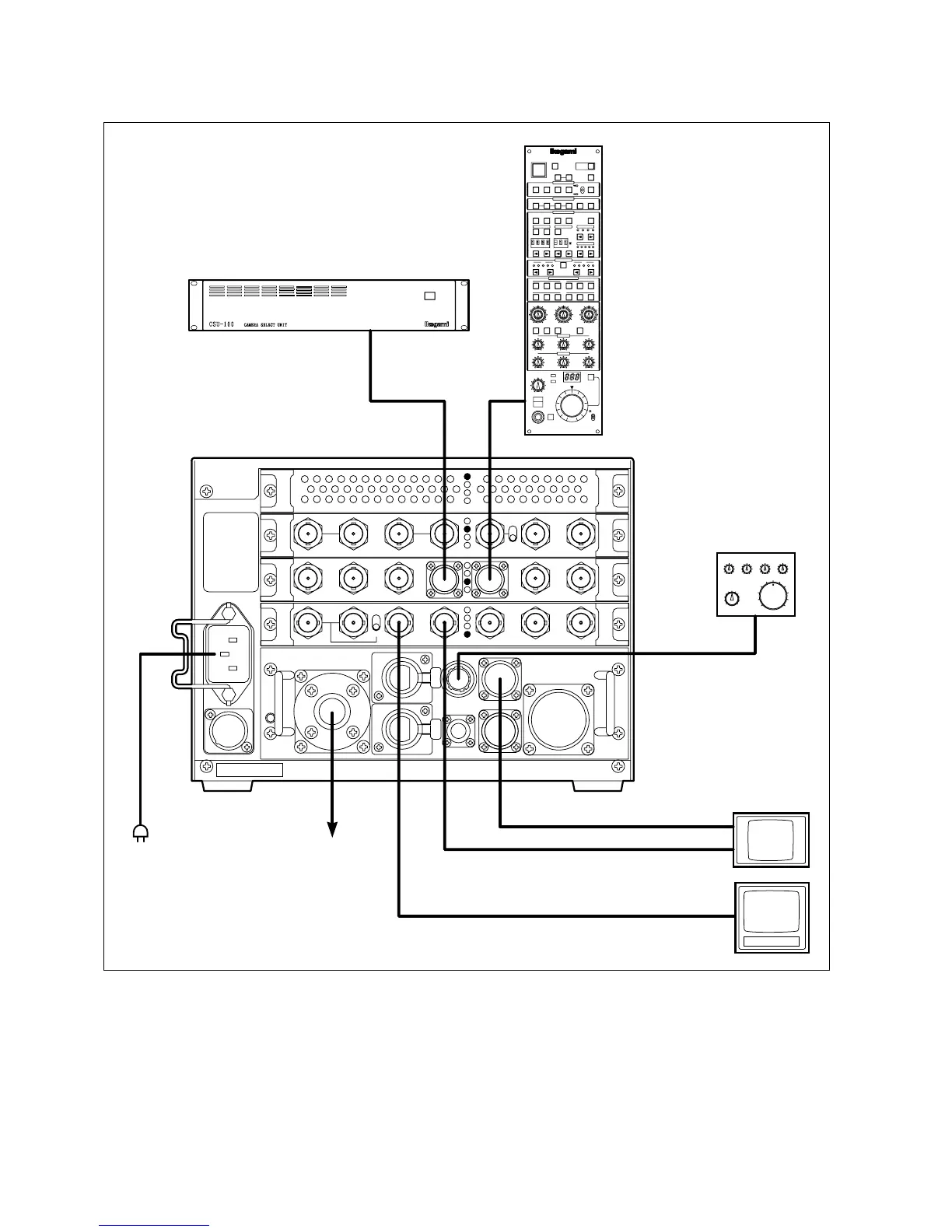

3.3 Device Connection Diagram
PM
WFM
Iris remote
controller
WFM Cont Cable (Max.5m)
CP Cable (Max.300m)
CP Cable
(Max.300m)
Coaxial Cable (Max.50m 5C-2V)
Coaxial Cable (Max.50m 5C-2V)
Remote Cable
AC IN
Fiber Cable
(Max.1000m)
To CAMERA HEAD
OCP
CSU
