6.4 Spring system for LASER (Sidewinder) keys
The machine ECODRILL 2000 C/E is provided with a system which controls the run of the cross axis so
that the operator can easily trace the outline of the cuts along the key shaft.
The spring system for Laser (sidewinder) keys is activated by means of the knob (O) (fig.11). It
determines lateral pressure on the part of the tools throughout the cutting operation; this makes it
possible for the operator to follow the outline of the cuts manually without having to exert cross pressure
on lever (C).

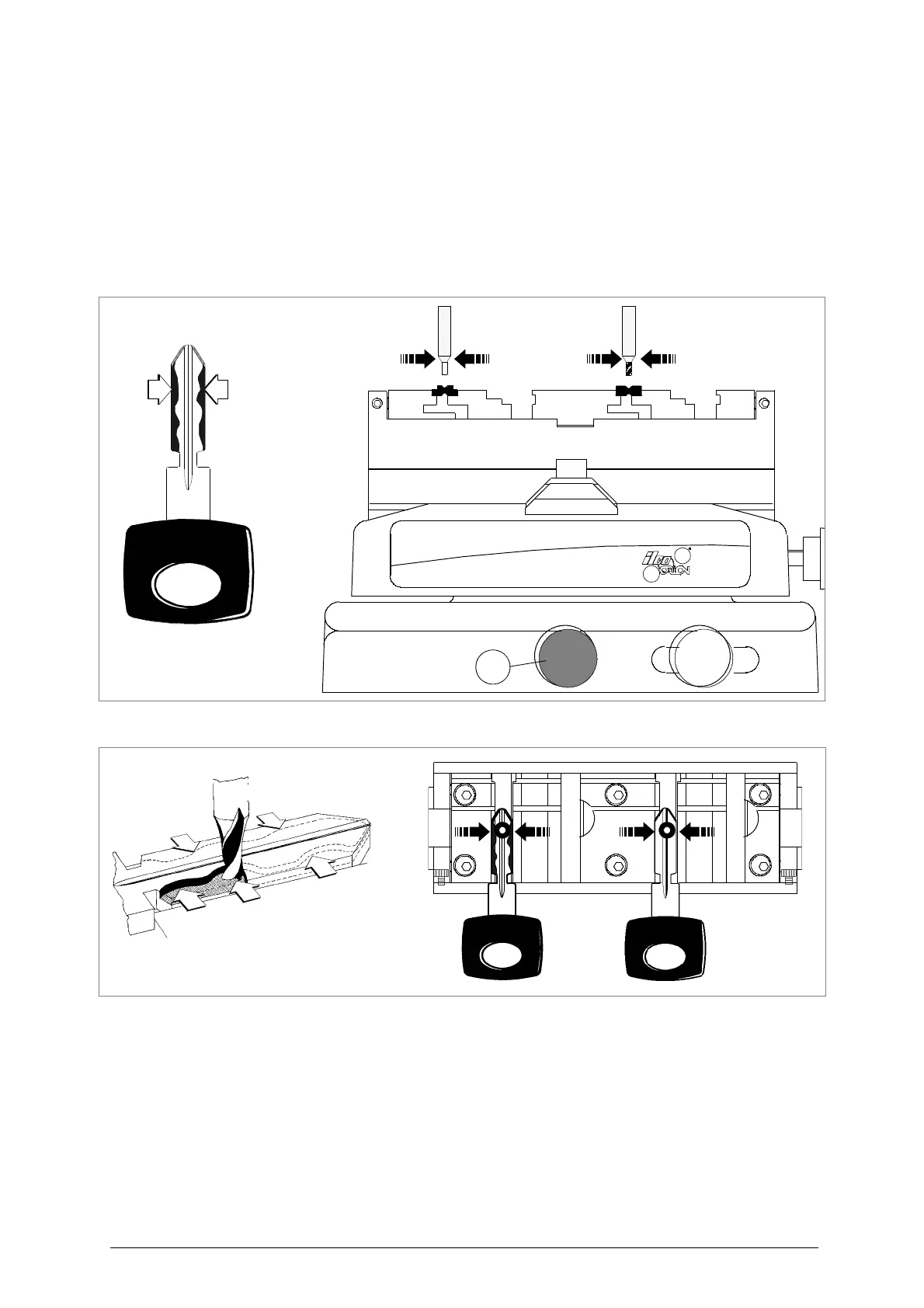

Fig. 11, fig.12, fig.13 and fig.14 show three examples of the use of the spring system:
1
central cutting
2
right-hand cutting
3
left-hand cutting
Fig. 11
Fig. 12
1
central cutting
O
