Ilco Orion ECODRILL 2000 C/E - Replacing the Right-hand Mobile Jaw

Operating manual - English ECODRILL 2000 C/E
31
8.6.4 Replacing the right-hand mobile jaw
1) Loosen the grub screw (Y1) on the knob (Y) and remove (fig. 35) (fig. 36).
2) loosen the 2 screws (Y2) on the flange (W1) and remove.
3) loosen the screw (W2) used to close the clamp and remove it with its washer.
4) loosen the 2 screws (P2) and remove the central jaw (chap.8.6.5, page 32).
5) remove the mobile jaw (B4).
6) fit the new mobile jaw (B4), fit the washer and tighten the clamp closing screw.
7) fit the central jaw (chap.8.6.5, page 32).
8) secure the flange (W1) with the 2 screws (Y2).
9) fit the knob onto the pin of the clamp screw, securing with the grub screw (Y1) on the machined (flat)
part of the pin.

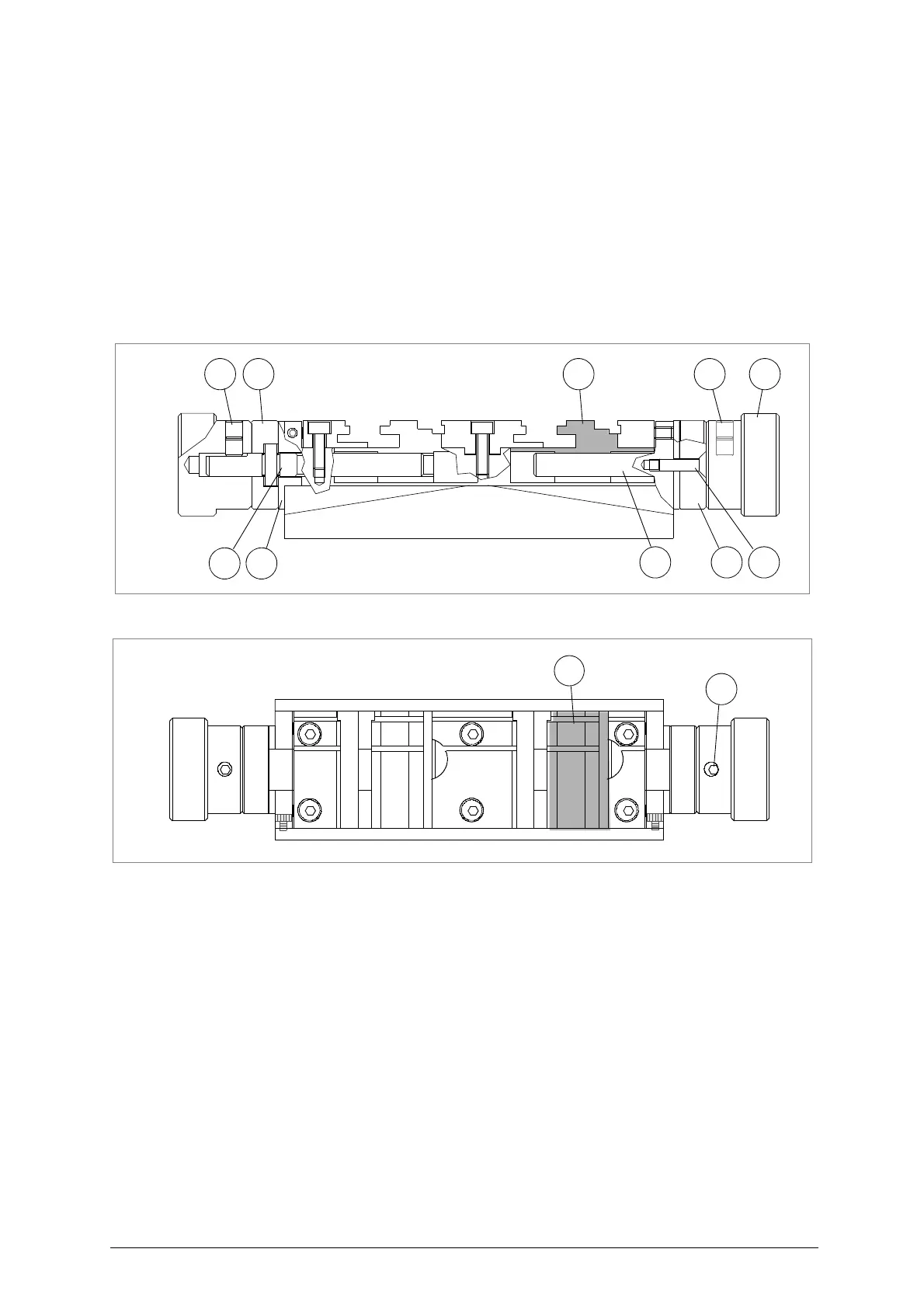

Fig. 35
Fig. 36
X1 YF1
F2 F3
B4
Y2W1W2
Y1
Y1
B4
