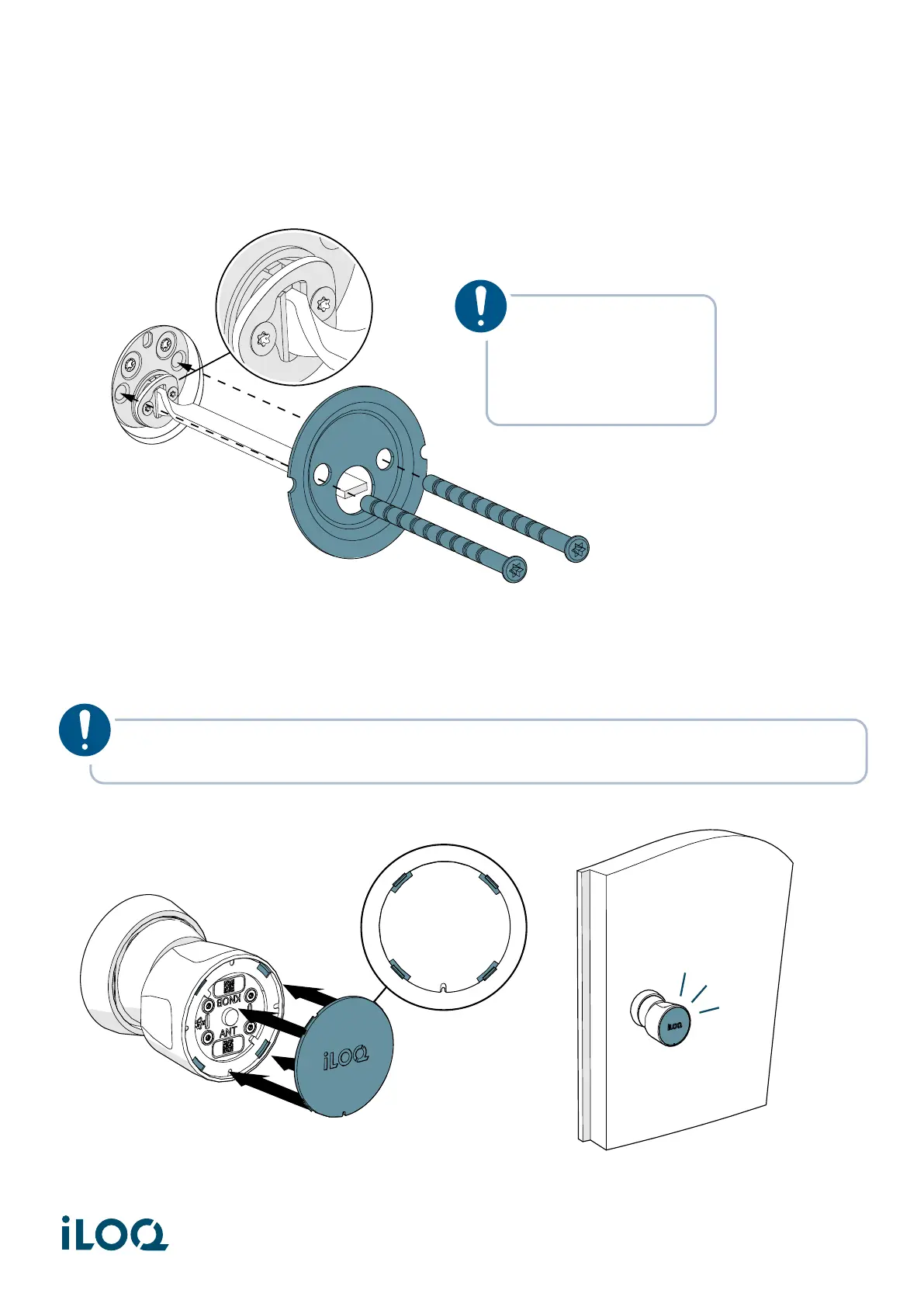

3. Align the two screws with the holes in the mounting plate and tighten them to secure the cylinder in
place.
Make sure that the mounting plate is perfectly flush with the door.
4. Insert the iLOQ cap into the front of the knob by aligning the four tabs of the cap with the four
pockets in the knob.
The iLOQ logo on the cap should be horizontal when the cylinder is locked.
NOTE! The tailpiece
washer for RIM
cylinder is designed
to bend when
fastened to cylinder.
NOTE! The front cap can be installed in four different orientations (0º, 90º, 180º and 270º
angles) based on the orientation of the lock.
11
Document ID - 304931
iLOQ S50 (X50S)
