iLoq S50 - Cylinder Conversion

9. Converting a Mortise or RIM Cylinder to a KIK Schlage
Cylinder

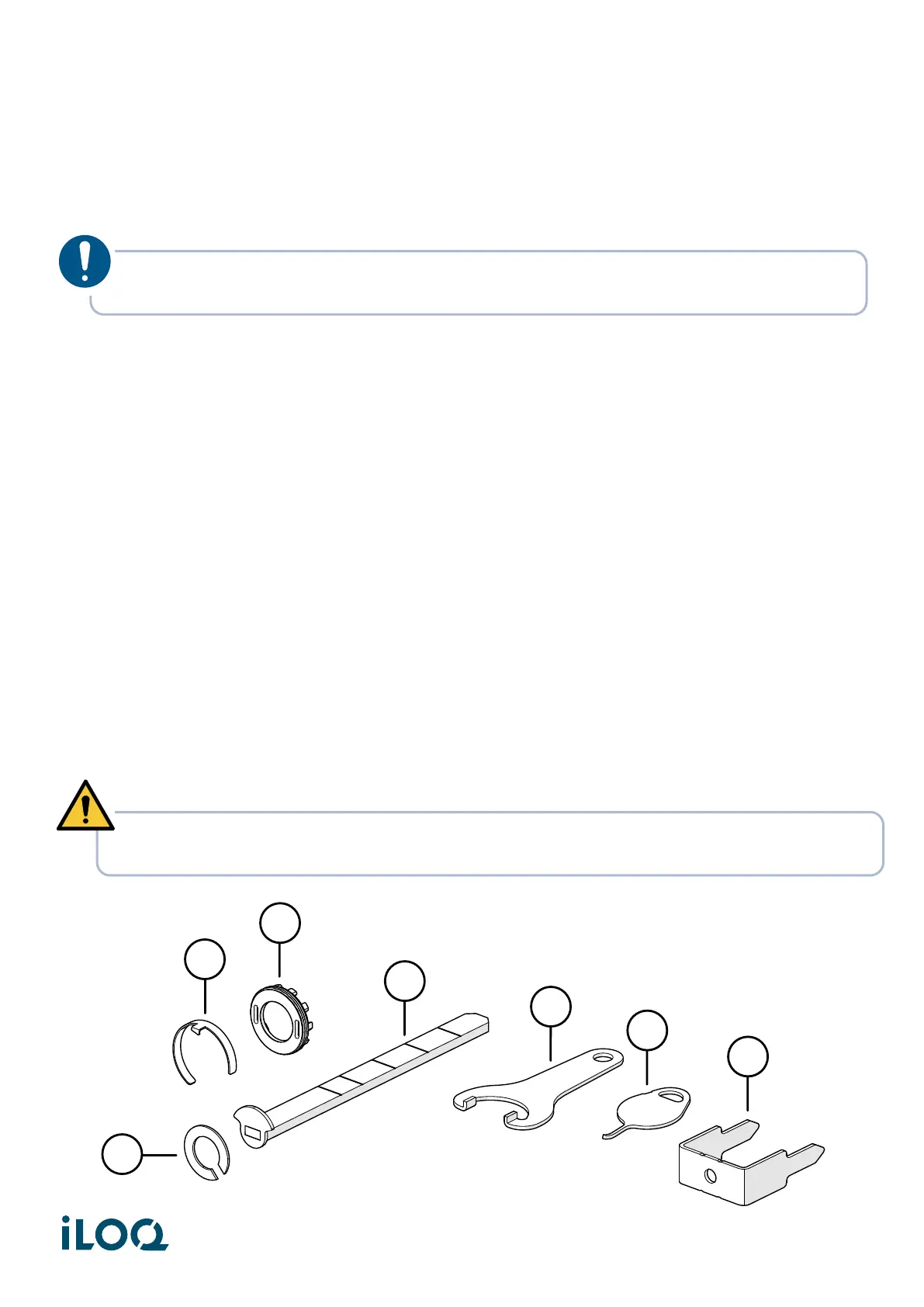

Parts needed:
• AX50.Y.G.01 - Crown Assembly for KIK:
1. Plunger
2. Crown
• AX50.Y.TX - KIK Tailpiece (specify the needed tailpiece when ordering):
3. Tailpiece
4. Tailpiece spacer
• AX50.Y.G.02 -
5. Crown installation tool
• AX50.G.KT.3 -
6. Cap removal tool
• AX50.G.KT.2 -
7. Knob removal tool
NOTE! Only use an authentic iLOQ tailpiece. The use a of non-iLOQ tailpiece can
compromise the built-in security features.
3
4
5
1
2
7
6
WARNING! Risk of injury. Do not leave the knob removal tool inside the knob. Hold the knob
securely during installation and removal to prevent the tool from accidentally popping off.
