iLoq S50 - Installing the iLOQ RIM Cylinder

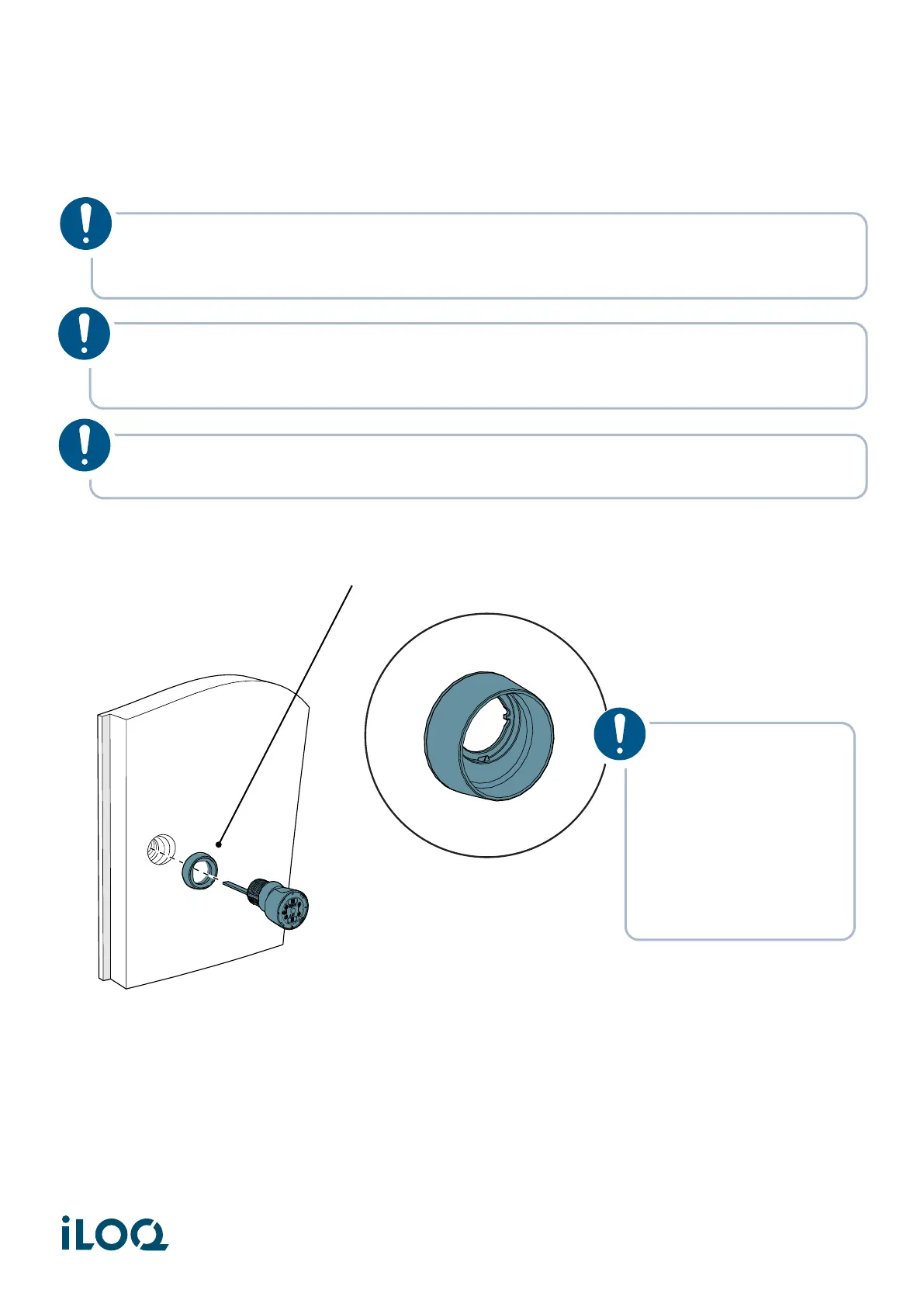

4.2 Installation of the iLOQ RIM Cylinder
1. Cut the mounting screws to the proper length.
2. Insert the RIM cylinder with the security ring into the hole from the outside of the door.
NOTE! The following installation instructions are for illustration purposes only. The RIM
cylinder may be used with various types of hardware. For precise installation guidance,
please refer to the installation manual provided with your specific door hardware.
NOTE! The tailpiece provided with the RIM cylinder has a length of 56mm. If a longer
tailpiece is required for your installation, please use the accessory “Long Horizontal Tailpiece
for RIM, product code AX50.X.G.06”. The length of the long tailpiece is 102mm.
NOTE! If a vertical tailpiece is required for your installation, please use the accessory
“Vertical Tailpiece for RIM, Product Code AX50.X.G.05”.
NOTE! The security
ring could be
replaced by a high
guard escutcheon
to provide an extra
protection to the
cylinder and the
knob (Product code:
AX50.X.ES1.XX).
10
Document ID - 304931
iLOQ S50 (X50S)
