2. Overview
2.1 iLOQ X50S cylinder
The iLOQ X50S cylinders are battery-free programmable NFC cylinders for the iLOQ S50 product family in
the 5 Series platform. The X50S cylinder body is the same for Mortise and RIM. A Mortise cylinder can
easily be converted into a RIM cylinder or vice versa by simply swapping out the cam/tailpiece.

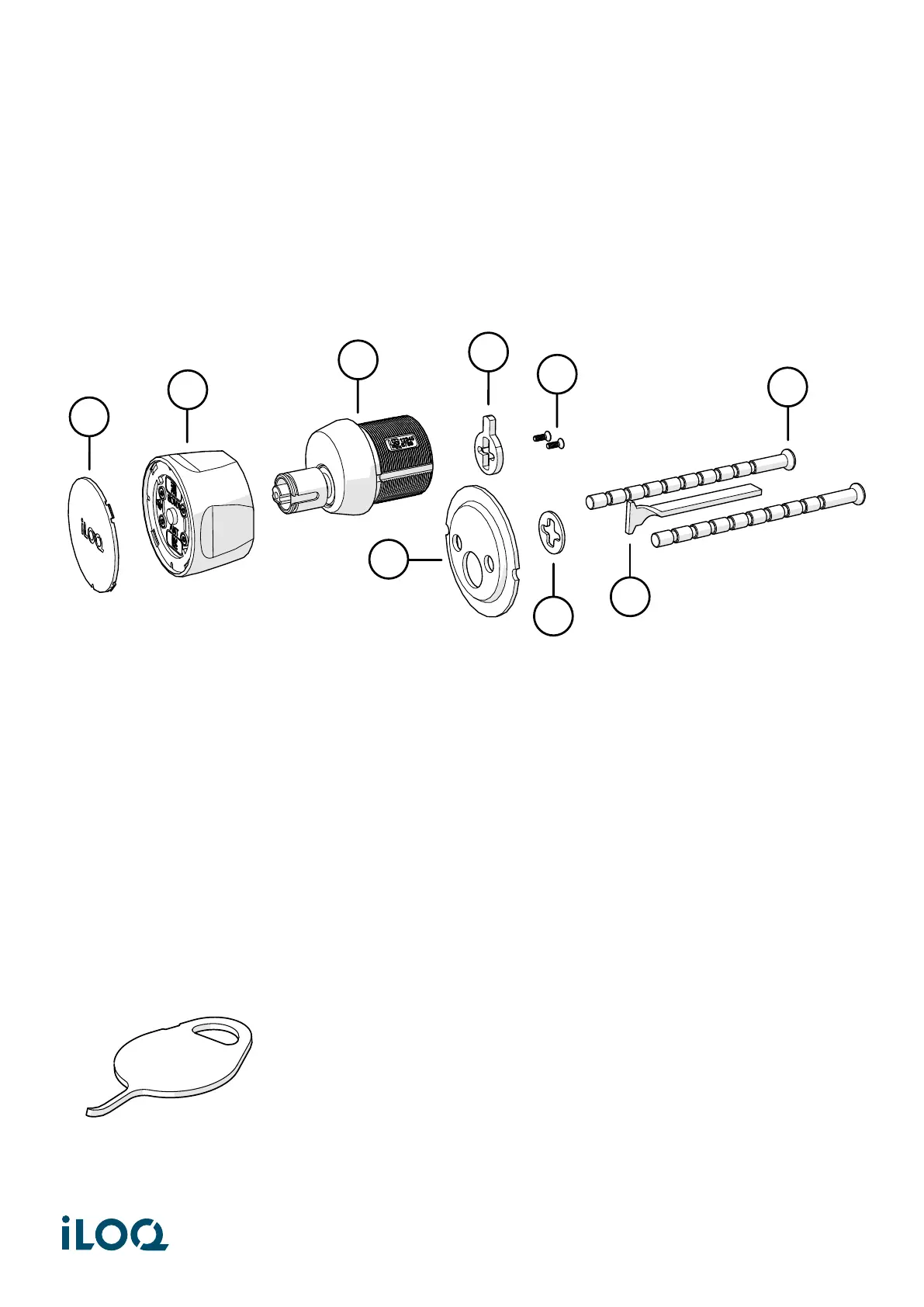

1. Front cap
2. Knob
3. Cylinder
4. Mortise cam
5. Mortise cam screws/RIM washer screws
6. RIM mounting plate
7. RIM tailpiece washer
8. RIM tailpiece
9. RIM mounting screws
2.2 Tool supplied
• Cap removal tool
1
2
3
4
5
9
6
7
8
4
