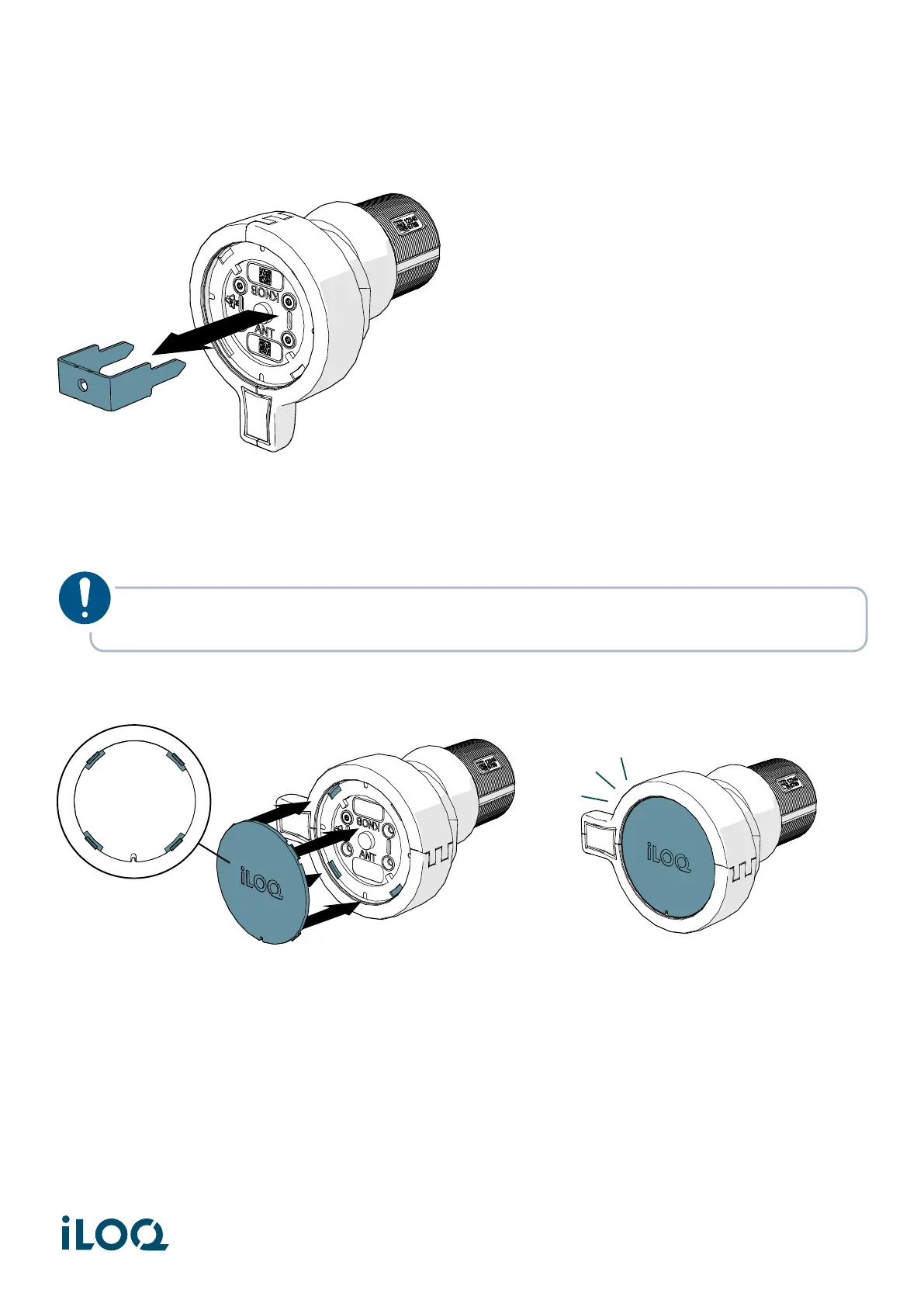

10. Remove the tool from the knob.
11. Insert the front cap into the knob by aligning the four tabs of the cap with the four pockets in the
knob.
The iLOQ logo on the cap should be horizontal when the cylinder is locked.
NOTE! The front cap can be installed in four different orientations (0º, 90º, 180º and 270º
angles) based on the orientation of the lock.
