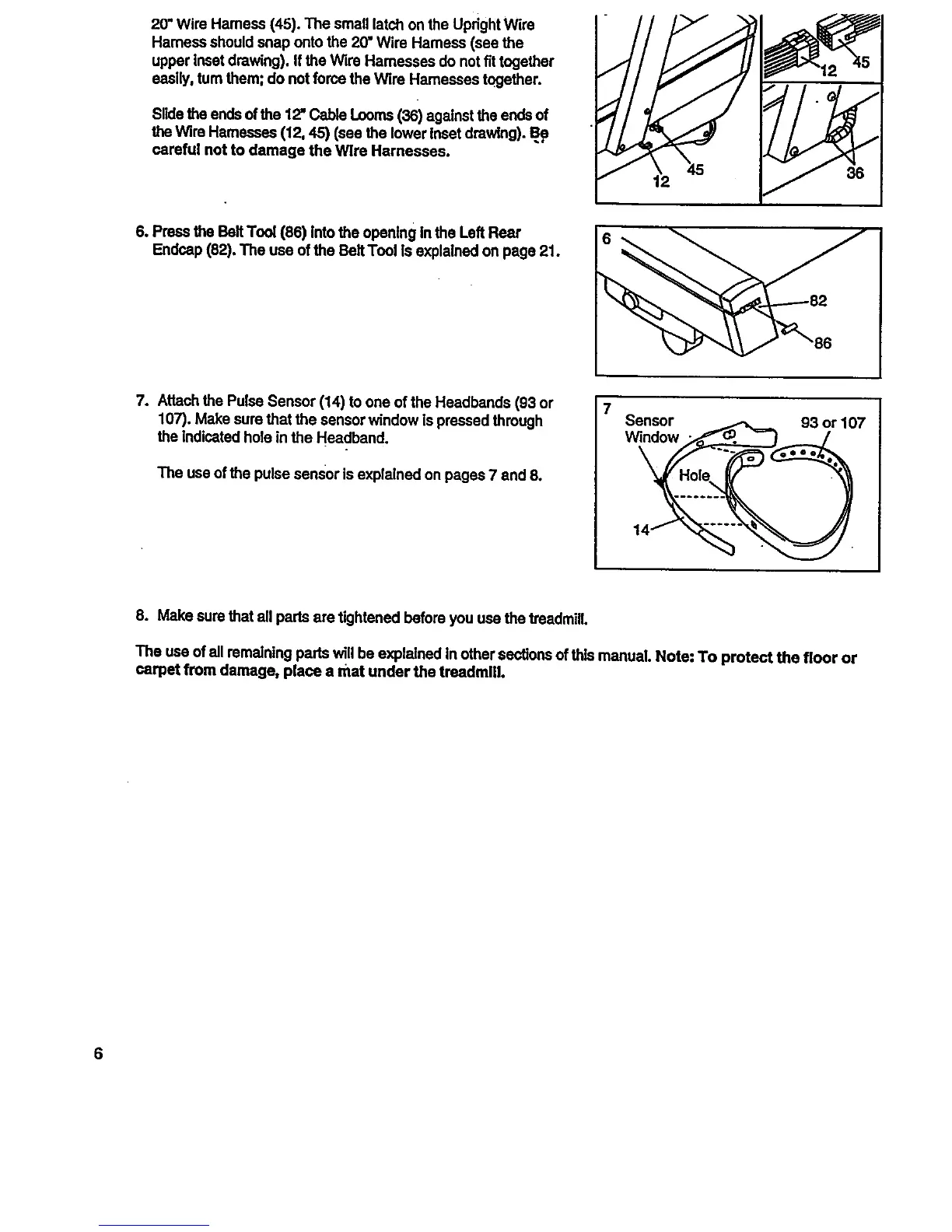

Image 10.6 - Page 6

20"WireHamess(45).ThesmalllatchontheUpdghtWire
Hamessshouldsnapontothe 20" Wire Hamess (see the
upper inset drawing). If the Wire Harnesses do not fittogether
easily, turn them; do not force the wire Harnesses together.
Slidethe ends of the 12" Cable Looms (36) against the ends of
the wire Harnesses (12, 45) (see the lower Inset drawing). Bp
careful not to damage the wire Harnesses.
6. Pressthe BeltTool(86) intothe openingin theLeft Rear
Endcap(82). The use ofthe BeltTool Isexplainedon page21.
7. Attach the Pulse Sensor (14) to one of the Headbands (93 or
107). Make sure that the sensor window is pressed through
the indicated hole in the Headband.
The use of the pulse sensor is explained on pages 7 and 8.
7
Sensor
Window
93 or 107
8. Make sure that all parts are tightened before you use the treadmill.
The use of all remaining parts will be explained In other sections of thIs manual. Note: To protect the floor or
carpet from damage, place a mat under the treadmUl.
