MC68HC705BD7B
LM2467
Monolithic Triple 7.5 ns CRT Driver
General Description
The LM2467 is an integrated high voltage CRT driver circuit
designed for use in color monitor applications. The IC con-
tains three high input impedance, wide band amplifiers
which directly drive the RGB cathodes of a CRT. Each
channel has its gain internally set to ˛20 and can drive CRT
capacitive loads as well as resistive loads present in other
applications, limited only by the package's power dissipation.
The IC is packaged in an industry standard 9-lead TO-220
molded plastic power package. See Thermal Considerations
section.
Features
• Higher gain to match LM126X CMOS preamplifiers
• 0V to 3.75V input range
• Stable with 0±20 pF capacitive loads and inductive
peaking networks
• Convenient TO-220 staggered lead package style
• Maintains standard LM243X Family pinout which is
designed for easy PCB layout
Applications
• 024 x 768 displays up to 85 Hz refresh
• Pixel clock frequencies up to 95 MHz
• Monitors using video blanking

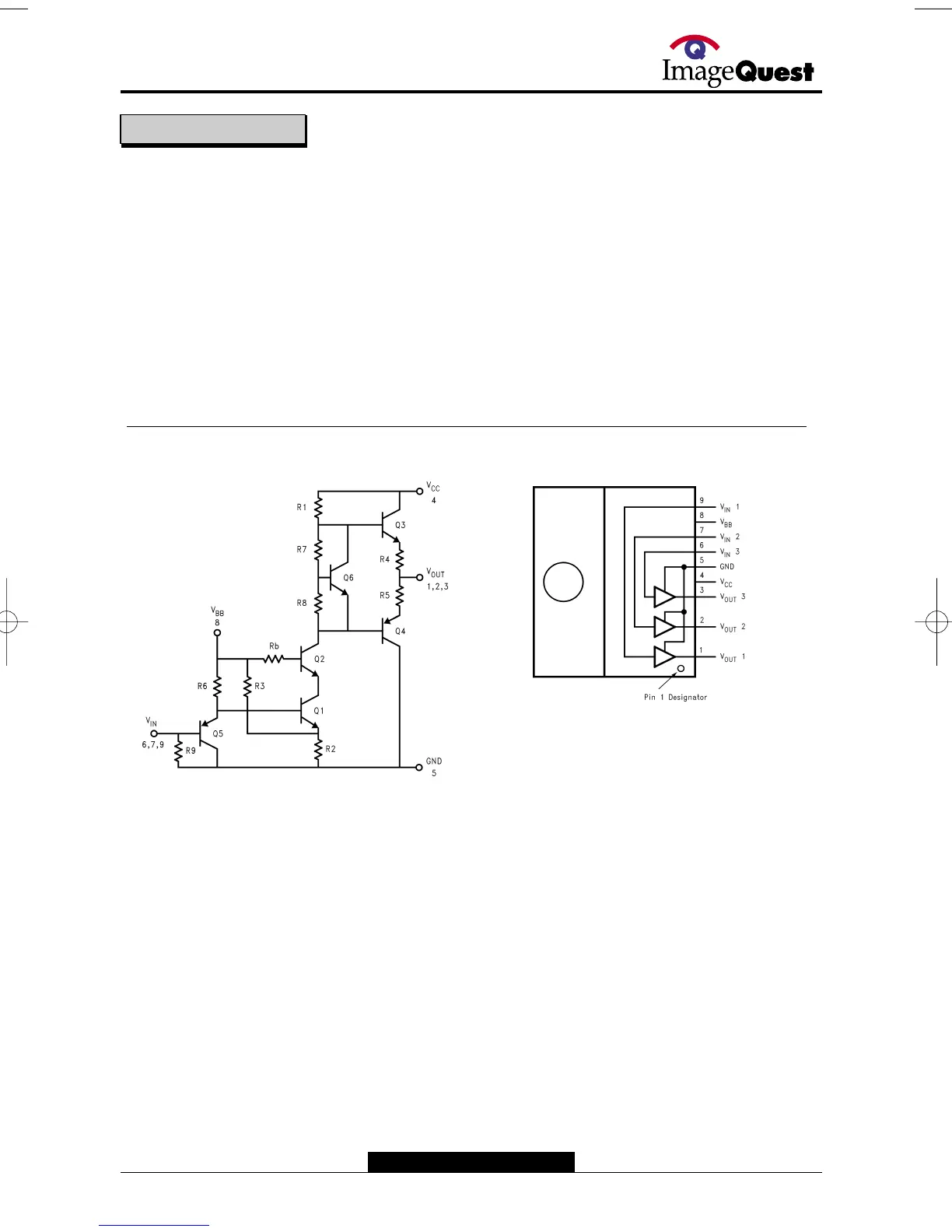

Schematic and Connection Diagrams
DS200078-1
FIGURE 1. Simplified Schematic Diagram
(One Channel)
DS200078-2
Note: TabisatGND
Top View
Order Number LM2467T
