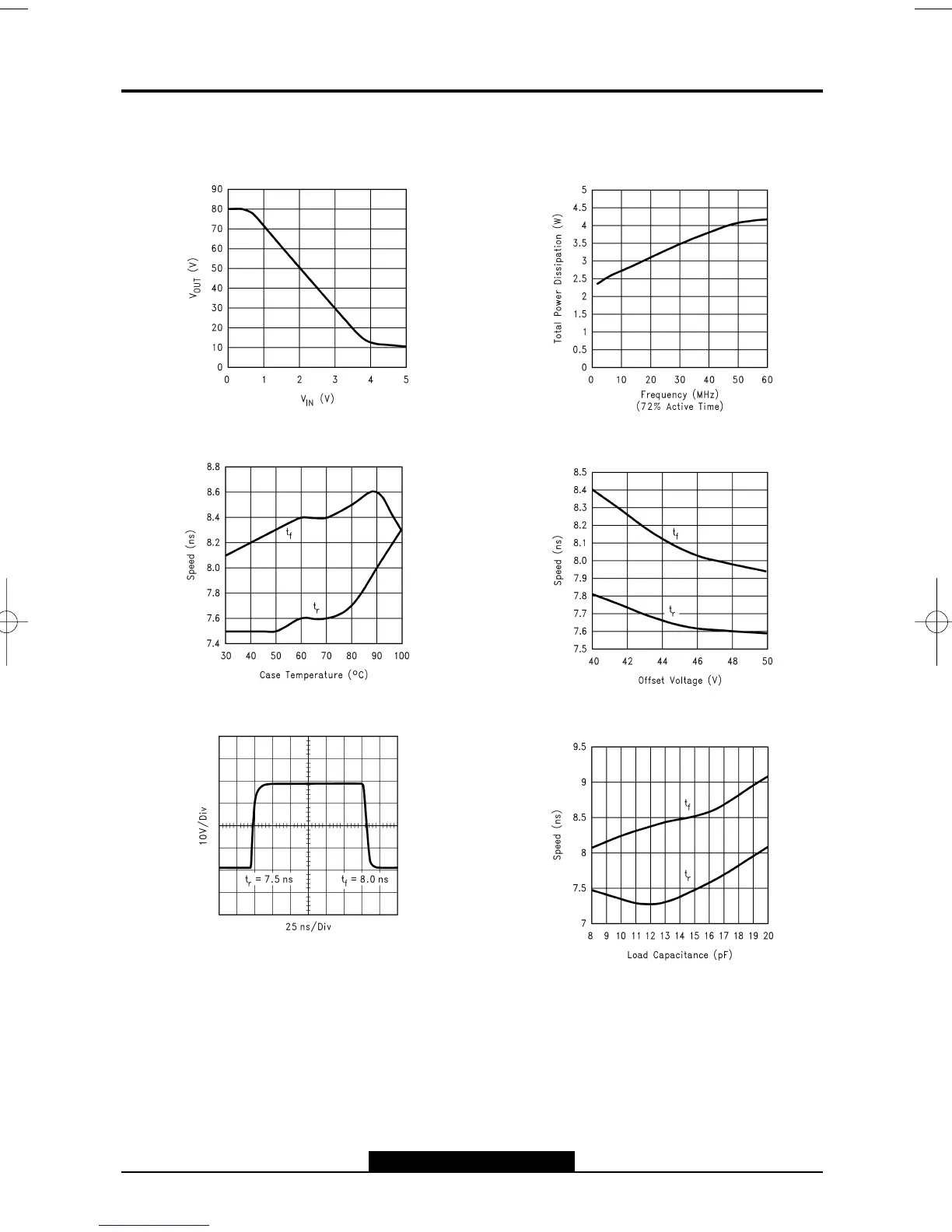

Typical Performance Characteristics (V
CC
= +80 V
DC
,V
BB
= +12 V
DC
,C
L
= 8 pF, V
OUT
=40V
PP
(25V˛65V), Test Circuit -
Figure 2
unless otherwise specified)
DS200078-4
FIGURE 3. V
OUT
vs V
IN
DS200078-5
FIGURE 4. Speed vs Temp.
DS200078-6
FIGURE 5. LM2467 Pulse Response
DS200078-7
FIGURE 6. Power Dissipation vs Frequency
DS200078-8
FIGURE 7. Speed vs Offset
DS200078-9
FIGURE 8. Speed vs Load Capacitance
