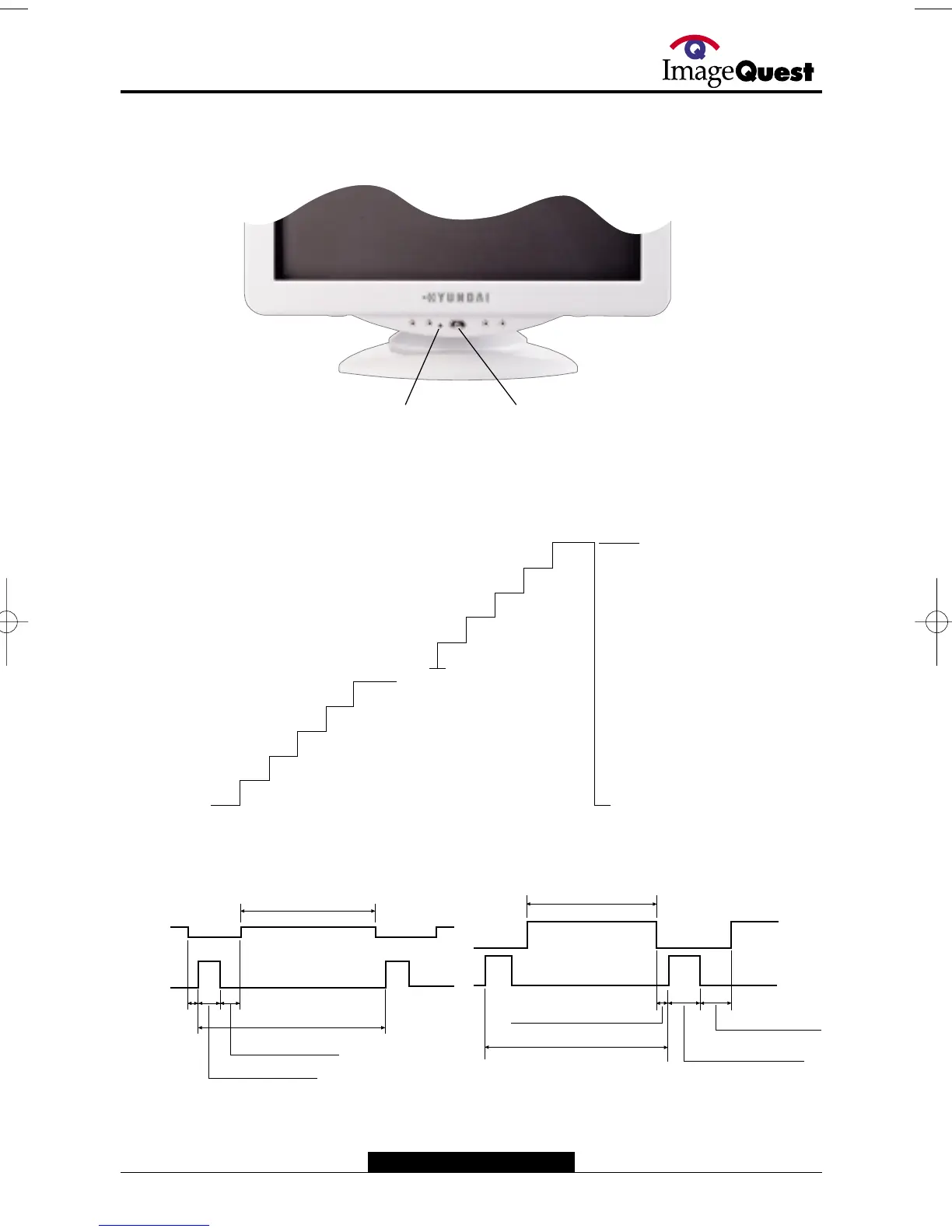

Video Input Signal
Recommended signals are shown below.
• Video Signal
Video Level : 0 to 700mV
Polarty : Positive
Video Input : RGB separated
Analog level
Sync input : H-Sync ; TTL level
V-Sync ; TTL level
• Waveform
Video input(R, G, B)
• H-Sync • V-Sync
0
1
2
3
4
59
60
61
62
63
700mV
• Signal: 64 level gray scale
• Linear stepping:
(11.1mV-64 Steps)
ACTIVE (4)
Front Porch
(T5)
Period (T1)
Sync Width (T2)
Back Porch (T3)
ACTIVE (4)
Front Porch (T5)
Period (T1)
Sync Width (T2)
Back Porch (T3)
Power LED Power Switch
Control Desciption
Front View
