Absolute Maximum Ratings (Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage, V
CC
+130V
Input Voltage, V
IN
0V to 5V
Storage Temperature Range, T
STG
-65!C to +150!C
Lead Temperature (Soldering,
<
10sec.) 300!C
ESD Tolerance, Machine Model 200V
Limits of Operating Ranges (Note 3)
V
CC
110 to 125
V
OUT
,V
CC
= 120V 50 to 120V
Ambient Temperature Range, T
A
0to70!C
DC CLAMP ELECTRICAL CHARACTERISTICS TARGETS AND LIMIT
Unless otherwise noted: V
CC
= +120V, V
IN
= 2.25V
DC
,T
A
=25!C.
Symbol Spec Parameter Conditions Min Typ Max Units
I
CC
Supply Current All channels 2.3 3.5 mA
V
OUT
DC Output Voltage 83 87 91 V
DC
V
OUT-Range
Output Voltage Range V
IN
Range = 1.0V - 4.0V 53 V
A
V
DC Voltage Gain -16 -18 -20
LE Linearity Error See Note 1 5 %
R
IN
Input Resistance 24K Ω
Note 1: Linearity Error is the variation in DC gain from V
IN
= 1.0V to V
IN
= 4.0V.
Note 2: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur.
Note 3: Operating Ratings indicate conditions for which the device is functional, but do not guarantee specific performance limits. For guaranteed specifications and
the test conditions, see the Electrical Characteristics. The guaranteed specifications apply only for the test conditions listed. Some performance characteristics may
change when the device is not operated under the listed test conditions.
Note 4: All voltages are measured with respect to GND, unless otherwise specified.

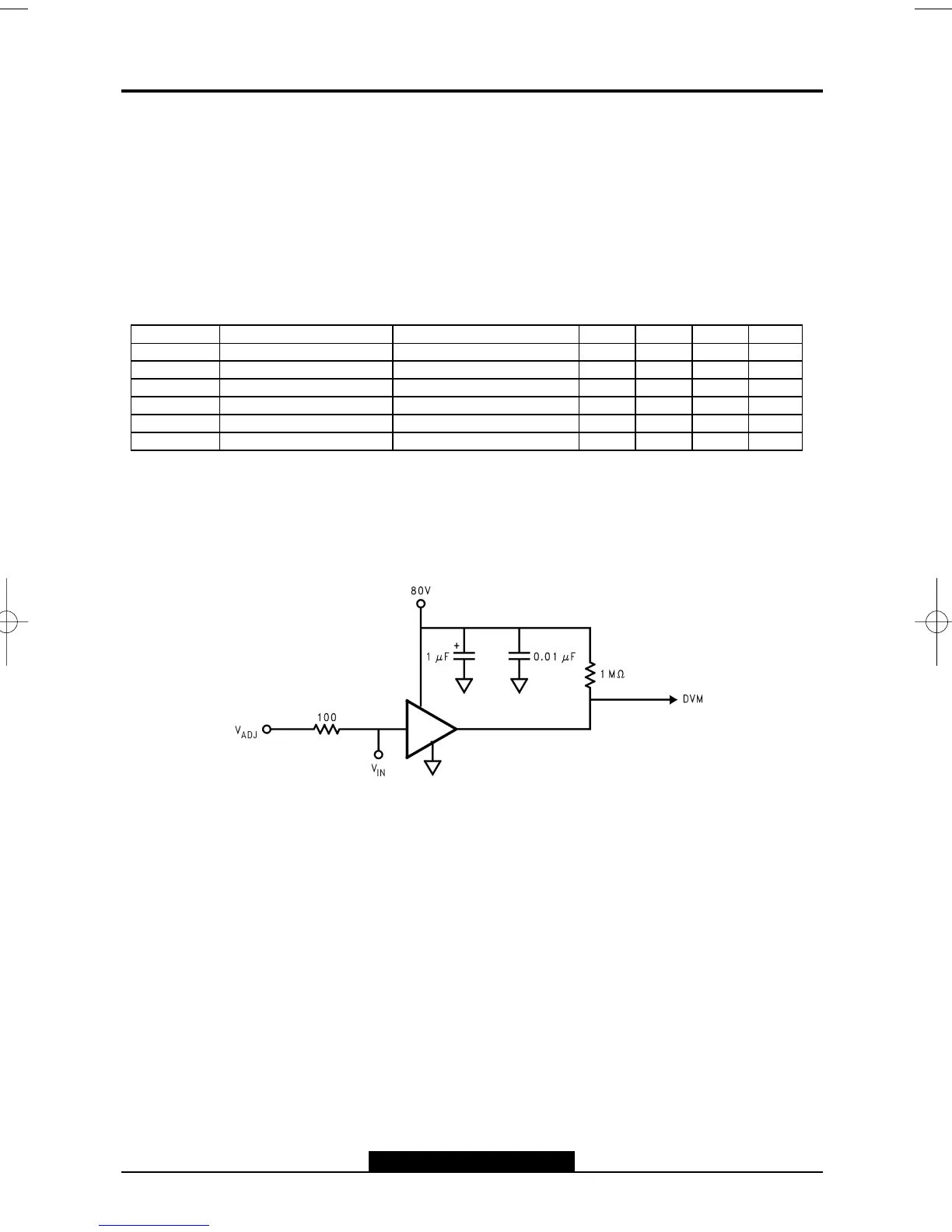

Test Circuit
Figure 3
shows the test circuit for evaluation of the LM2479 Clamp Amplifier. A high impedance VM (
>
100MΩ) is used for DC
measurements at the output.
DS101391-3
FIGURE 3. Test Circuit (One Channel)
