Failure to connect as shown in this diagram will damage this charger.

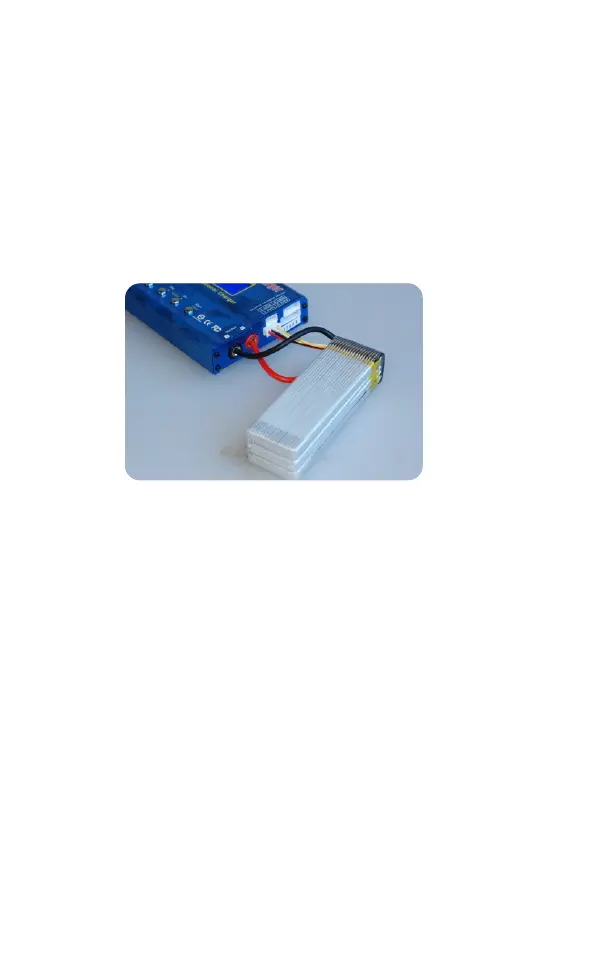

This diagram shows the correct way to connect your battery to the B6
charger while charging in the balance charge program mode only.
WARNING:
The main battery leads must be connected along with the balance lead connector
as shown before charging your battery ..
If using crocodile clips as shown in above diagram, make sure they are
unable to touch together!
WARNING:
LITHIUM POLYMER BALANCE CHARGE PROGRAM
CONNECTION DIAGRAM
