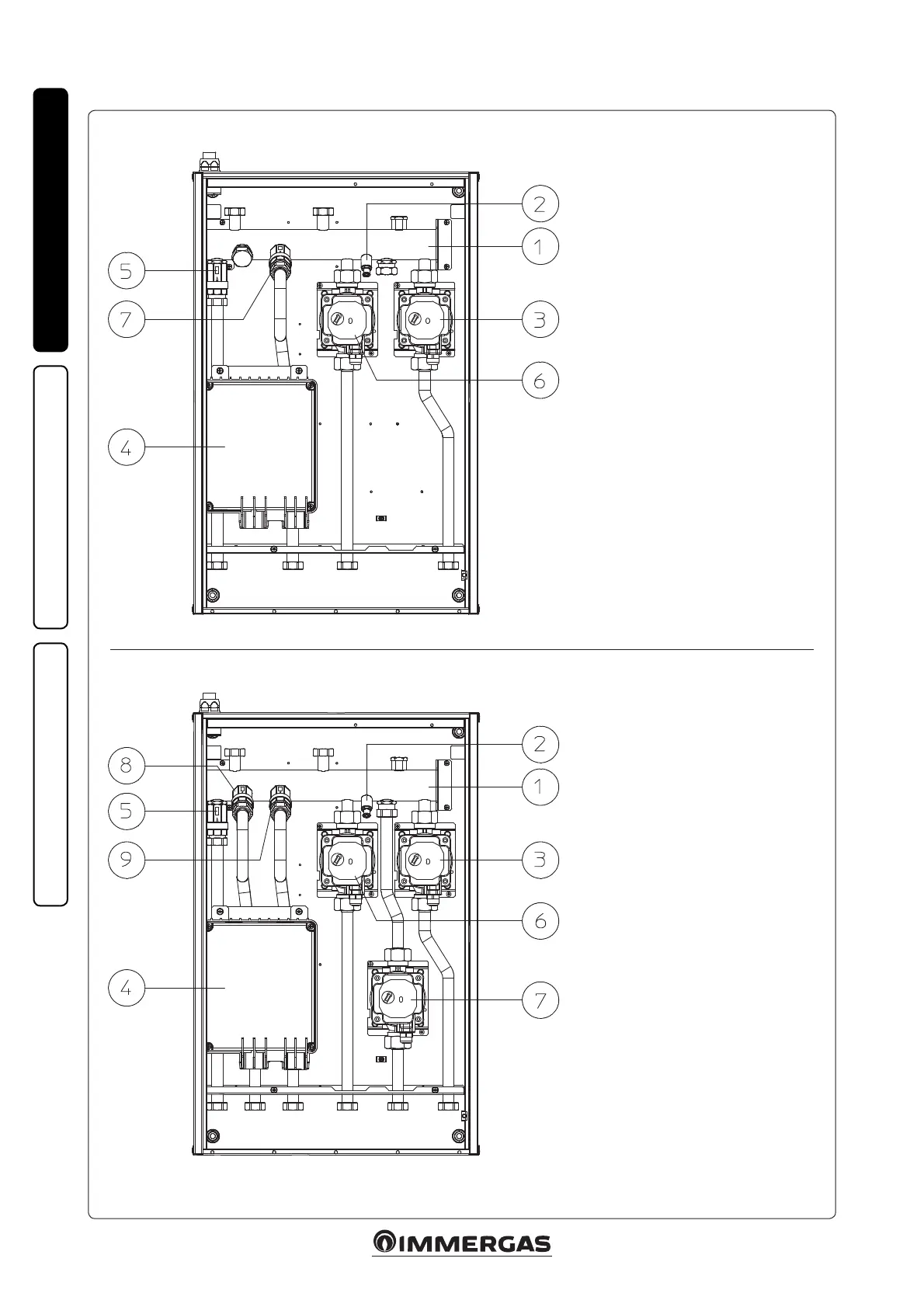

1.11 MAIN COMPONENTS.
DIM 2 Zone
DIM 3 Zone
Key:
1 - Hydraulic manifold
2 - Drain tting
3 - Zone 1 pump
4 - Electrical connection box
5 - Zone 1 ''Europa'' one-way valve
6 - Zone 2 pump
7 - Zone 2 ''Europa'' one-way valve
Key:
1 - Hydraulic manifold
2 - Drain tting
3 - Zone 1 pump
4 - Electrical connection box
5 - Zone 1 ''Europa'' one-way valve
6 - Zone 2 pump
7 - Zone 3 pump
8 - Zone 3 ''Europa'' one-way valve
9 - Zone 2 ''Europa'' one-way valve
