Immergas DIM 2 ZONE ERP - Main Dimensions

6
1-2
INSTALLERUSER
MAINTENANCE TECHNICIAN

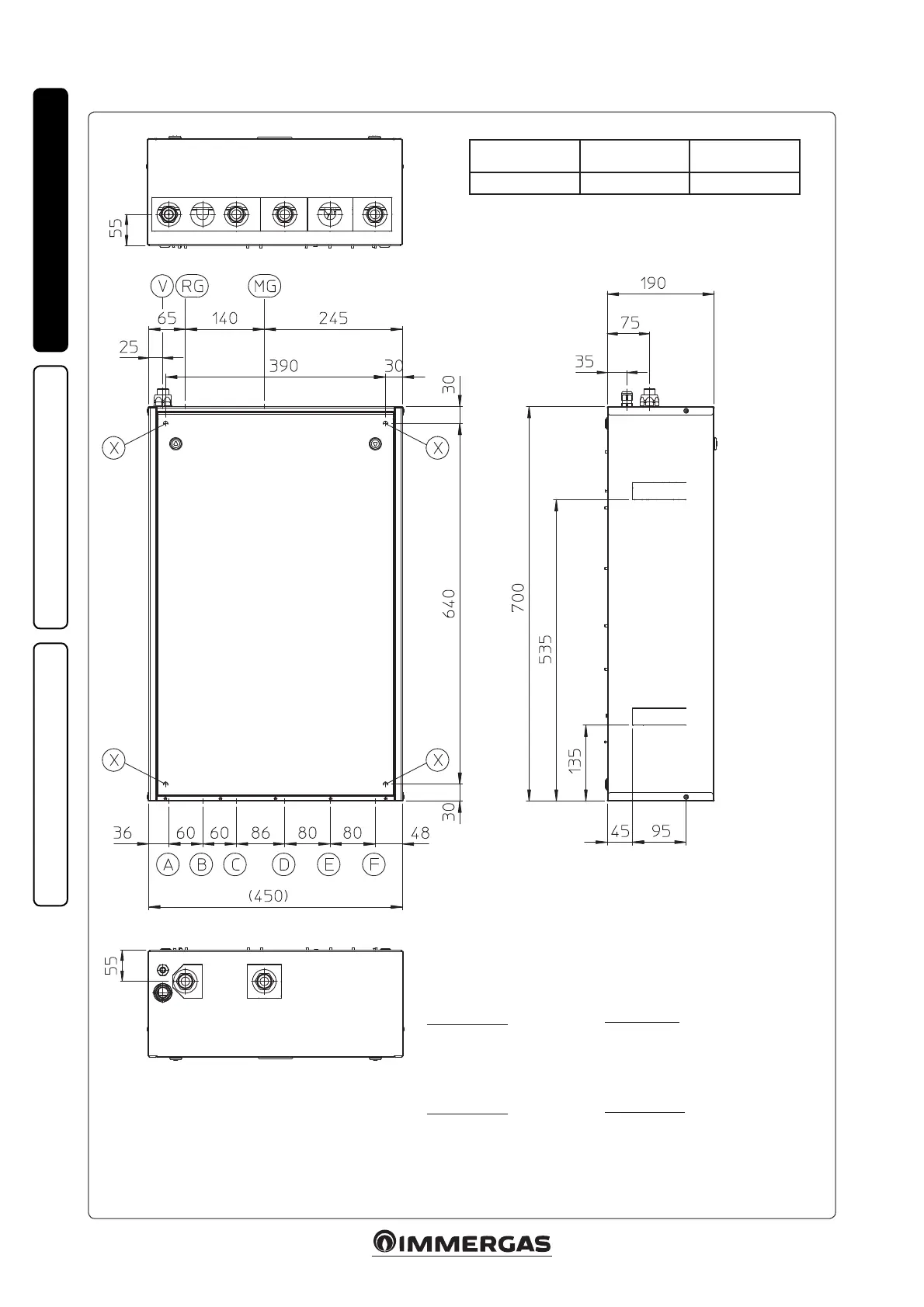

1.3 MAIN DIMENSIONS.
Height
(mm)
Width (mm) Depth (mm)
700 450 190
Key:
RG - Generator return (G 3/4”)
MG - Generator ow (G 3/4”)
V - Electrical connection
X - Holes for DIM wall-mounted
fastening
DIM 2 Zone ErP
A - Zone return 1 (G 3/4”)
C - Zone return 2 (G 3/4”)
D - Zone ow 2 (G 3/4”)
F - Zone ow 1 (G 3/4”)
DIM 3 Zone ErP
A - Zone return 1 (G 3/4”)
B - Zone return 3 (G 3/4”)
C - Zone return 2 (G 3/4”)
D - Zone ow 2 (G 3/4”)
E - Zone ow 3 (G 3/4”)
F - Zone ow 1 (G 3/4”)
DIM H-LT ErP
A - High return temperature (G 3/4”)
B - Low return temperature (G 1”)
E - Low ow temperature (G 1”)
F - High ow temperature (G 3/4”)
DIM H-2LT ErP
A - High return temperature (G 3/4”)
B - Zone 1 low return temperature (G 1”)
C - Zone 2 low return temperature (G 1”)
D - Zone 1 low ow temperature (G 1”)
E - Zone 2 low ow temperature (G 1”)
F - High ow temperature (G 3/4”)
