Immergas EOLO Mini - Dimensions and connections; EOLO Mini 24 kW Special; EOLO Mini 28 kW Special

2
STEMkW Special ed 01/08 EOLO Mini kW Special
Technical DocumentationTechnical Documentation
Legend:
G - Gas supply
AC - Domestic hot water ow
AF - Domestic cold water inlet
R - C.h. return
M - C.h. ow
V - Power supply connection

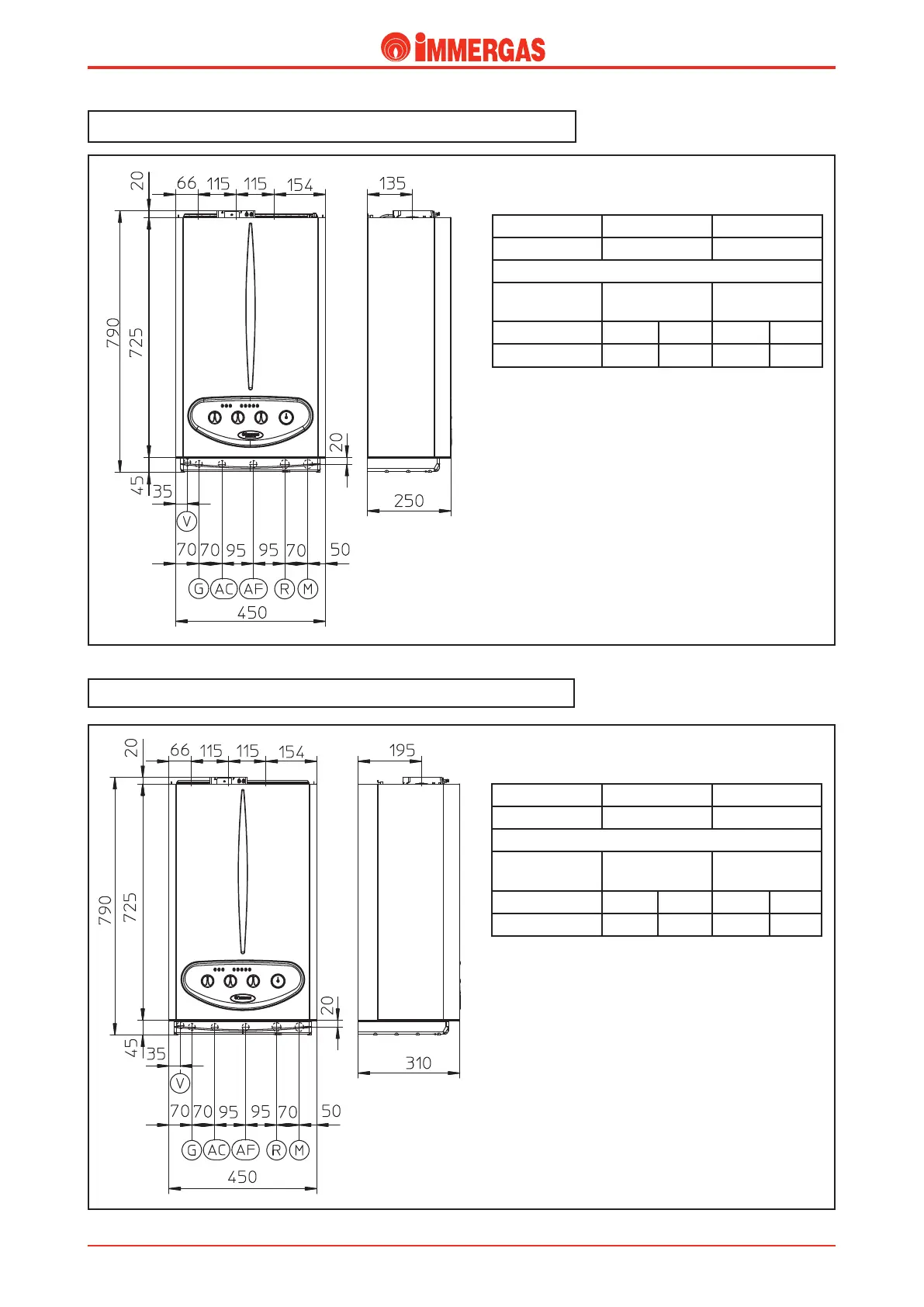

EOLO Mini 24 kW Special main dimensions and connections.
EOLO Mini 28 kW Special main dimensions and connections.
Legend:
G - Gas supply
AC - Domestic hot water ow
AF - Domestic cold water inlet
R - C.h. return
M - C.h. ow
V - Power supply connection
Height (mm) Width (mm) Depth (mm)
790 450 310
Connections
GAS
DOMESTIC
WATER
SYSTEM
G AC AF R M
3/4” 1/2” 1/2” 3/4” 3/4”
Height (mm) Width (mm) Depth (mm)
790 450 250
Connections
GAS
DOMESTIC
WATER
SYSTEM
G AC AF R M
3/4” 1/2” 1/2” 3/4” 3/4”
