STEMkW Special ed 01/08 EOLO Mini kW Special
Technical Documentation
Technical Documentation

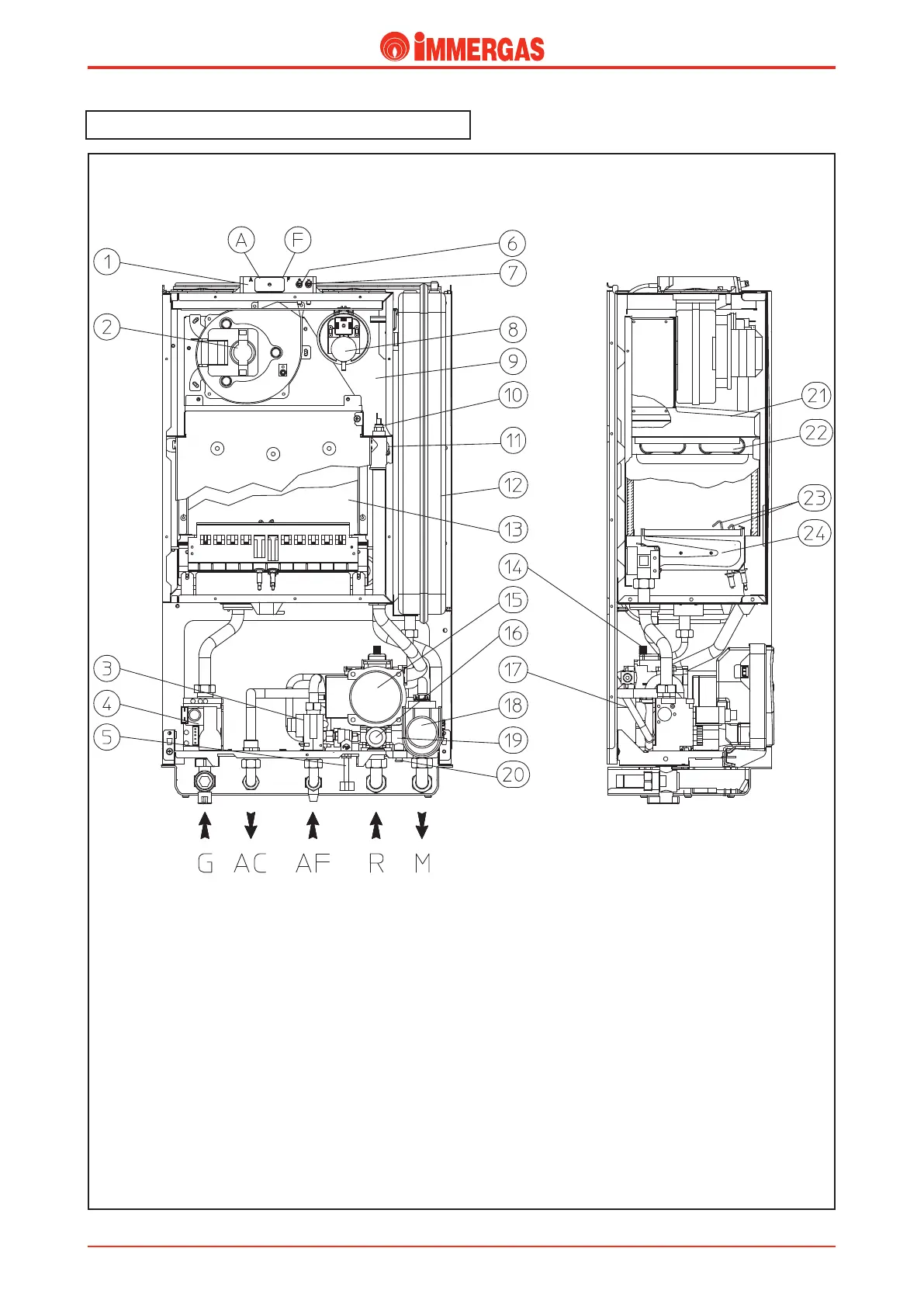

Legend:
1 - Sample point (A air) - (F ue)
2 - Fan
3 - D.h.w. ow switch
4 - Gas valve
5 - Filling valve
6 - Positive signal pressure point
7 - Negative signal pressure point
8 - Flue pressure switch
9 - Sealed chamber
10 - Flow probe
11 - Safety thermostat
12 - System expansion vessel
EOLO Mini 24 kW Special main components.
13 - Combustion chamber
14 - Automatic vent valve
15 - Boiler pump
16 - 3-bar safety valve
17 - D.h.w. heat exchanger
18 - 3-way valve (motorized)
19 - Automatic by-pass
20 - Draining valve
21 - Flue hood
22 - Primary heat exchanger
23 - Ignition and detection electrodes
24 - Burner
Note: Coupling system (OPTIONAL)
