19
STMiN3E ed 09/11 MINI NIKE 3 E
Technical Documentation
Technical Documentation
7
4
5
6

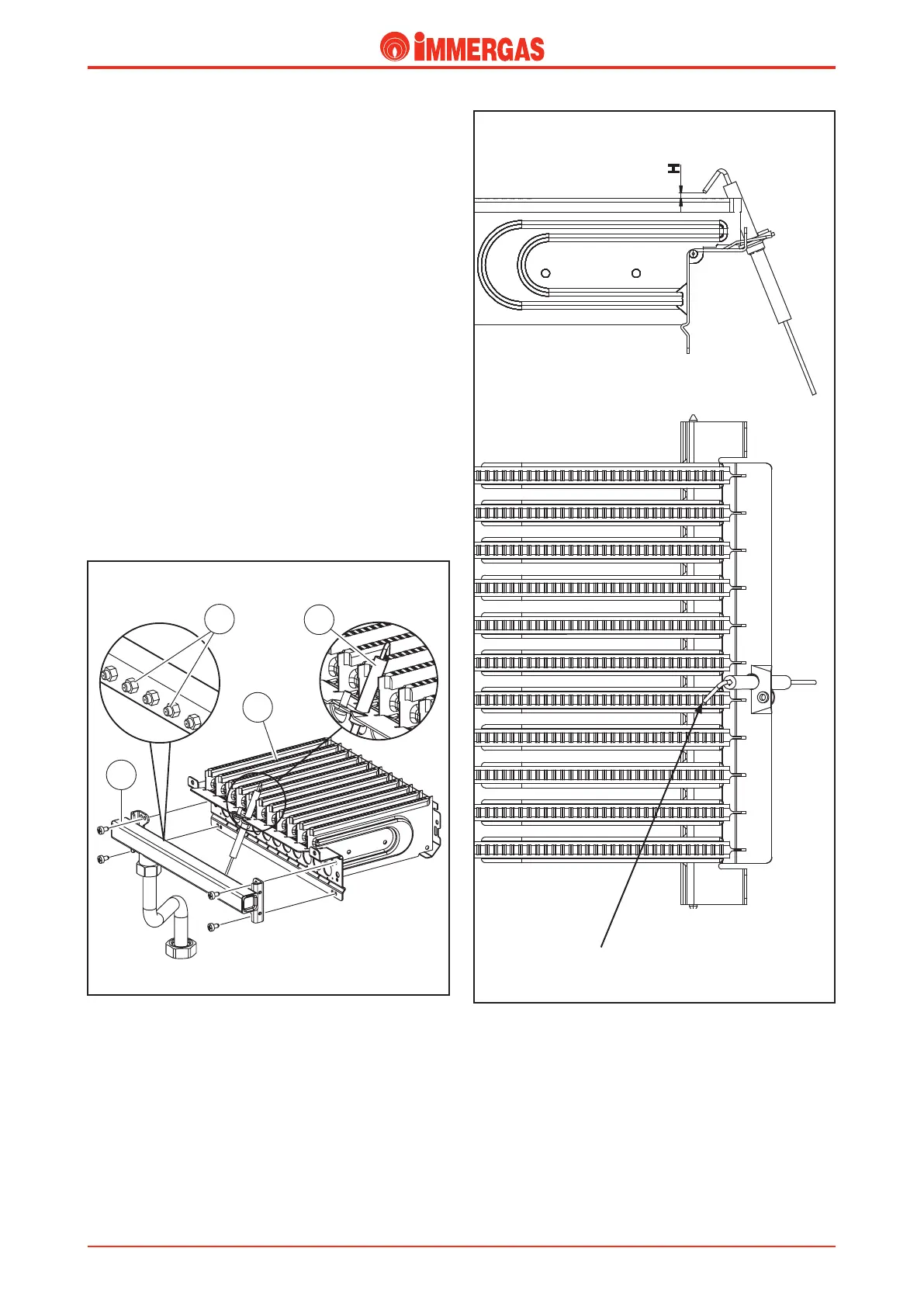

Burner
e burner is made up from 11 horizontal Venturi pipes (5)
into which the gas is injected by just as many nozzles (6)
mounted on the relevant collector (7), whose diameter varies
according to the type of gas used (see technical data).
Ignition takes place thanks to an integrated P.C.B. that controls
the ignition and detection electrode (4).
Ignition and detection electrode (4)
In the ignition mode, it is controlled by the integrated P.C.B.
that causes an electric spark between its ends and the surface
of the burner on the contact of which the air-gas mix ignites.
Once the burner is on, it detects ame presence on the burner
allowing the integrated P.C.B. to conclude the ignition cycle
and to vary the gas pressure as required.
It is positioned on the front of the burner in correspondence
with the central ramp.
Note: for correct ignition and detection of the boiler always
respect the quotes stated in the gure here to the right.
Required height:
H min = 2.5 mm
H max = 4 mm
Optimal position for the electrode for
correct detection
