SmartDock Initial Set-Up
and Adjustment

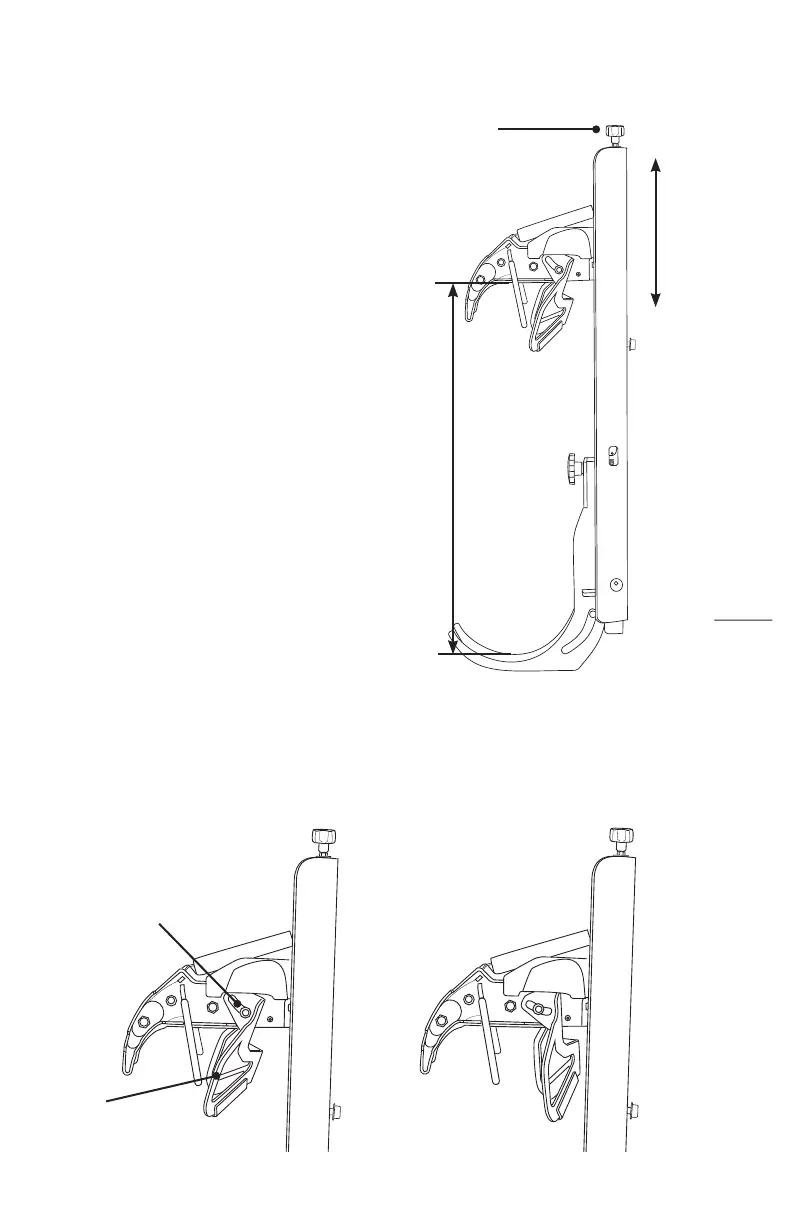

Height
Adjustment
Knob
Step 1. Raise SmartDock “Head”
Before installing the cylinder into the SmartDock
for the first time, verify that the SmartDock head is
at least as high or slightly higher than the length
of the SCBA bottle as measured from the rounded
bottom to the rounded top of the cylinder. Use
caution when working with the SmartDock head to
avoid pinch points.
Note: Turning the height adjustment
knob clockwise raises the head and
counter-clockwise lowers the head.
Cylinder Height + 5-6 mm
Adjustment Direction
Step 2. Adjust “Wing”
Using a T45 Torx Plus key, loosen the socket head
cap screws on both sides that hold the wing
adjustment and adjust the wing to its most
rearward position. It is only necessary to loosen
the button head cap screws about 1/4 turn.
Wing
Socket Head Cap Screw
7
SmartDock
®
Installation | User’s Guide
