21
ELECTRICAL CONNECTION (220-240 VOLTS)
The appliance is supplied with a standard 7.5 Amp
service cord terminated by a 3-pin plug for
connection to a standard 10 Amp household
socket. The electrical supply is required to power
the electronic ignition system.
NOTE: It will be necessary for servicing purposes
to disconnect the electrical power supply. The
power point should therefore be accessible after
the appliance is installed, as specied in the local
wiring regulations.

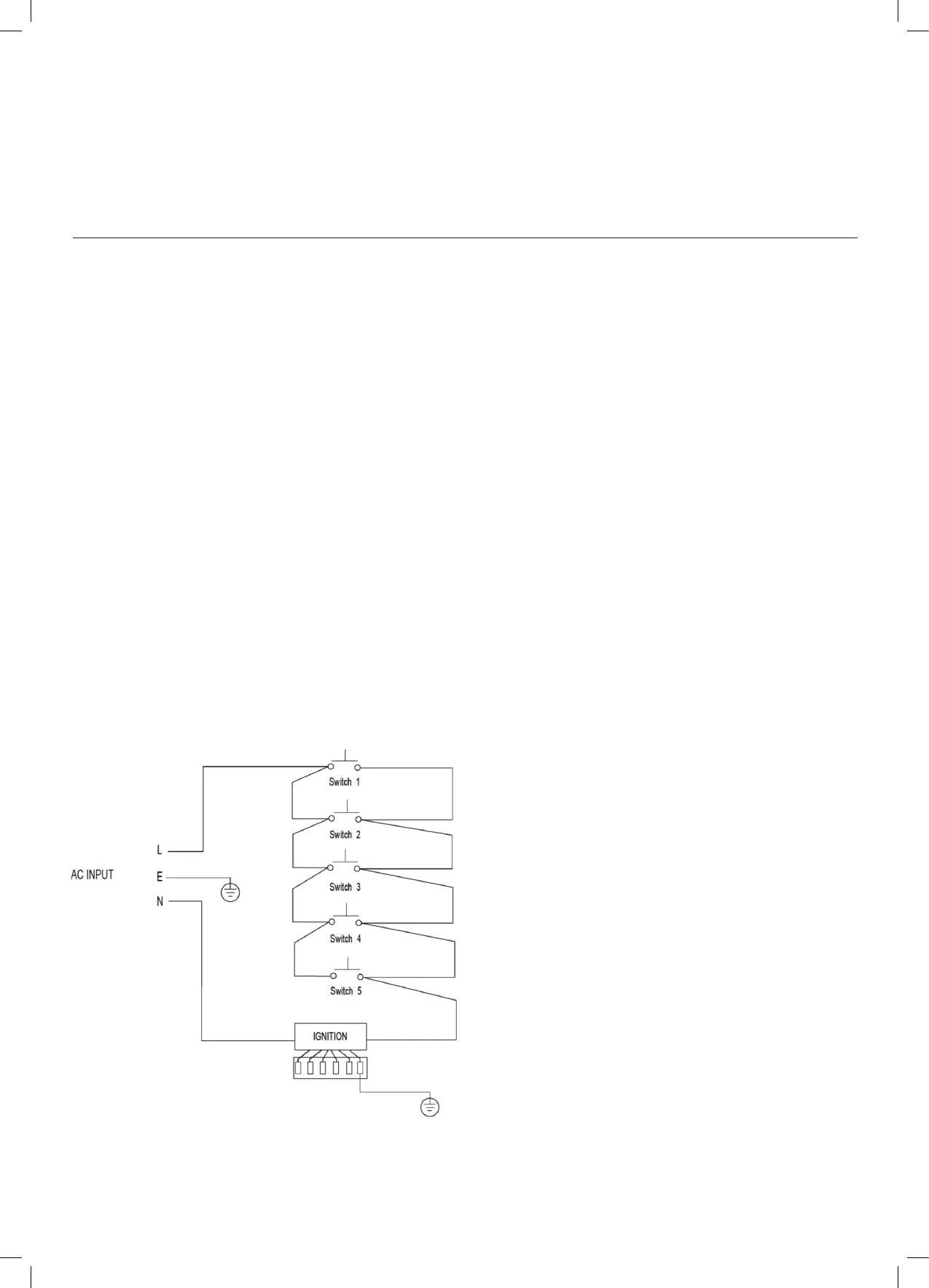

Diagram 1 is a schematic of the wiring in the
appliance.
Diagram 1 ICG905W
IMPORTANT:
• This appliance must be earthed.
• This appliance is designed to be connected to
a 220-240V, 50Hz-60Hz AC electricity supply.
• The wires in the mains lead are coloured in
accordance with the following code:
1. Green/Yellow = Earth
2. Blue = Neutral
3. Brown = Live
IMPORTANT: The wire which is coloured
Green/Yellow must be connected to the terminal
which is marked with the letter E or by the Earth
symbol.
WARNING: When the power cord is damaged it
must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to
avoid a hazard.
Electrical Connection
